Interior Lighting Relay: Locations

Fuse/Relay Location and Identification

Electrical Distribution Box Behind the Glove Compartment

Location:

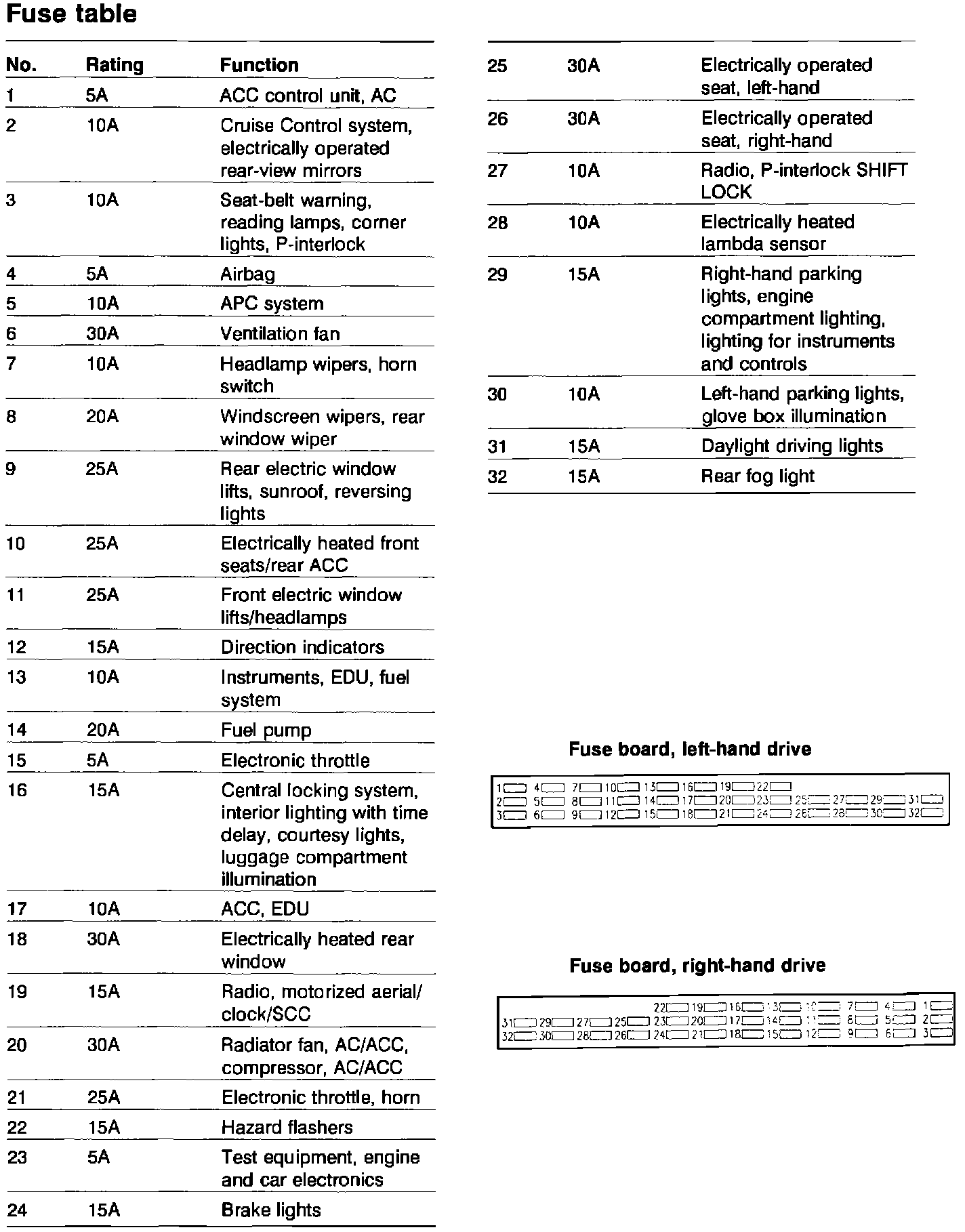

Fuses:

Relays

Relay Function (Component Number)
A Seat-belt/ ignition key warning (82)
B1 AC/ACC pressure switch (433)
B2 Intermittent operation of rear window wiper (83A)
C Horn (68)
D Fuel pump (102)
E AC/ACC cooling fan and compressor (156)
F Reversing light (405)
G Ignition switch (21)
H Engine management system (229)
I Electrically heated rear window (113)
J Electronic throttle actuator ETS (377)
K Extra fog lights (107)
L Intermittent windscreen wiper operation (83)
M Interior lighting with time delay (151)
N Direction indicators (23)
O Daylight driving lights (174)
