Safety Recall 708: Inspection of SRS ECM for damage caused
by moisture
Background
On occasions, moisture in the airbag system control module can cause electrical disturbance and turn on the SRS warning lamp. If moisture or dried damp spots are found on the control module, it must be changed. Otherwise, it is only necessary to fit the cover
Cars affected
Saab 1992-1994 9000 models within VIN Serial No.
Ranges: N1OOOOO1 - R1032466
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc.
A VIN Status List will be supplied to you prior to any owner notification. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership.
Please check your DCS/IRIS On-Line Recall/Campaign Inquiry to check for open campaigns.
Material:
50 43 807 cover
50 44 060 Kit containing:
^ control module
^ cover, P/N 50 43 807
^ installation instructions for cover
Tools
Numeral 8 Punch: 02 97 713
This tool can be ordered directly from Kent-Moore at 1-800-345-2233.
Warranty/Time Information:
IMPORTANT:
If active moisture is evident on the control module, and the customer has complained of a coolant smell in the car, replace the heater core, P/N 50 46 362. Bear in mind that dried coolant on the control module is not evidence of an active leak.
NOTE:
All parts replaced as a result of this recall will be requested for return to the Warranty Parts Testing Department, Norcross, GA 30093.
ALTERNATIVE 1 (LEAKAGE):
FAILED OBJECT: 10708
FAULT/REASON: 03
LOCATION: 0
WARRANTY TYPE: 05
REPAIR/ACTION: 01
Recall Action Code (RAC): 3
Labor Operation: 10708
Time: 0.8
P/N 50 44 060 Qty: 1
Kit (Cover, ECM)
Heater Core (If needed):
Labor operation: 85422
Time: 1.7
P/N 50 46 362 Qty.:1
ALTERNATIVE 2 (No Leakage)
Failed Object: 10708
Fault/Reason Code: 66
Location Code: 0
Warranty Type: 05
Repair/Action Code: 10
Recall Action Code (RAC): 1
Labor operation: 10708
Time: 0.8
P/N 50 43 807 Qty.: 1
Cover
MODIFICATION INSTRUCTION
Safety Recall 708: Inspection of SRS EMC for damage caused by moisture
Background
On occasions, moisture in the airbag system control module can cause electrical disturbance and turn on the SRS warning lamp. If moisture or dried damp spots are found on the control module, it must be changed. Otherwise, it is only necessary to fit the cover.
Cars affected
Saab 9000 M92-94 within VIN interval N1000001 - R1032468
Owner Notification
As much as possible, owners of affected vehicles will be notified by Saab Cars USA, Inc.
A VIN Status List will be supplied to you prior to any owner notification. If you do not receive a Status List, this is an indication that no affected vehicles have been sold to/by your dealership. Cars in your Inventory must be remedied prior to retail delivery.
Please check your DCS/IRIS On-Line Recall/Campaign inquiry to check for open campaigns.
Parts required
50 43 807 Cover
50 44 060 Kit containing:
^ control module
^ cover, P/N 50 43 807
^ installation instructions for the cover
Tools Required
Numeral "8" punch: 02 97 713
This special tool is available for ordering directly from Kent-Moore at 1-800-345-2233.
Procedure
Before taking any measures, inspect box A4 (M92 US/CA) or box C2 (M93-94) on the modification identity plate. If the box has not been marked, continue as described below:
1. Make sure the radio's theft protection code is available and disconnect the negative battery cable.
If you have lost the radio code, you can easily obtain it by accessing DCS or IRIS and using the RADIO CODE INQUIRY under the Sales and Warranty screen.

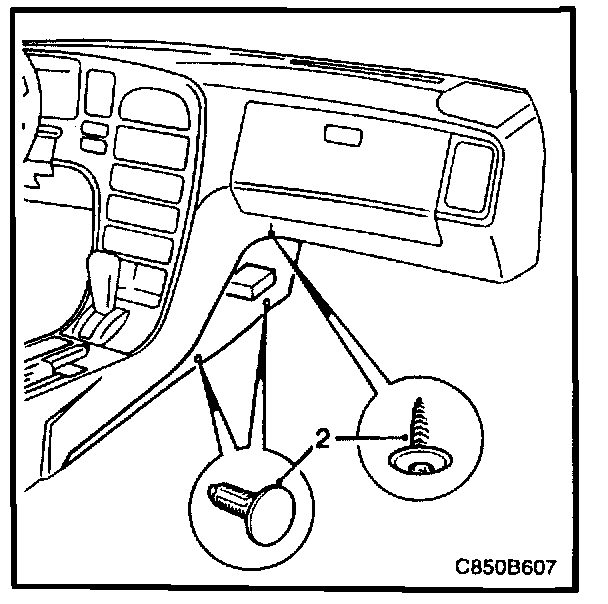

2. Remove the carpet on the passenger side of the center console. On cars with passenger airbag, first remove the carpet trim from the fusebox (5 push pins).
3. Unplug the control module.
4. Remove the control module.
5. Inspect the control module by looking for small green, white or, if not dried, transparent spots.
Look carefully at the screws that secure the plastic cover of the module to its metal base. Moisture can get trapped and dried in the recess for the screws.
No signs of leakage: Go to step 6.
Leakage: Change the control module. Then, go to step 6.
Important:
If active moisture is evident on the control module, and the customer has complained of a coolant smell in the car, replace the heater core P/N 50 46 362. Bear in mind that dried coolant on the control module is not evidence of an active leak. Replaced heater cores should be returned to Saab Cars USA, Inc. where they will be inspected and tested.
Inspect electrical connection for corrosion. Correct as necessary.
6. Fit and connect the control module.
Tightening torque 9 Nm (6.6 lbf ft).

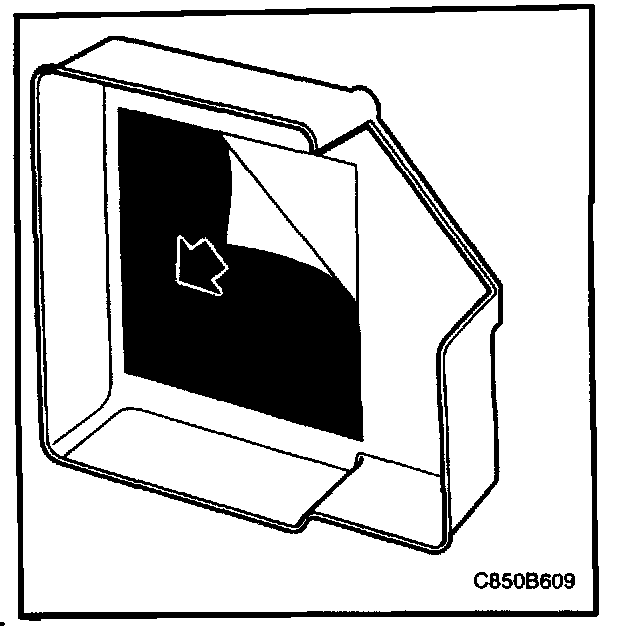

7. Remove the plastic backing on the double-sided adhesive tape inside the cover, see illustration.
8. Position the cover over the control module, see Illustration.
Important:
The arrows on the control module and the cover must be pointing in the same direction.
Press the cover onto the control module so that the double-sided adhesive tape fastens properly.
9. Fit the carpet on the passenger side of the center console and carpet trim from the fusebox, if removed.
10. Connect the negative battery cable, adjust the clock and program the radio code where necessary.
11. Connect the diagnostic tool and clear any diagnostic trouble codes present in the system.
12. Start the car and make sure the SRS lamp comes on for about 6 seconds and then goes out. Disconnect the diagnostic tool.
Marking the campaign plate
After taking these measures, box A4 (M92 US/CA) or box C2 (M93-94) on the campaign plate must be marked. Mark the box with a numeral "8" (Saab Special Tool P/N 02 97 713). If needed, order this special tool directly from Kent-Moore at 1-800-345-2233.
Warranty/Time information
See separate information.
