Parts and Warranty Information

PARTS REQUIRED:

Cable terminal 91 20 684
Wire-splice connector 95 60 012

Approx. 100 mm of white insulated 18 ga. electrical wire (0.75 mm 2 cross-section)

Please order parts VOR as you need them for individual cars. As supplies are limited, please do not order any extra of these parts.

Warranty Information:

A claim for this campaign is to be submitted with the following information:

Failure Code: 10286-62-0-05-05.
Operation No.: 10286 for 0.3 hrs. Includes repair and administrative time.

RAC =3
Your DCS Table must be updated with the following information:

Failed Part Code: 10286 Recall 286 Wire Brake Light
Operation # 10286 for 0.3 hrs.
9000 only
Trans. type = B
Engine type = 9
Begin and End Year = 94

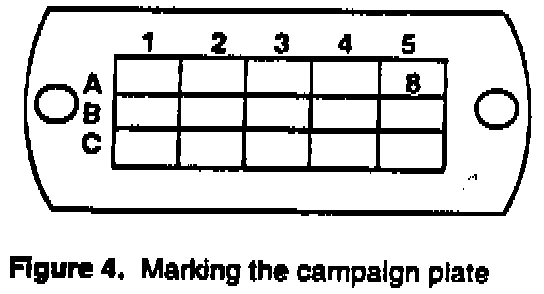

After the car has been modified, mark the campaign plate in position A5 using a numeral "8" (Saab Special Tool P/N 02 97 713).
