Fitting Vacuum Pressure Switch, 4 Cylinder

1. Lift the rubber strip on the bulkhead panel flange and hang it on the pressure switch bracket.

2. Plug the connector into the pressure switch.

3. Use a cable tie (79 71 864) to secure the wiring harness to the vacuum pump bracket.

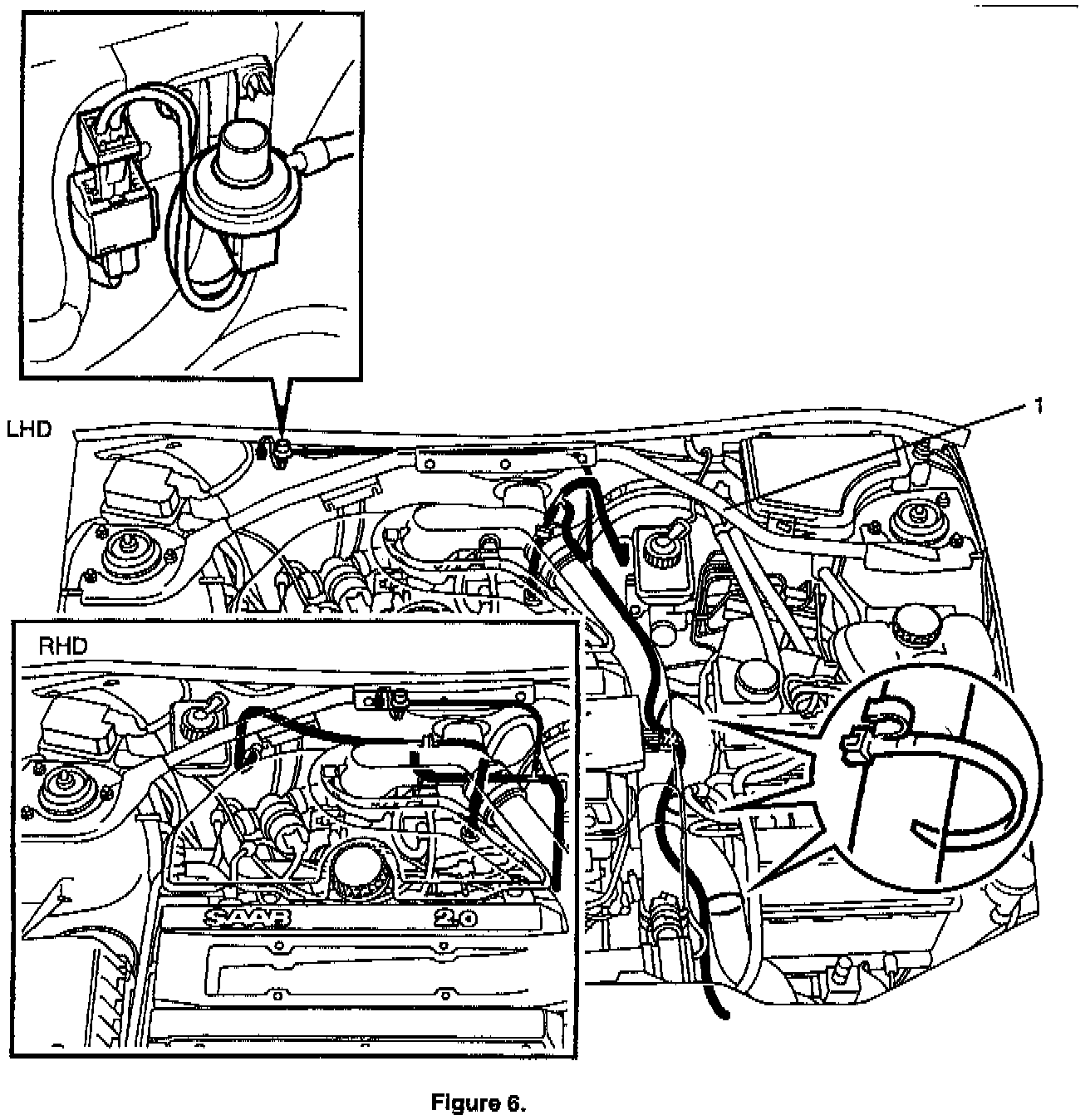

4. Use a cable tie (79 71 864) to secure the vacuum switch hose to the stabilizer bar (item 1, Figure 6).
