Fitting Vacuum Pressure Switch, V6

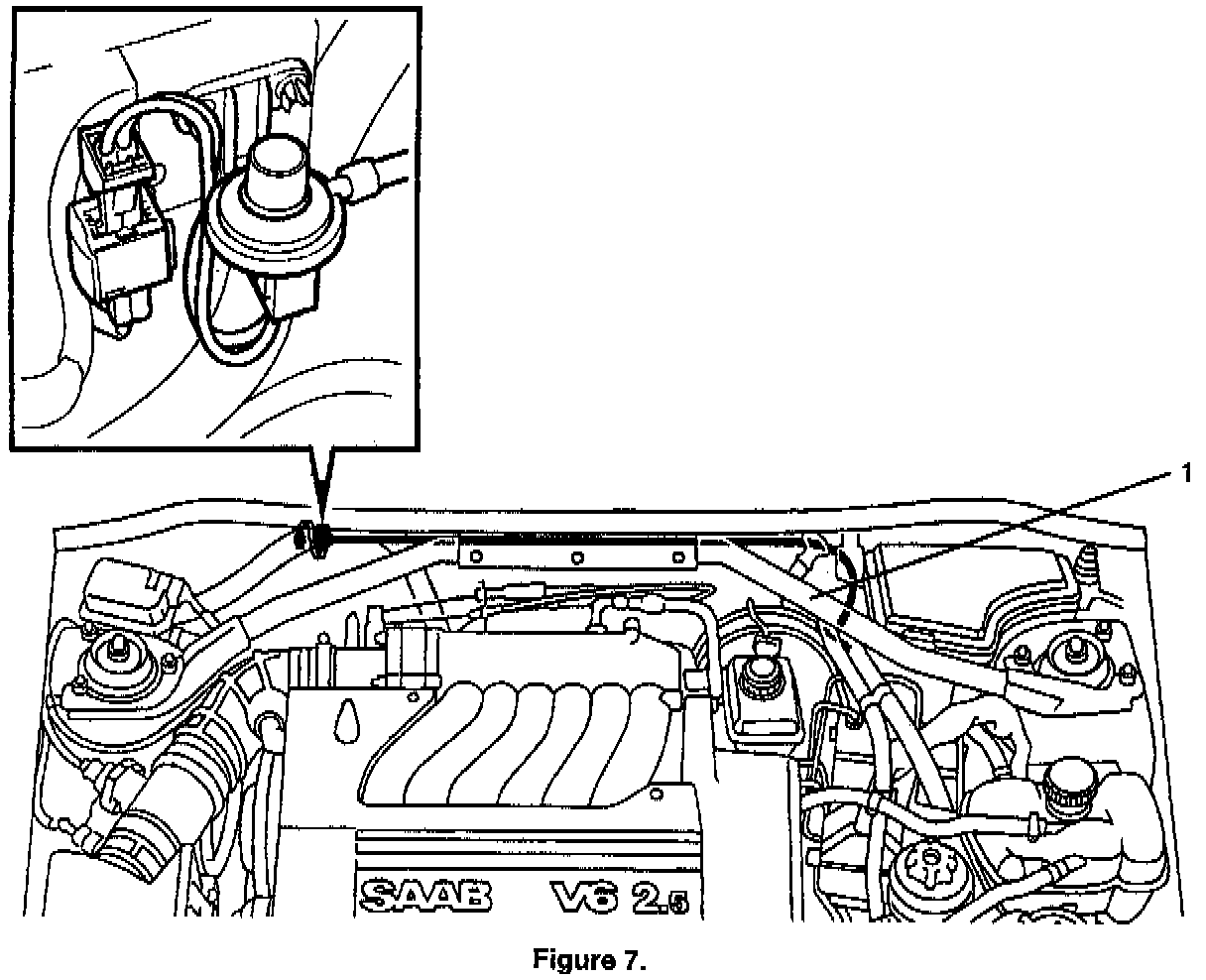

1. Remove the fire wall seal for access and fit the switch bracket (see Figure 7).

2. Plug the vacuum switch connector into the wire harness and secure the wires to the stabilizer bar (item 1, Figure 7) on the firewall using two cable ties (79 71 864).
