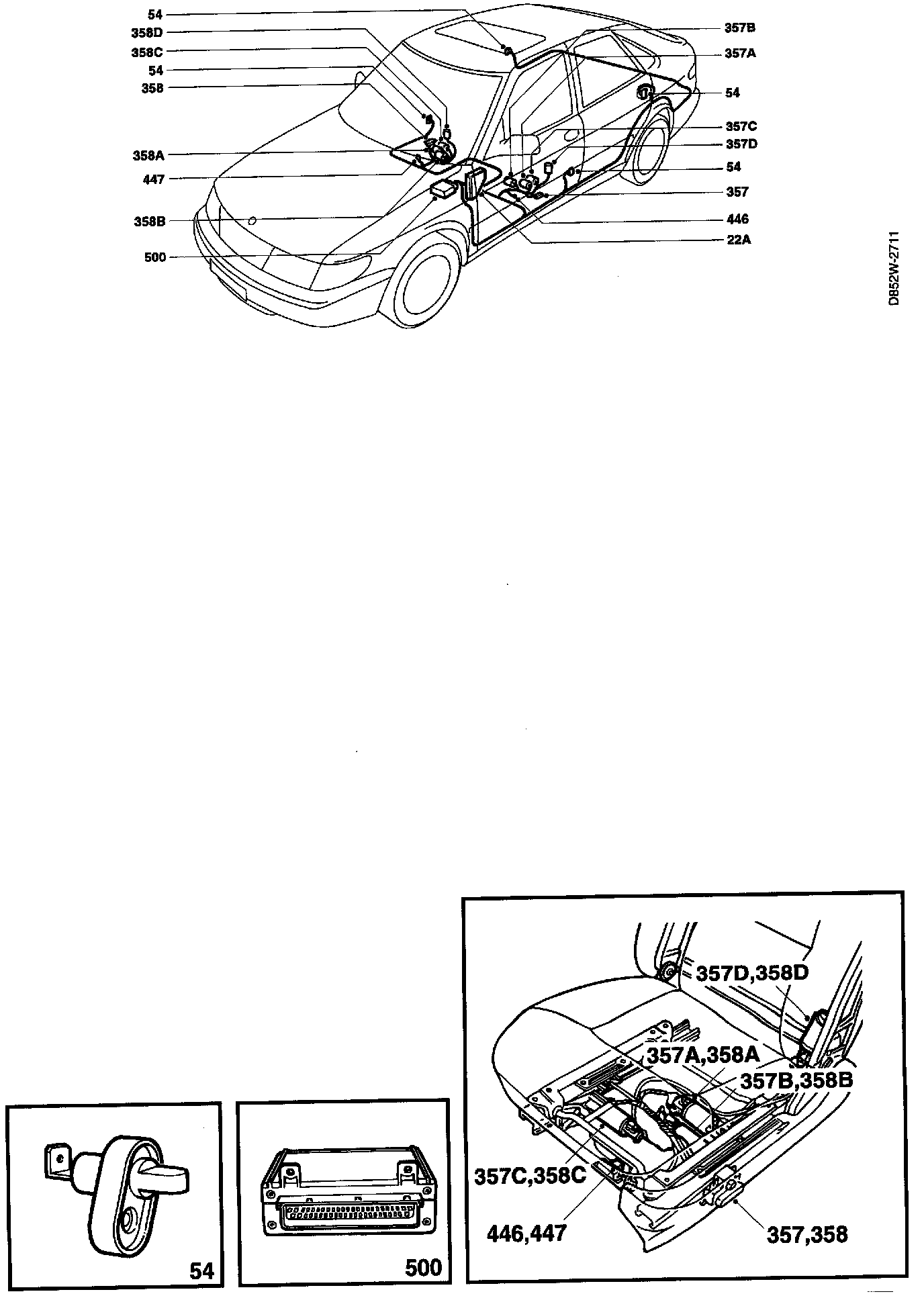

Electrically Adjustable Front Seats

Electrically Adjustable Front Seats:

22A Main fuse board in the dashboard.
54 Door switches at bottom of door openings.
357 Switch for electrically adjustable driver's seat
357A Electric motors, driver's seat, under the D seat.
358 Switch for electrically adjustable passenger seat.
358A Electric motors, passenger's seat, under the seat.
446 Relay, for electrically adjustable driver's seat.
447 Relay, for electrically adjustable passenger's seat.
500 ICE control module
LHD:above main relay board in dashboard
RHD:behind main relay board in dashboard

8-pin connectors
H8-2 Under the left-hand seat.
H8-2 Under the right-hand seat.
H8-8 Under the driver's seat in the middle of the seat cushion.
H8-9 Under the passenger's seat in the middle of the seat cushion.
33-pin connector
H33-3 Blue connector on the bracket below the left-hand A pillar.

Grounding Points
G14 Grounding point, left-hand front seat member, under the seat.
G24 Grounding point, right-hand front seat member, under the seat.
