Connector Locations
Connectors and Grounding Points (Part 1 Of 14):
Connectors and Grounding Points (Part 2 Of 14):
Connectors and Grounding Points (Part 3 Of 14):
Connectors and Grounding Points (Part 4 Of 14):
Connectors and Grounding Points (Part 5 Of 14):
Connectors and Grounding Points (Part 6 Of 14):
Connectors and Grounding Points (Part 7 Of 14):
Connectors and Grounding Points (Part 8 Of 14):
Connectors and Grounding Points (Part 9 Of 14):
Connectors and Grounding Points (Part 10 Of 14):
Connectors and Grounding Points (Part 11 Of 14):
Connectors and Grounding Points (Part 12 Of 14):
Connectors and Grounding Points (Part 13 Of 14):
Connectors and Grounding Points (Part 14 Of 14):
List of components
4 Starter motor, on the rear of the engine.
20 Ignition switch, on the right-hand side of the steering column
22A Fuse board, behind the cover in the glove compartment

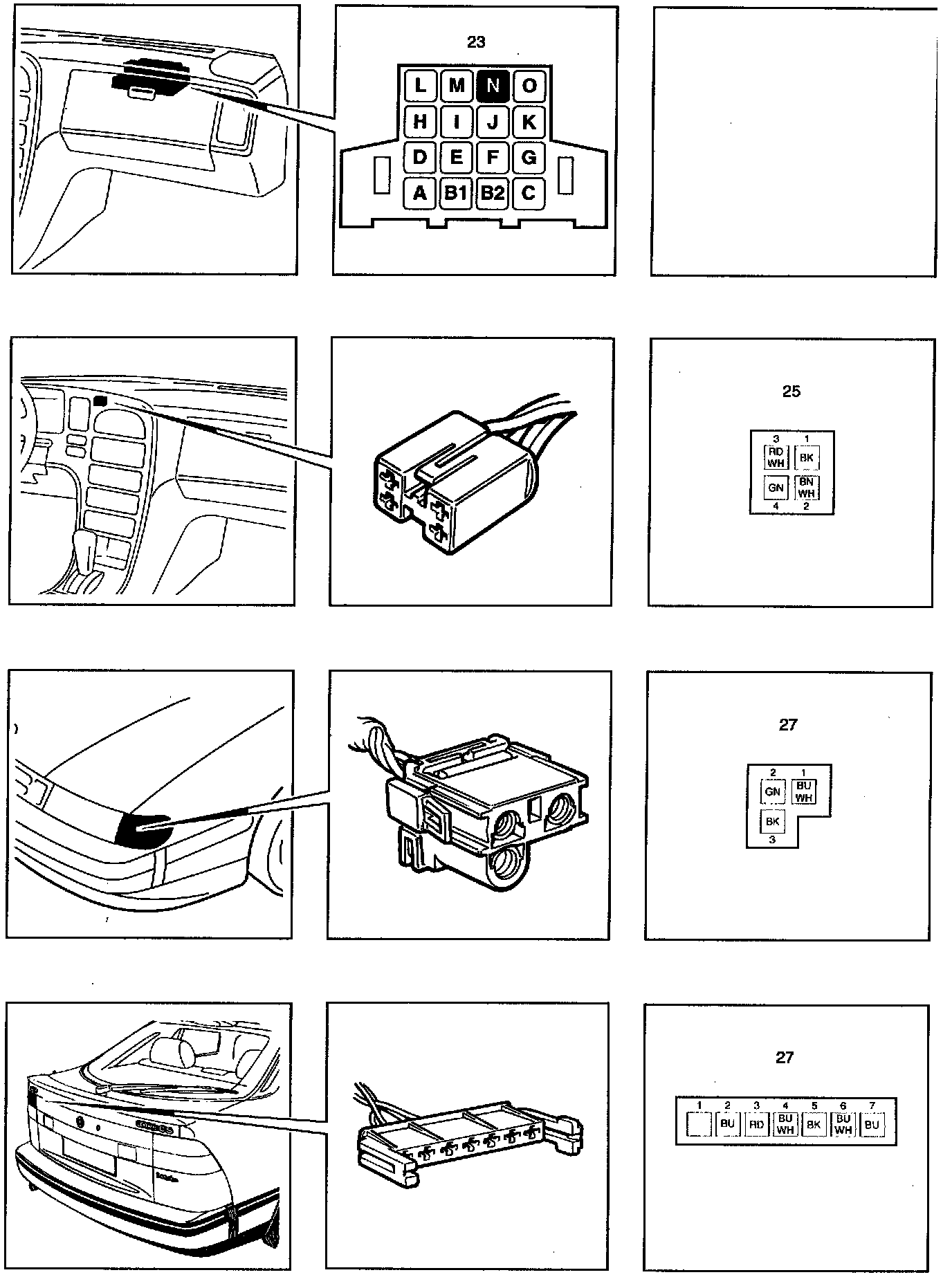

23 Flasher relay
25 Switch, hazard flashers

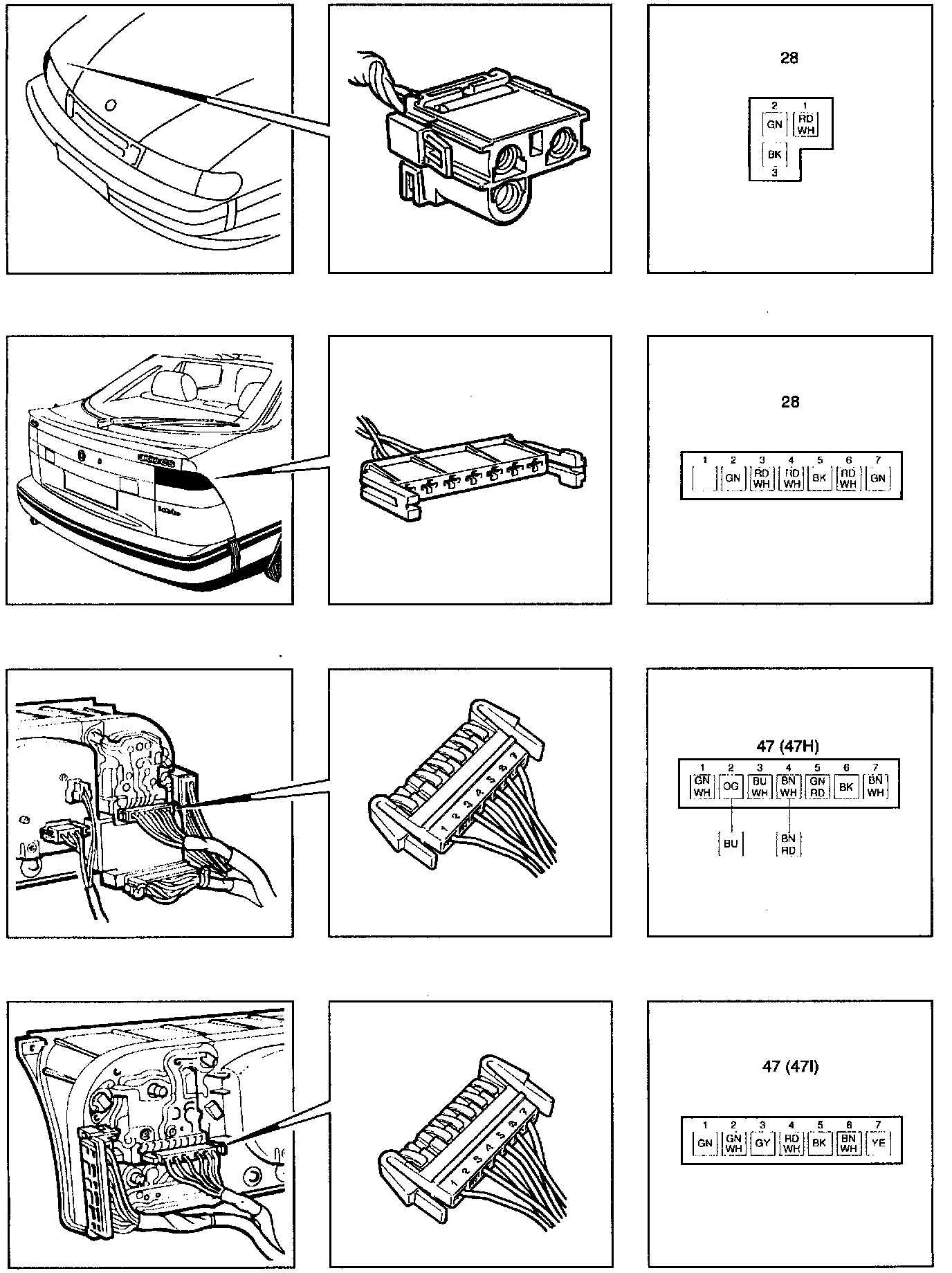

27 Direction indicators, on the left-hand side 28 Direction indicators, on the right-hand side 47 Combined instrument

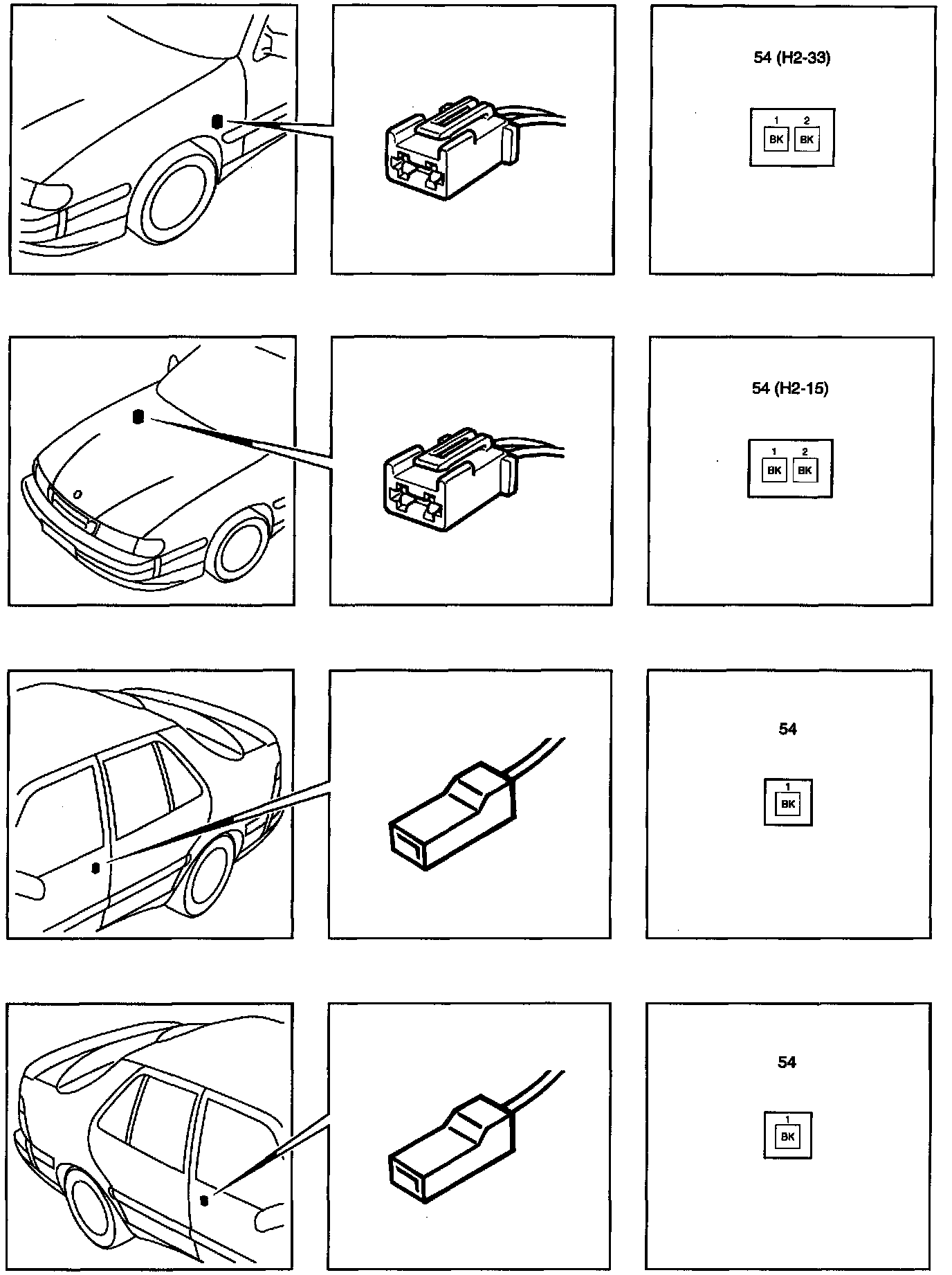

54 Door switches, cabin illumination

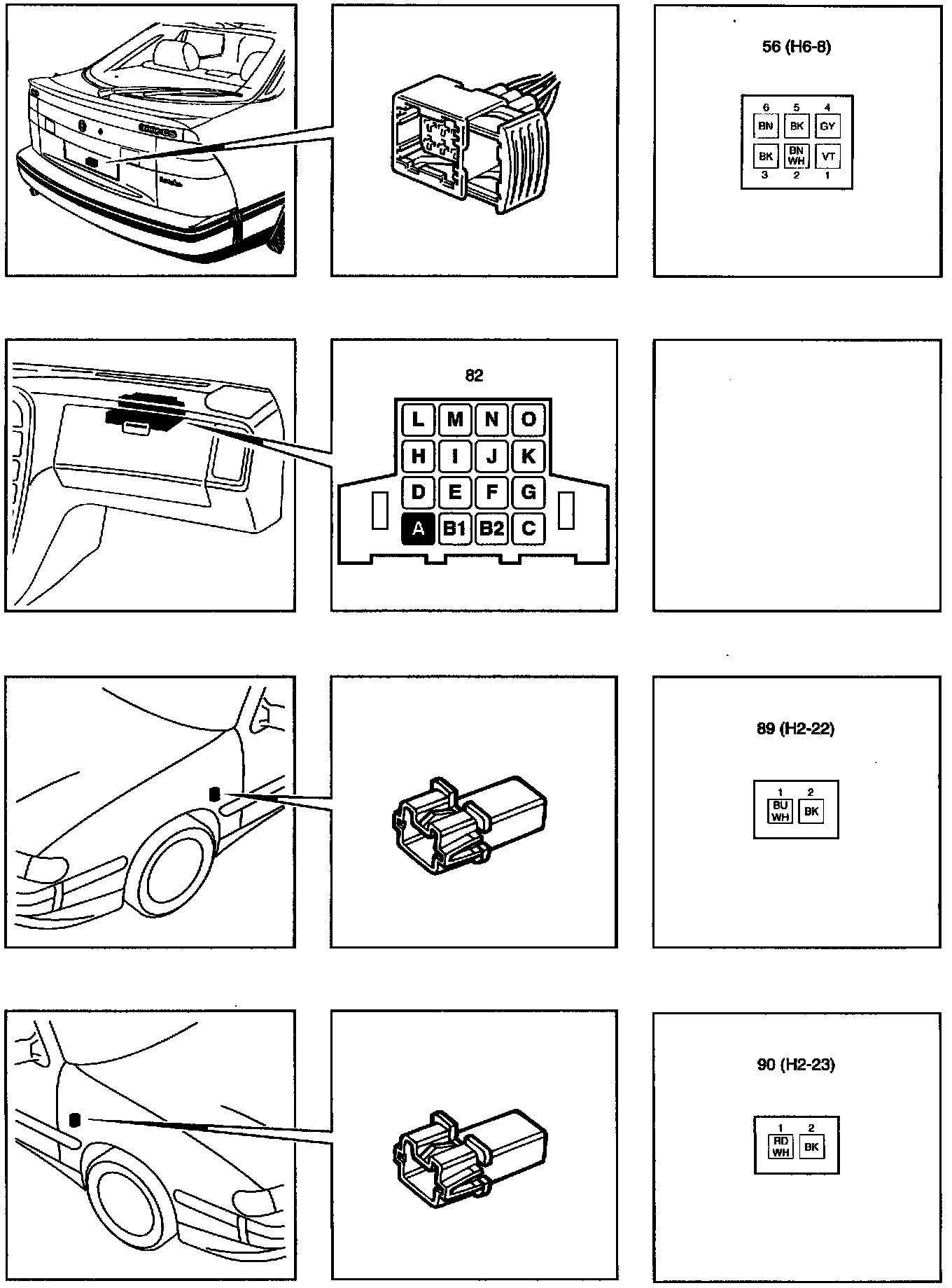

56 Luggage compartment illumination switch
82 Relay, seat-belt/ignition key warning, US, CA, ME, FE (LHD)
89 Side direction indicator, left-hand
90 Side direction indicator, right-hand

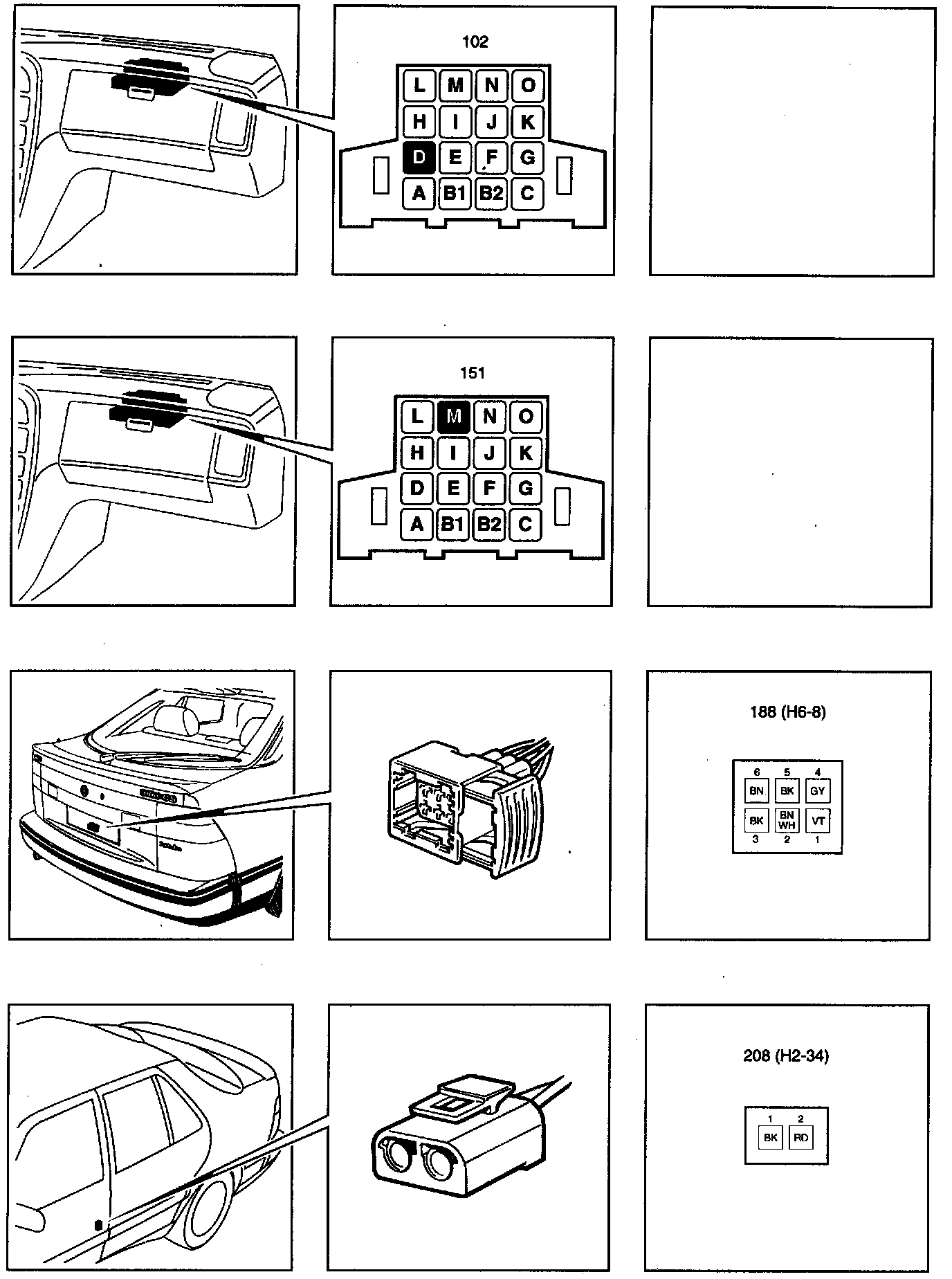

102 Fuel pump relay
151 Time-delay relay, interior lighting with time delay
159 Distribution terminal 415, in the electrical distribution box behind the glove compartment
175 Control module, central locking system
188 Motor, central locking system, tailgate
208 Door indication
230 Distribution terminal 30, in the electrical distribution box behind the glove compartment
239 Transmission range switch, automatic transmission
258 Connector, trailer lighting
274 Microswitch in driver door, beside the lock cylinder in the driver door
275 Theft alarm horn, in the left-hand wheel housing behind the wing liner
289 Theft alarm control module, behind the glove compartment
305 Theft alarm LED, in the speaker grille on the driver side
348 Scan tool diagnostics data link connector, EDU, Automatic Climate Control (ACC)
388 Switch, tailgate opening
430 Control module, Saab TRIONIC engine control system
435 Microswitch, passenger door
451 Glass breakage sensor, in the interior lighting panel

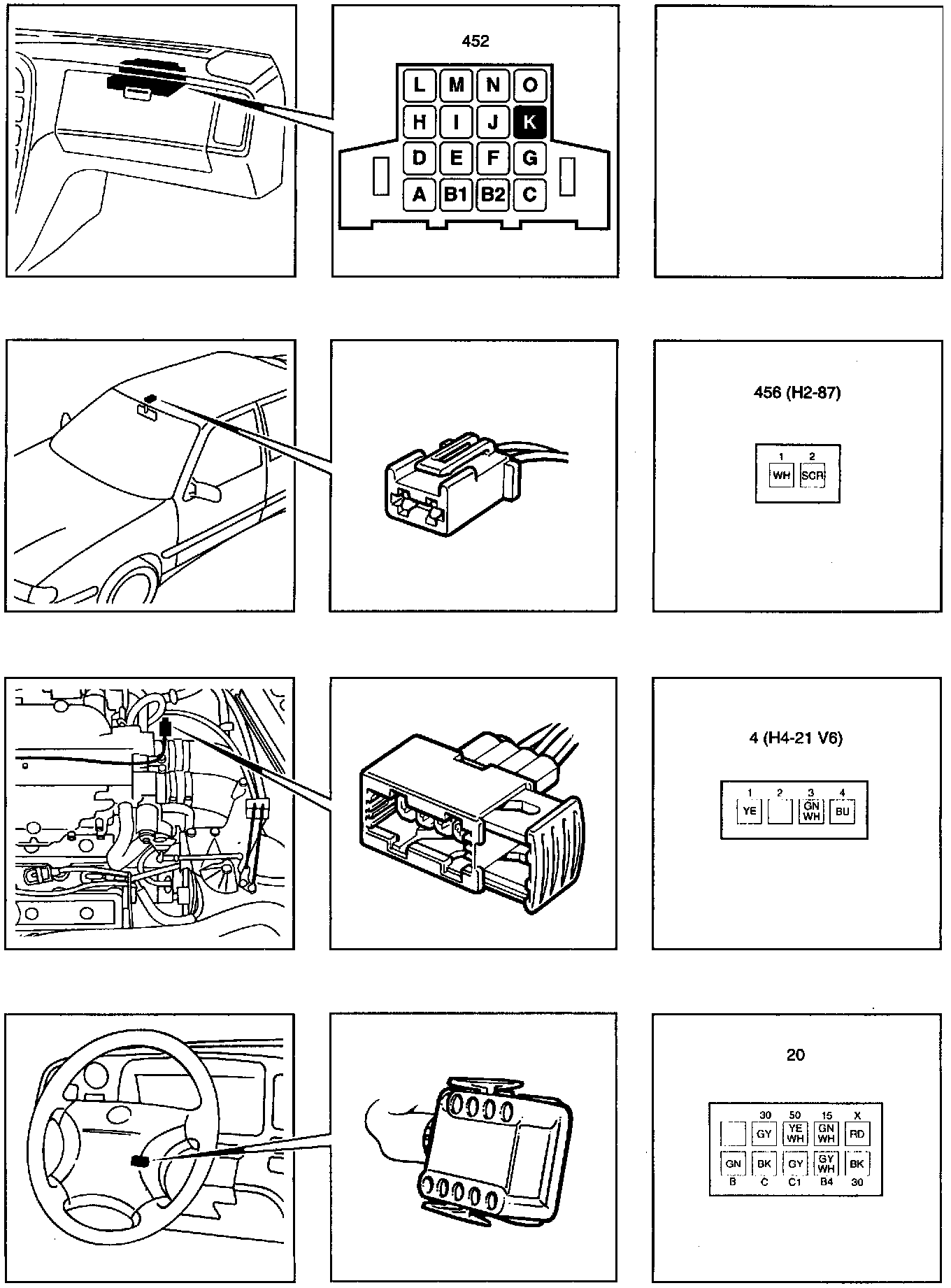

452 Relay, starter motor
456 Antenna, remote transmitter, in the rear-view mirror
510 Motronic 2.8.1 control module
Grounding points
G6 Distribution terminal, negative
G8 Facia grounding point, by the left-hand front speaker socket
G24 Grounding point, front right-hand seat member

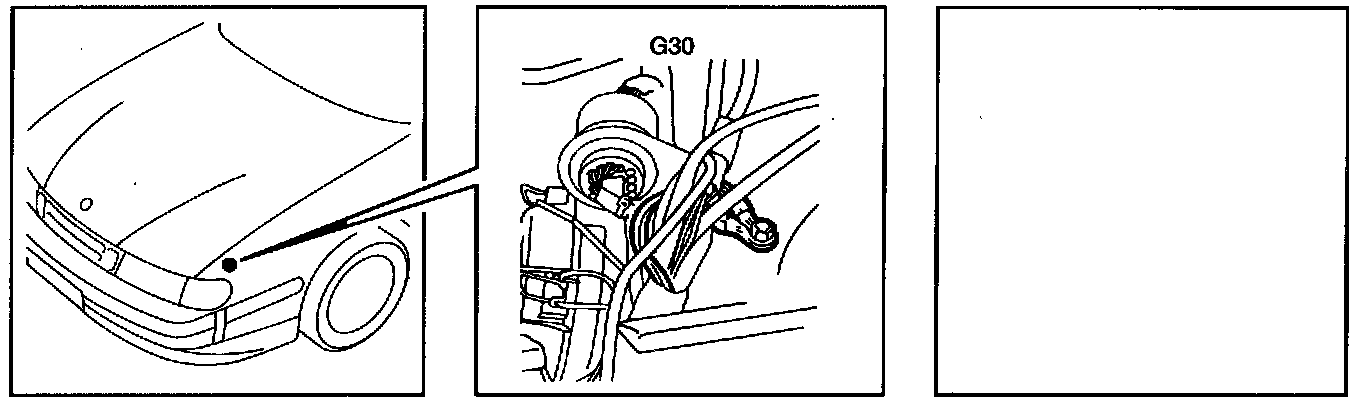

G30 Grounding point, left-hand structural member, behind the left-hand headlamp
2-pin connectors
H2-5 In the front left-hand corner of the engine compartment under electrical distribution box 342
H2-15 In the right-hand A pillar
H2-16 Beside the locking mechanism inside the front right-hand door
H2-22 By the left-hand side direction indicators, (green connector)
H2-23 Beside the right-hand side direction indicators, (green connector)
H2-32 Connected to the LED beside the left-hand loudspeaker grille
H2-34 Beside the locking mechanism inside the front left-hand door
H2-87 Under the roof console by the rear-view mirror.
4-pin connectors
H4-13 In the left-hand front door below the door mirror
H4-19 Beside the locking mechanism in the passenger door
H4-21 Beside the generator on V6.
6-pin connectors
H6-4 In the luggage compartment on the left-hand side beside the rear window
H6-6 To the right of the rear window wiper motor H6-8 In the tailgate beside motor 188 (4D, CS)
8-pin connectors

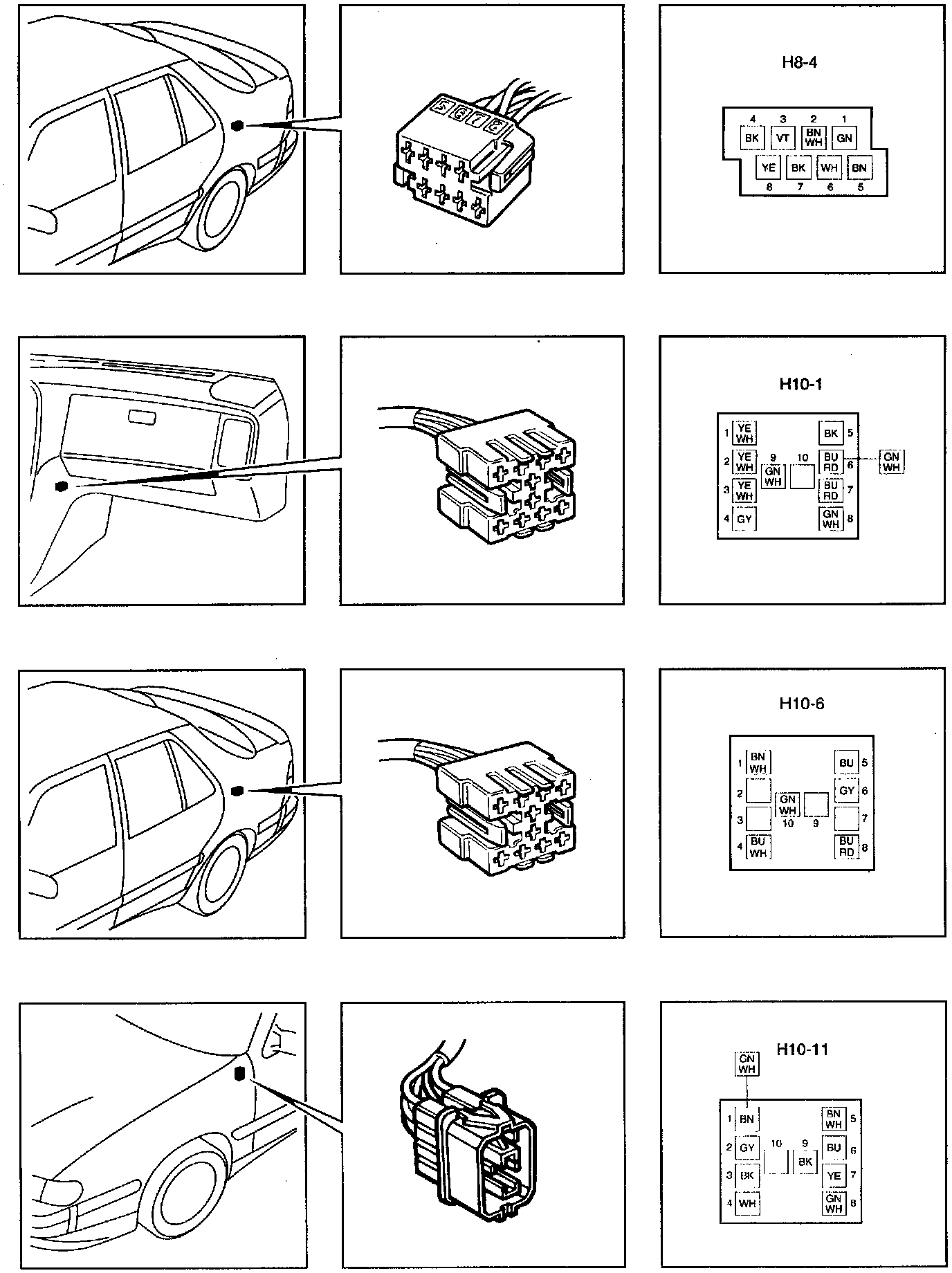

H8-4 By the rear left-hand wheel housing
H8-5 By the rear left-hand wheel housing
10 pin connectors
H10-1 Under the facia to the left of the heater housing
H10-6 By the rear left-hand wheel housing
H10-9 Scan tool diagnostics data link connector,
vehicle electronics under the right-hand seat (green)
H10-11 On the far left under the facia (behind the knee shield) beside cruise control memory 131
H10-14 In the luggage compartment on the left-hand side beside the filament monitor
22-pin connectors
H22-1 Behind the cable entry in the left-hand A pillar
H22-2 Behind the cable entry in the right-hand A pillar
24 pin connectors
H24-2 Behind the front left headlamp 70 pin connectors

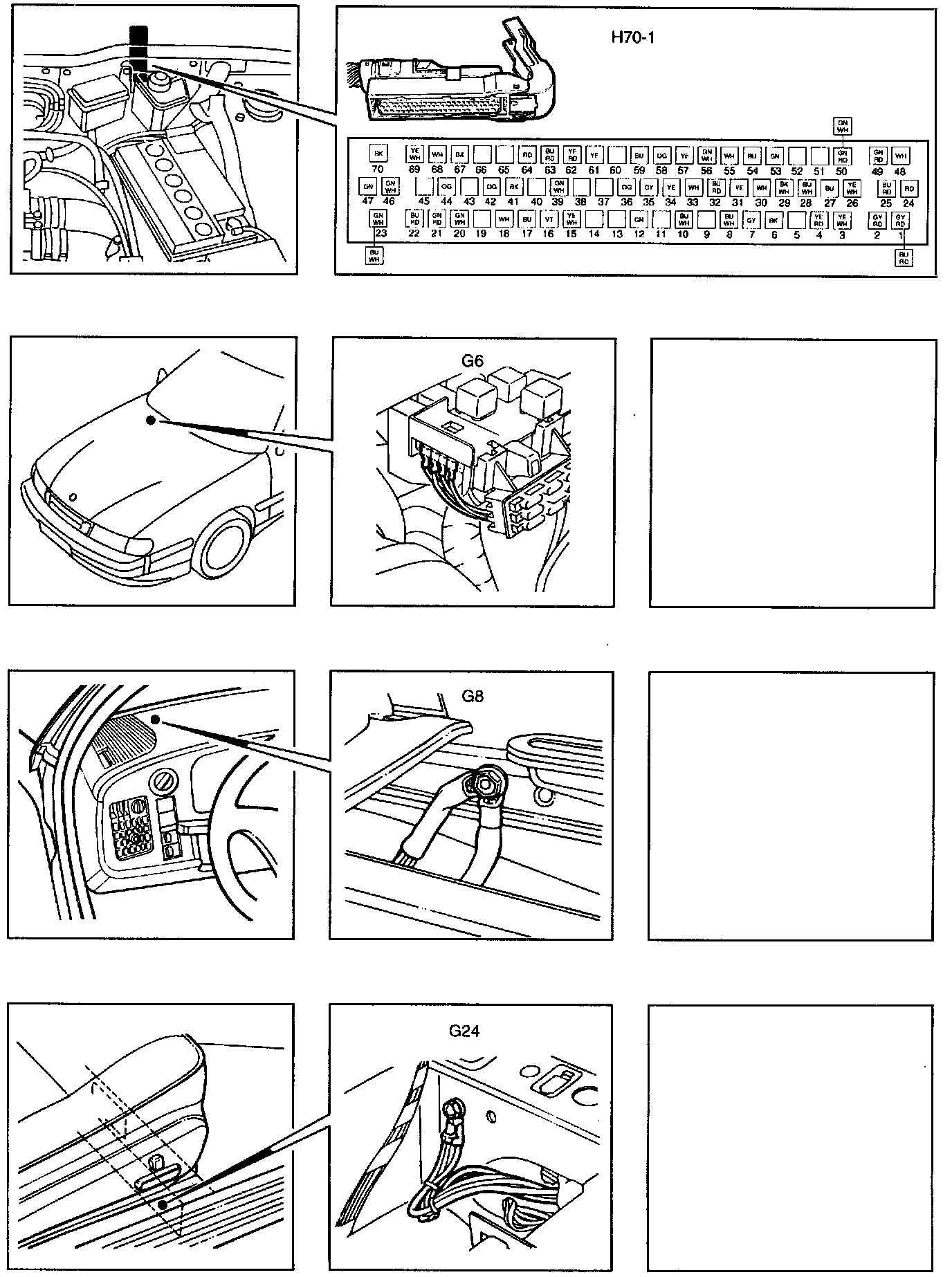

H70-1 In the engine compartment behind the bulk-head partition.
