Electrically Adjustable Front Seat

Electrically Adjustable Front Seats: Component Location:

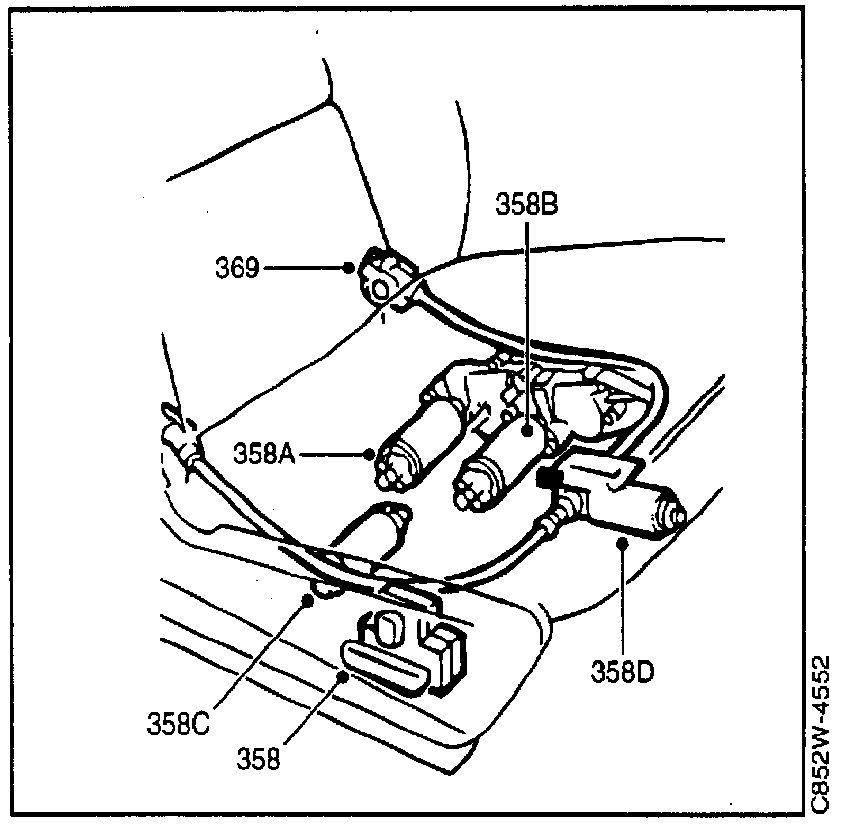

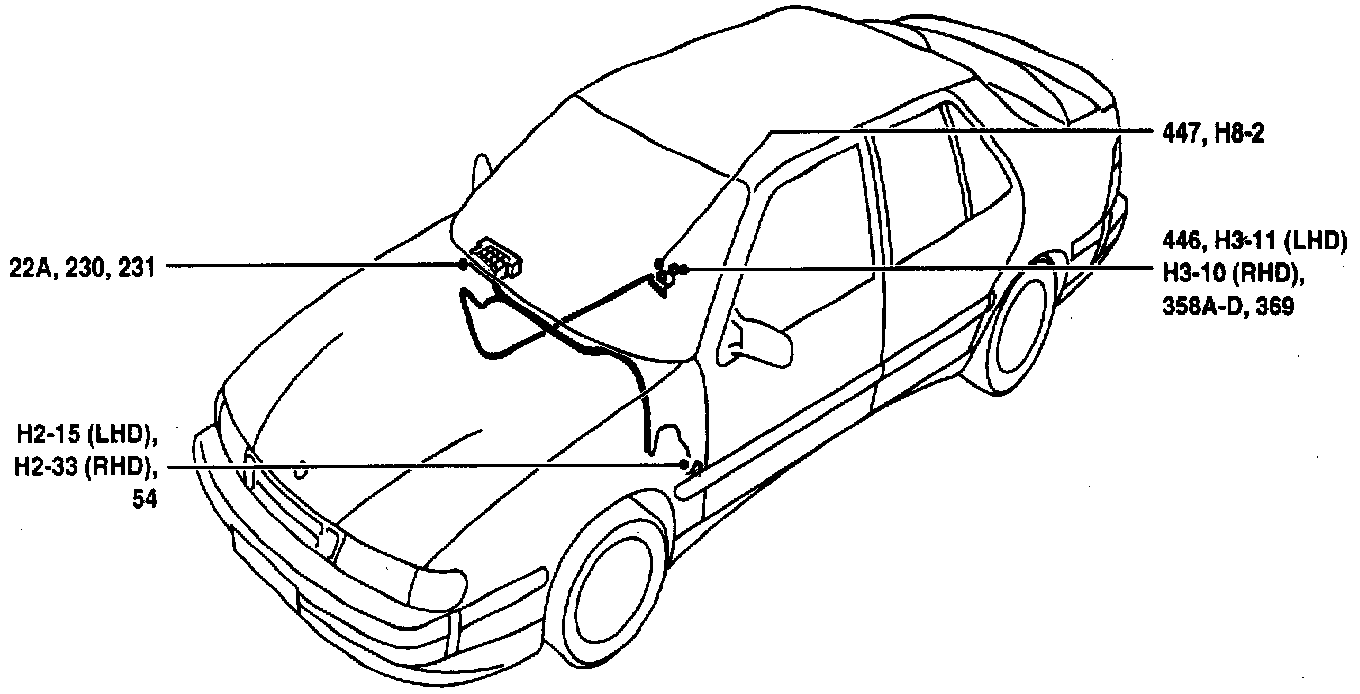

COMPONENT LOCATION VIEW

Electrically Adjustable Front Seats: Component ID:

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
54 Door switches in the door pillars.
230 Distribution terminal (+30 circuit) in the main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
358 Switch, electrically adjustable passenger seat, on the outside of the seat.
358A-D Electric motors, passenger seat, under the seat.
369 Microswitch, seat backrest, between the seat cushion and backrest beside the inner edge of each seat.
446 Relay for electrically adjustable front seat via the ignition switch, under the seat.
447 Relay for electrically adjustable front seat via the door switch, under the seat.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-33 In the left-hand A pillar.

3-Pin Connectors
H3-10 Under the left-hand seat, to the left on the electronics console.
H3-11 Under the right-hand seat, to the right on the electronics console.

8-Pin Connector
H8-2 Under the passenger seat.

Grounding Points
G14 Grounding point, left-hand front seat member
G24 Grounding point, right-hand front seat member.
