Electrically Adjustable Front Seat With Memory

Electrically Adjustable Front Seat With Memory: Component Location:

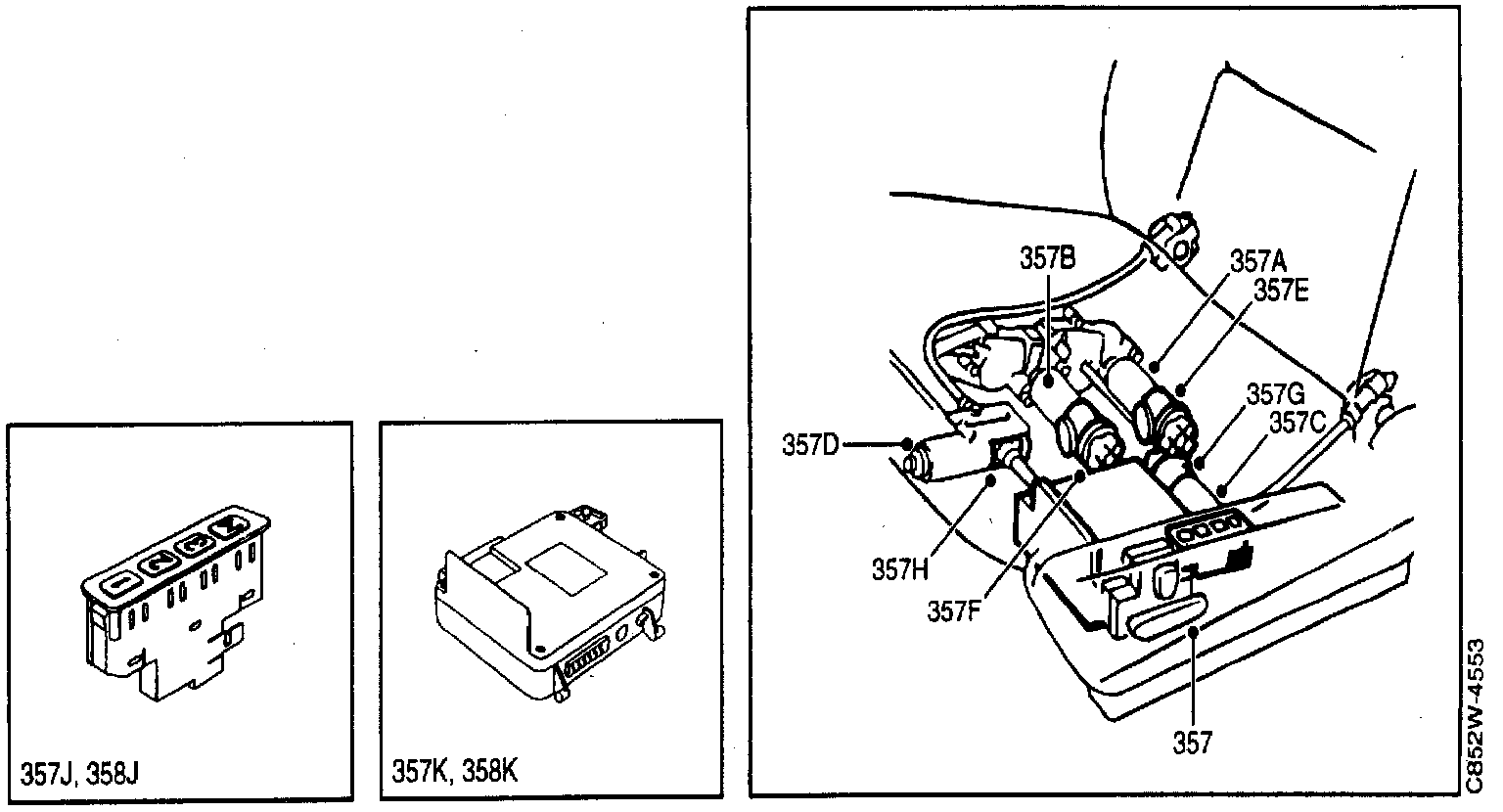

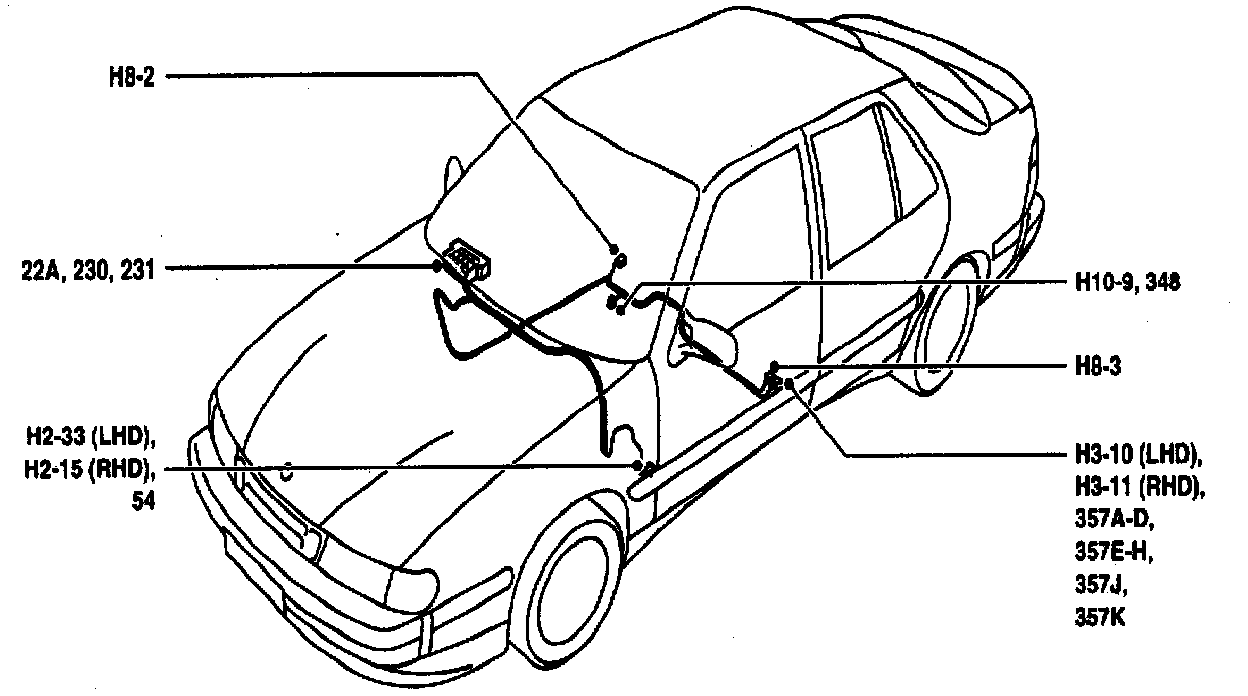

COMPONENT LOCATION VIEW

Electrically Adjustable Front Seat With Memory: Component ID:

COMPONENT ID
22A Fuse board behind the cover flap in the glove box.
54 Door switches in the door pillars.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
348 Scan tool diagnostics data link connector under the right-hand
(H10-9) seat.
357 Switch, electrically adjustable driver's seat, on the outside of the seat.
357A-D Electric motors, driver's seat, under the seat.
357E-H Position sensor, electrically adjustable driver's seat, memory, under the seat on the corresponding motor shaft.
357J Switch, memory, on the outside of the driver's seat.
357K Electronic control module, electrically adjustable driver's seat with memory, under the seat.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-33 In the left-hand A pillar.

3-Pin Connectors
H3-10 Under the left-hand seat, to the left on the electronics console.
H3-11 Under the right-hand seat, to the right on the electronics console.

8-Pin Connectors
H8-2 Under the right-hand seat.
H8-3 Under the left-hand seat.

Grounding Points
G14 Grounding point, left-hand front seat member
G24 Grounding point, right-hand front seat member.
