Electrically Operated Tailgate Release

IBElectrically Operated Tailgate Release:

WIRING DIAGRAM

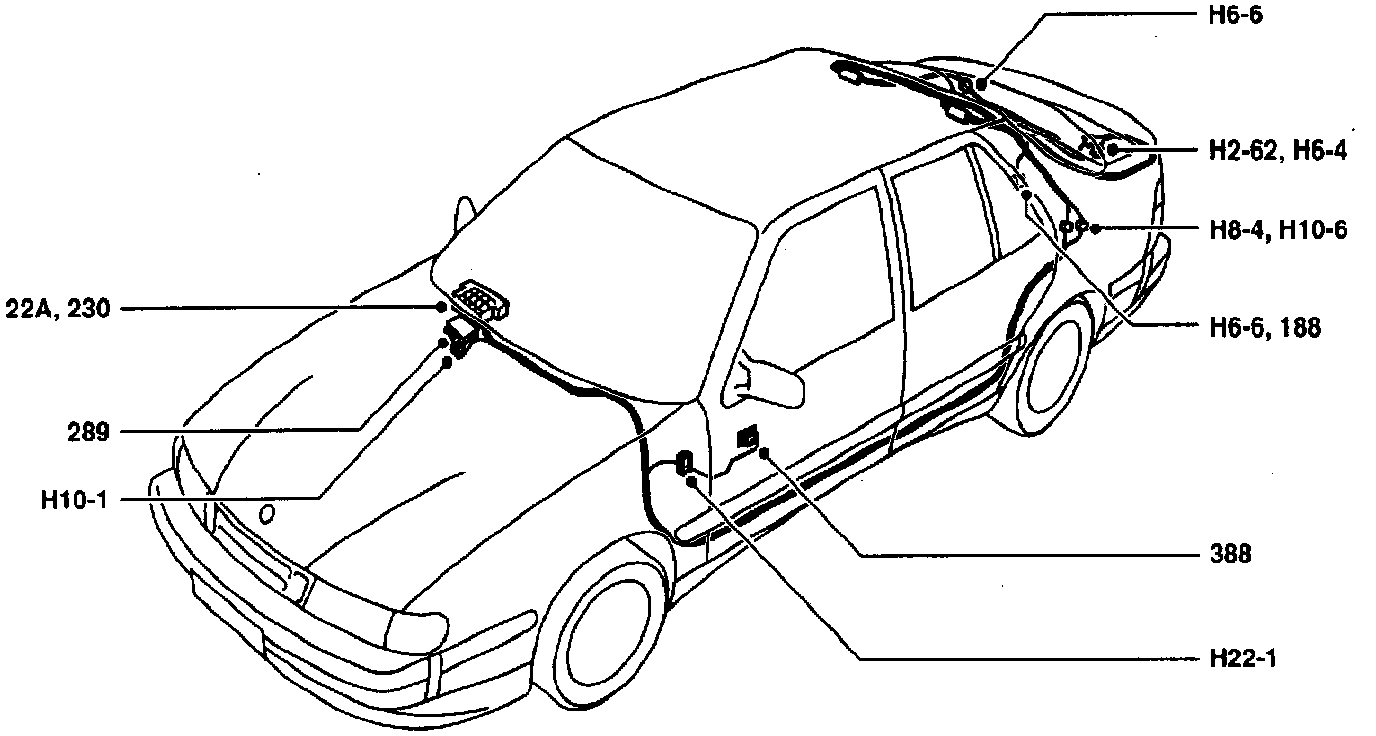

Electrically Operated Tailgate Release: Component Location:

COMPONENT LOCATION VIEW

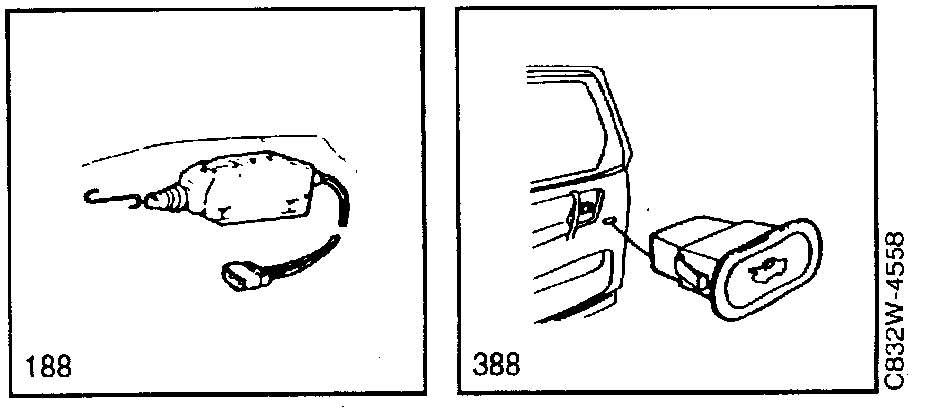

Electrically Operated Tailgate Release: Component ID:

COMPONENT ID

22A Fuse board behind the cover flap in the glove box.
188 Central locking motor, tailgate, in the tailgate.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
289 Control module, anti-theft alarm, under the dashboard on the right- hand side behind the knee shield.
388 Switch, electrically operated tailgate release, in the driver's door.

2-Pin Connector
H2-62 In the tailgate on the left.

6-Pin Connectors
H6-4 In the tailgate to the left beside the rear window.
H6-6 To the right of the rear window wiper motor.
H6-8 In the tailgate next to motor 188.

8-Pin Connectors
H8-4 By the left-hand rear wheel housing.

10-Pin Connector
H10-6 Beside the left-hand rear wheel housing.

22-Pin Connectors
H22-1 Behind the cable entry in the left-hand A pillar.
H22-2 Behind the cable entry in the right-hand A pillar.

25-Pin Connector
H25-1 Under the glove box door beside the anti-theft alarm control module.

Grounding Points
G5 Under the rear seat on the lefthand side.

DESCRIPTION OF OPERATION
The tailgate can either be opened using switch 388 in the driver's door or with the key in the tailgate. When the tailgate is opened using switch 388, current (+30 circuit) is supplied from fuse 17 via the switch to motor 188.

A spring in motor 188 ensures that it always returns to the locked position. To prevent the motor from recoiling, it is damped by being grounded on both sides.

FAULT DIAGNOSIS HINTS
1. Check that current is supplied to pin 2 of switch 388.
2. Check fuse 17.
3. Check the connectors, wiring harness and ground connections.
