Indicator Warning Lamps II

Indicator And Warning Lamps II: Component Location:

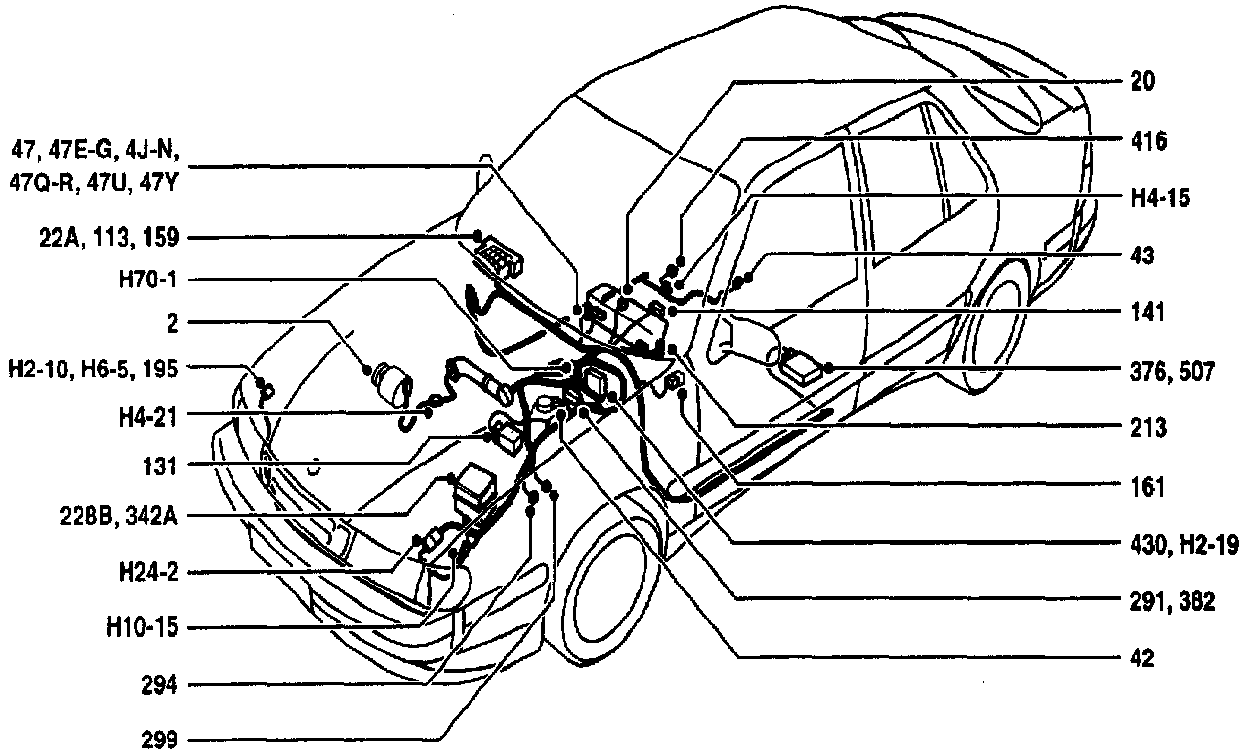

COMPONENT LOCATION VIEW

Indicator And Warning Lamps II: Component ID:

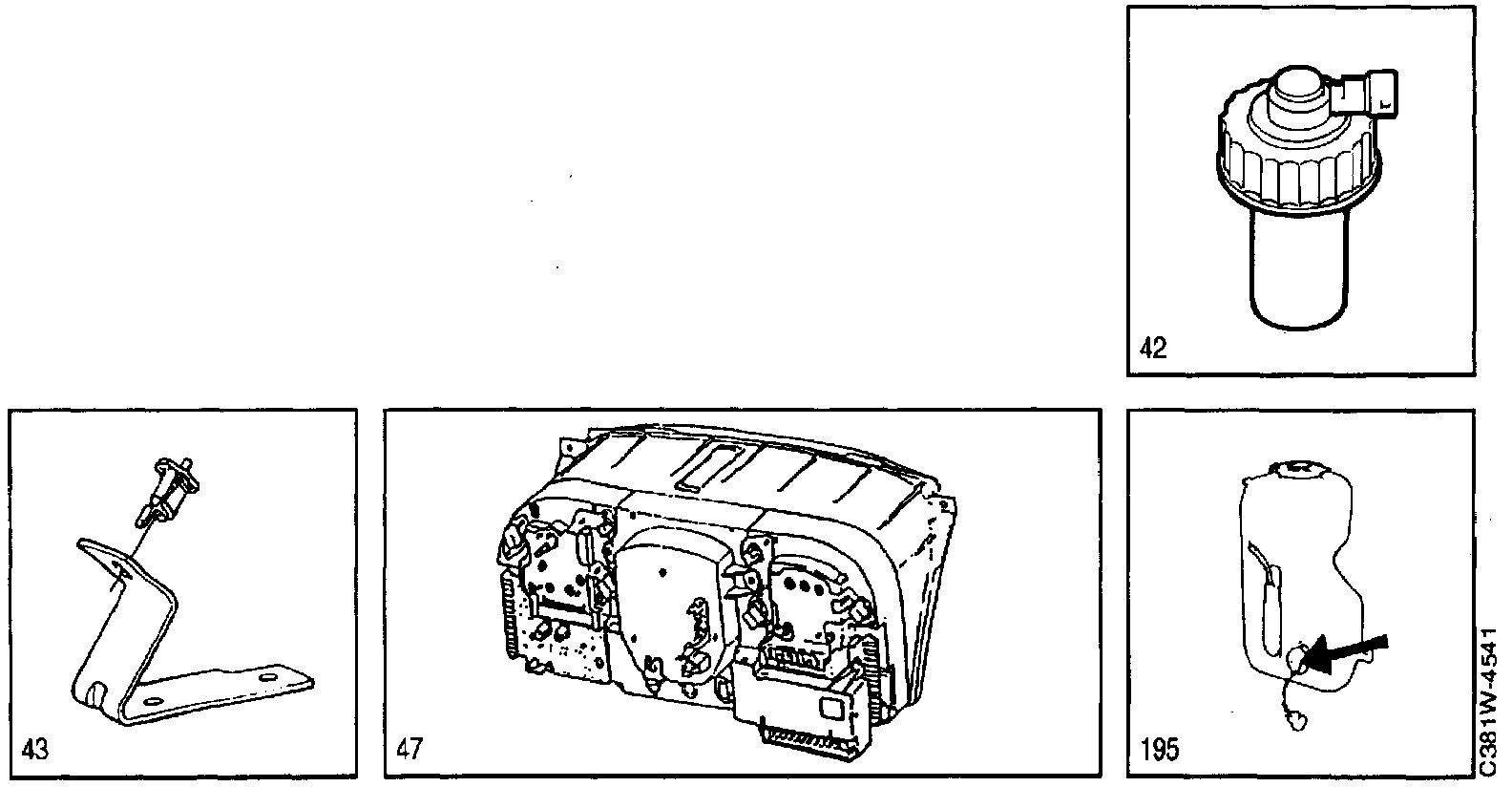

COMPONENT ID
2 Generator at the rear of the engine on the right-hand side.
20 Ignition switch, on the right-hand side of the steering column.
42 Brake fluid level warning switch, on the brake fluid reservoir behind the battery.
43 Handbrake switch, under the hand- brake lever.
47 Main instrument display panel

In The Main Instrument Display Panel
47E Charging indicator lamp.
47F Warning lamp, brakes.
47G Full beam indicator lamp
47J Indicator lamp, electrically heated rear window.
47K SHIFT UP indicator light.
47L EXH warning lamp.
47M Indicator lamp, hand brake.
47N Indicator lamp, rear fog light.
47Q ABS/ ABS-TCS warning lamp.
47R Indicator lamp, washer fluid level.
47U Cruise Control system indicator lamp.
47Y TCS CTRL warning lamp
113 Time-delay relay, electrically heated rear window, in main fuse box behind the glove box.
113 Relay, electrically heated rear window, in main fuse box behind the glove box.
141 Cruise Control switch on the direction indicator stalk switch on the left-hand side of the steering wheel.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
161 Rear fog light switch, on the dashboard between the steering wheel and driver's door.
195 Level switch, in the washer fluid reservoir in the right-hand wheel
housing.
213 Pictogram, in the main instrument display panel.
228B Filament monitor, front lamps, in main fuse box in front of the battery.
291 ABS control module on the battery tray.
294 TC-ABS pressure switch, on the hydraulic unit.
299 Brake fluid level sensor, TC-ABS, in the brake fluid reservoir.
342A Fuse board in main fuse box in front of battery.
376 ETS throttle control module, under left-hand front seat.
382 TC-ABS control module, on the battery tray.
416 Relay, EXH warning, on a bracket behind the front seat member on the right-hand side.
430 Control module, Trionic engine management system, in engine bay on the left-hand side behind the bulkhead partition.
507 TCS V6 control module, under the left-hand front seat.
508 Control module, Cruise Control system, adjacent to the battery tray.

2-Pin Connectors
H2-10 Beside the washer fluid reservoir.
H2-19 Under the dashboard to the left of the steering wheel.

4-Pin Connector
H4-15 To the left under the right-hand seat.

6-Pin Connector
H6-5 In the front right-hand corner behind the light cluster beside the washer fluid reservoir.

10-Pin Connector
H10-15 Behind the left-hand headlamp.

24-Pin Connectors
H24-1 In the engine bay on the bulkhead partition.
H24-2 Behind the left-hand headlamp.

70-Pin Connector
H70-1 iIn the engine bay, behind the bulkhead partition.

Grounding Points
G2 Grounding point, battery tray, on the left-hand wheel housing.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G31 Grounding point, right-hand structural member behind the right-hand headlamp.
