US and CA Markets

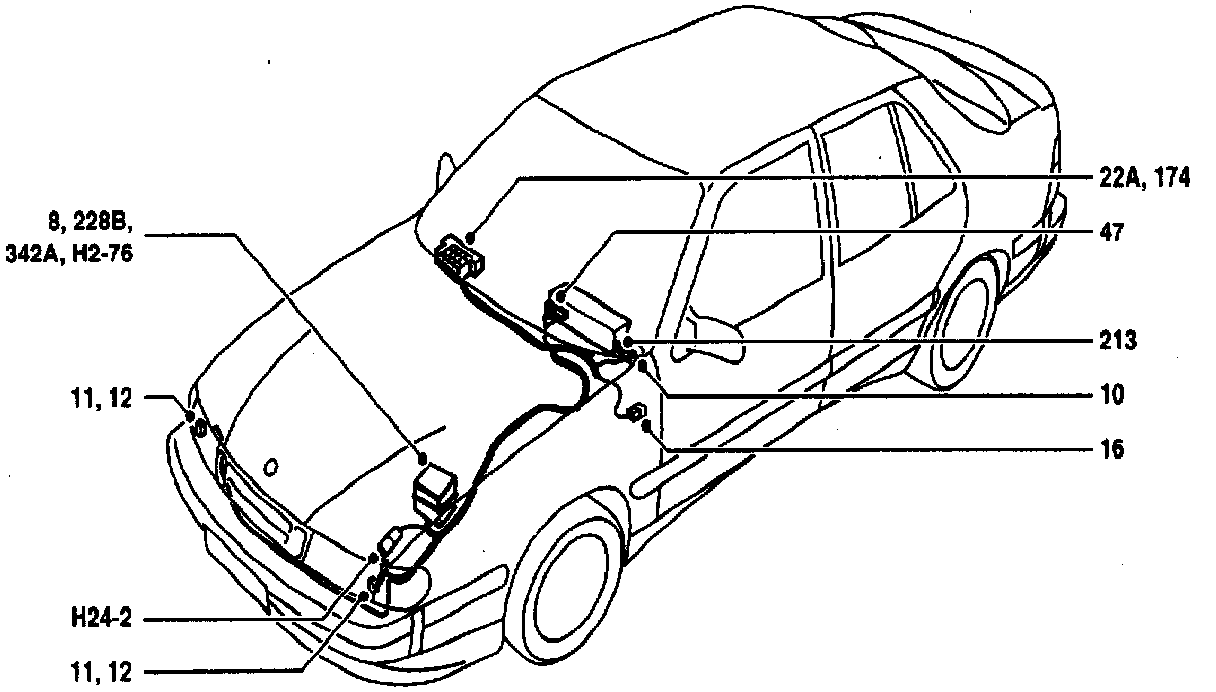

Day Light Driving Lights: Component Locations:

COMPONENT LOCATION VIEW

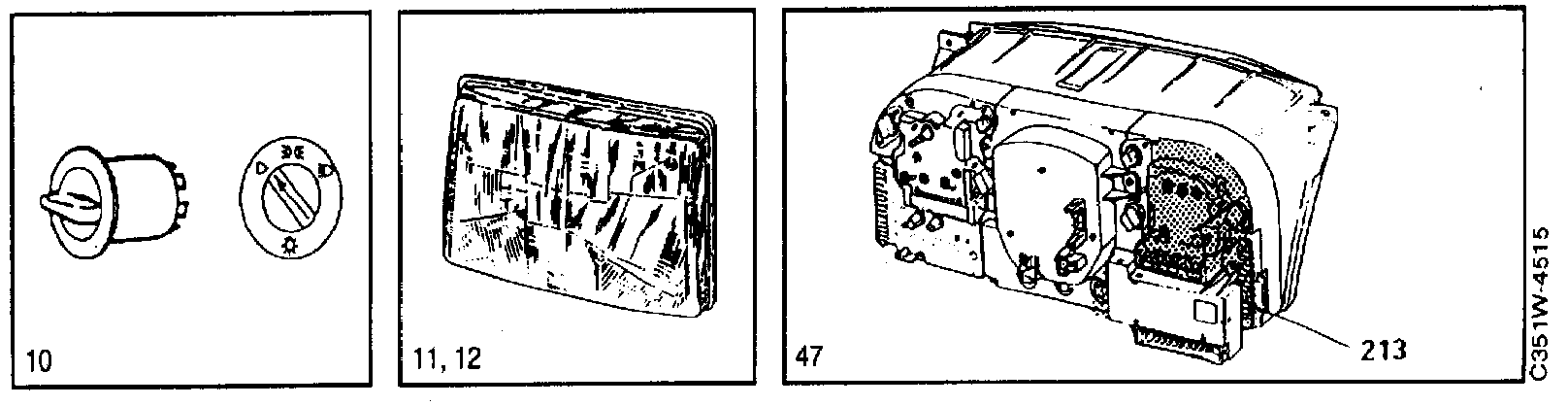

Day Light Driving Lights: Component ID:

COMPONENT ID
8 Lighting relay, in main fuse box in front of the battery.
10 Lights switch, on the dashboard adjacent to the driver's door
11 Full beam in LH and RH head-lamps.
12 Dipped beam in LH and RH head-lamps.
16 Rheostat, lighting for controls, on dashboard between the steering wheel and driver's door.
22A Fuse board, behind the cover flap in the glove box.
174 Relay, daylight driving lights, in main fuse box behind the glove box.
213 Pictogram, in the main instrument display panel.
228B Filament monitor, front lamps, in main fuse box in front of the battery.
342A Fuse board, in main fuse box in front of the battery.

2-Pin Connector
H2-76 On the wiring harness under the front main fuse box.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G6 Grounding point, negative distribution terminal, in the main fuse box behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G30 Grounding point, left-hand radiator cross-member, behind the left hand headlamp.
G31 Grounding point, right-hand radiator cross-member, behind the righthand headlamp.
