Extra Fog Lights

Extra Fog Lights: Components Locations:

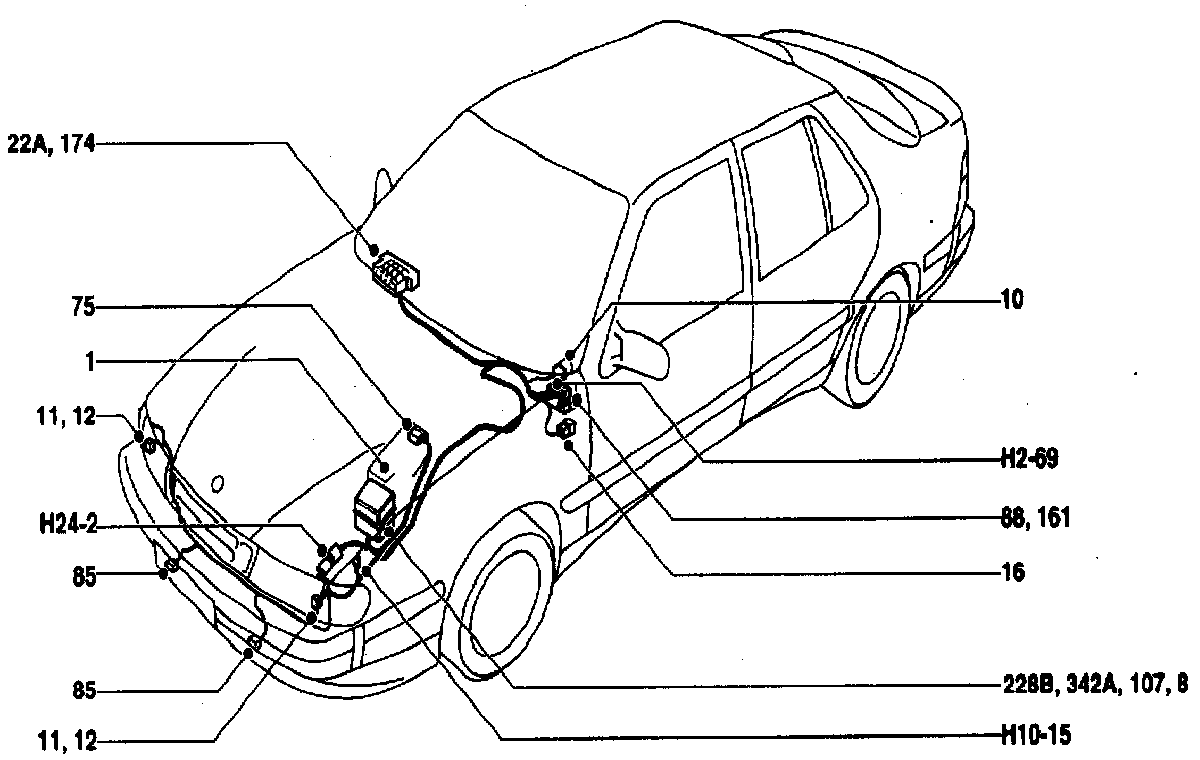

COMPONENT LOCATION VIEW

Extra Fog Lights: Components ID:

COMPONENT ID
1 Battery in the engine bay.
10 Lights switch on dashboard between steering wheel and driver's door.
16 Rheostat, lighting for controls, on dashboard between the steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
75 Distribution block, battery positive, on the battery tray.
85 Extra fog lights in front spoiler.
88/88A Switch, extra fog lights, on dashboard between the steering wheel and driver's door.
107 Relay, extra fog lights, in main fuse box in front of the battery.
161 Switch, rear fog light, on dashboard between the steering wheel and driver's door.
342A Fuse board in main fuse box in front of battery.

10-Pin Connector
H10-15 Behind the left-hand headlamp.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G30 Grounding point, left-hand structural member behind the left-hand headlamp.
G31 Grounding point, right-hand structural member behind the right-hand headlamp.
