Rear Fog Lights

Rear Fog Light: Component Location:

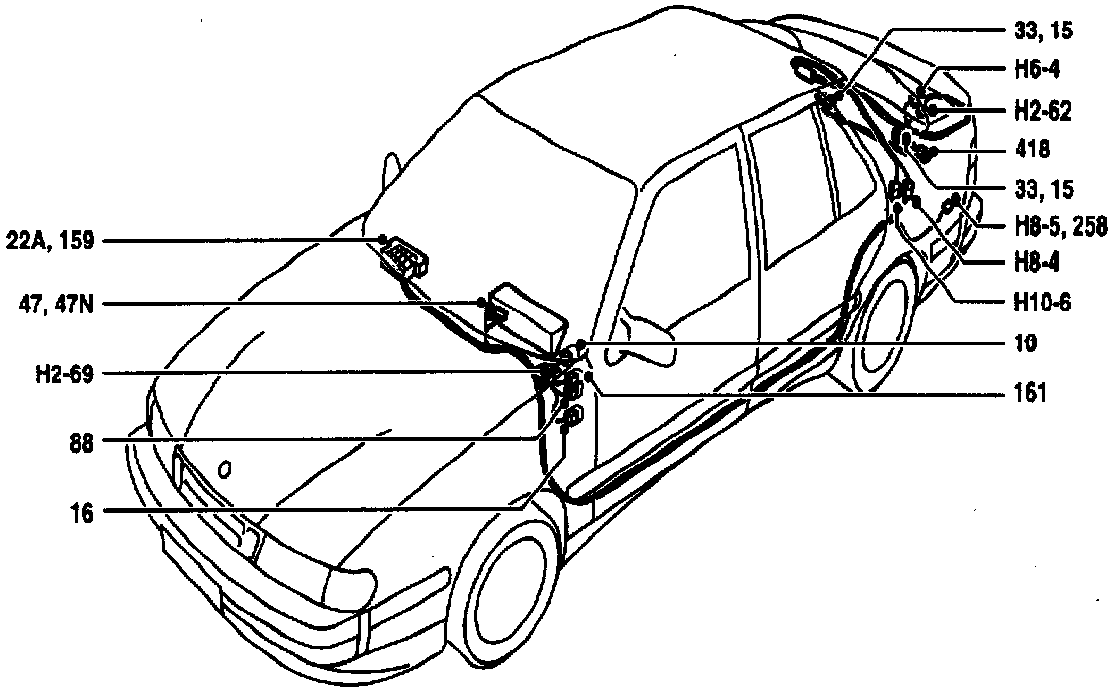

COMPONENT LOCATION VIEW

Rear Fog Light: Component ID:

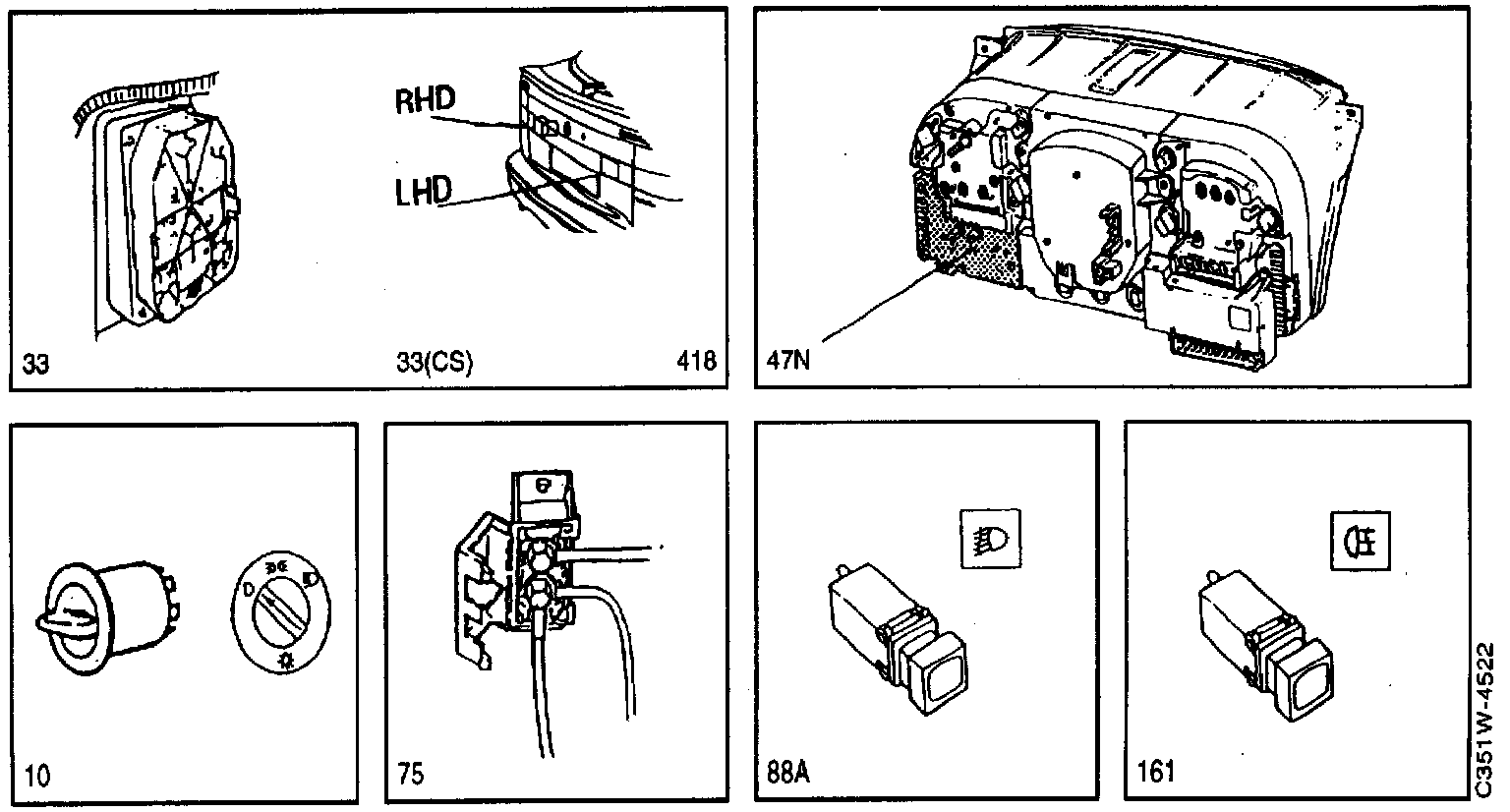

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
15 Number plate lighting in the tail- gate.
16 Rheostat, lighting for controls, on dashboard between the steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
32 Reversing lights
CD: in rear light clusters.
CS: in the tailgate.
33 Rear fog light
CD: in rear light cluster.
CS: in the tailgate.
47N Indicator lamp, rear fog lights, in main instrument display panel.
88A Switch, extra fog lights, on dashboard between the steering wheel and driver's door.
161 Switch, rear fog light, on dashboard between the steering wheel and driver's door.
258 Connection for trailer lighting, in luggage compartment below
(H8-5) the left-hand light cluster.
418 Rear light fitting, CS, in the tailgate.

2-Pin Connectors
H2-62 In the tailgate on the left-hand side.
H2-69 Behind the extra fog light switch.

6-Pin Connector
H6-4 In the tailgate on the left-hand side beside the rear window.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

10-Pin Connectors
H10-6 By the left-hand rear wheel housing.
H10-14 In the luggage compartment on the left-hand side, beside the filament monitor.

Grounding Points
G5 Grounding point, rear seat, on lefthand side.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
