Remove and Install

To Remove

1 Disconnect the negative (-) battery lead and cover the terminal pole on the battery.
2 Remove the RH front wheel.
3 Remove the RH wing liner.

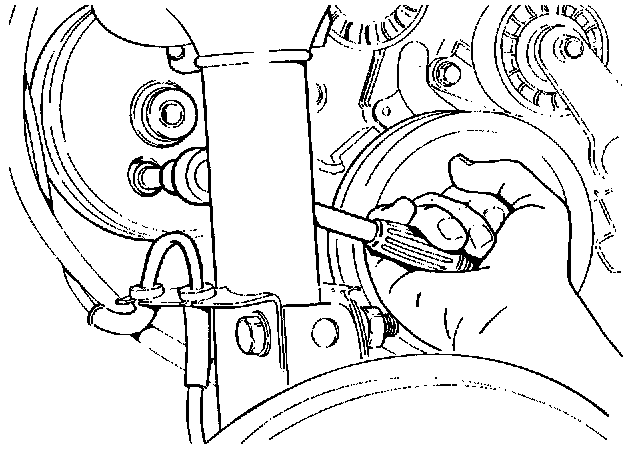

4 Ease the multigroove belt off the pulleys on the alternator and hydraulic pump.

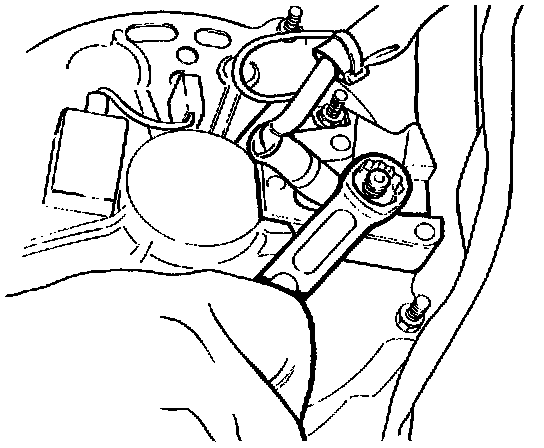

5 Remove the steady bar from between the wheel arch and the subframe (two bolts).

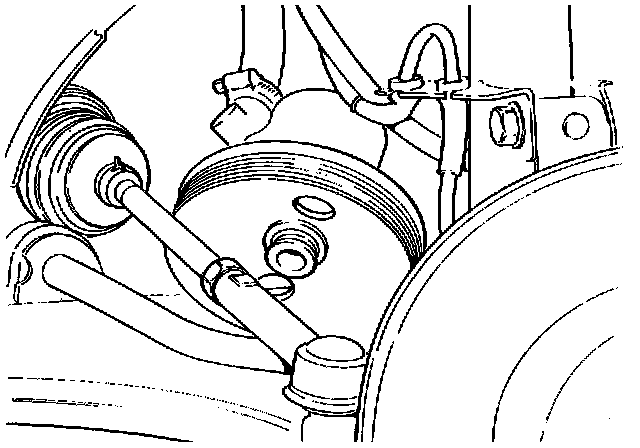

6 Undo the two securing bolts and remove the hydraulic pump by dropping it down and towards the rear of the car.

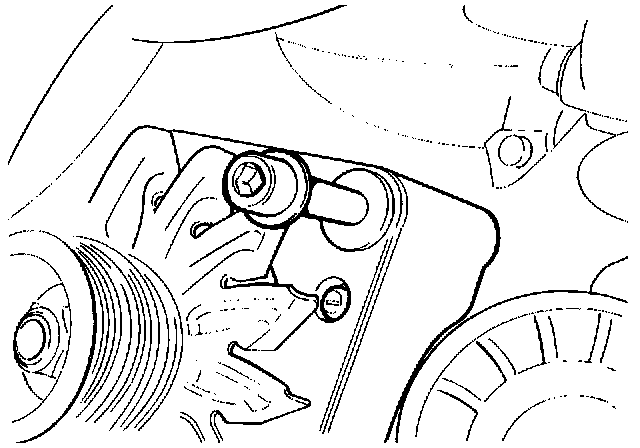

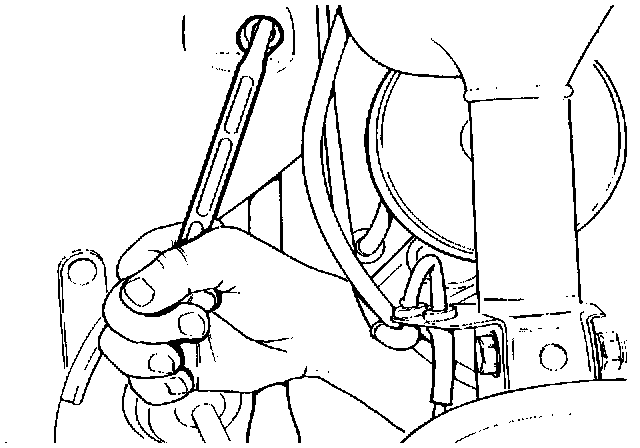

7 Undo the two securing bolts and drop the alternator down and towards the rear of the car.







8 Remove the pump bracket (four bolts).







9 Disconnect the electrical leads from the alternator and remove it by lifting it towards the front of the car.







To Install
1 Connect the leads to the alternator and place the alternator in position in the engine bay.
2 Install the bracket for the hydraulic pump.
3 Install the top bolt in the alternator, leaving it slack. Align the alternator, secure it to the bracket and tighten the bolts.
4 Install the hydraulic pump.
5 Install the steady bar.
6 Install the belt.
7 Install the wing liner and wheel.
8 Reconnect the battery.
