Grounding Points G14

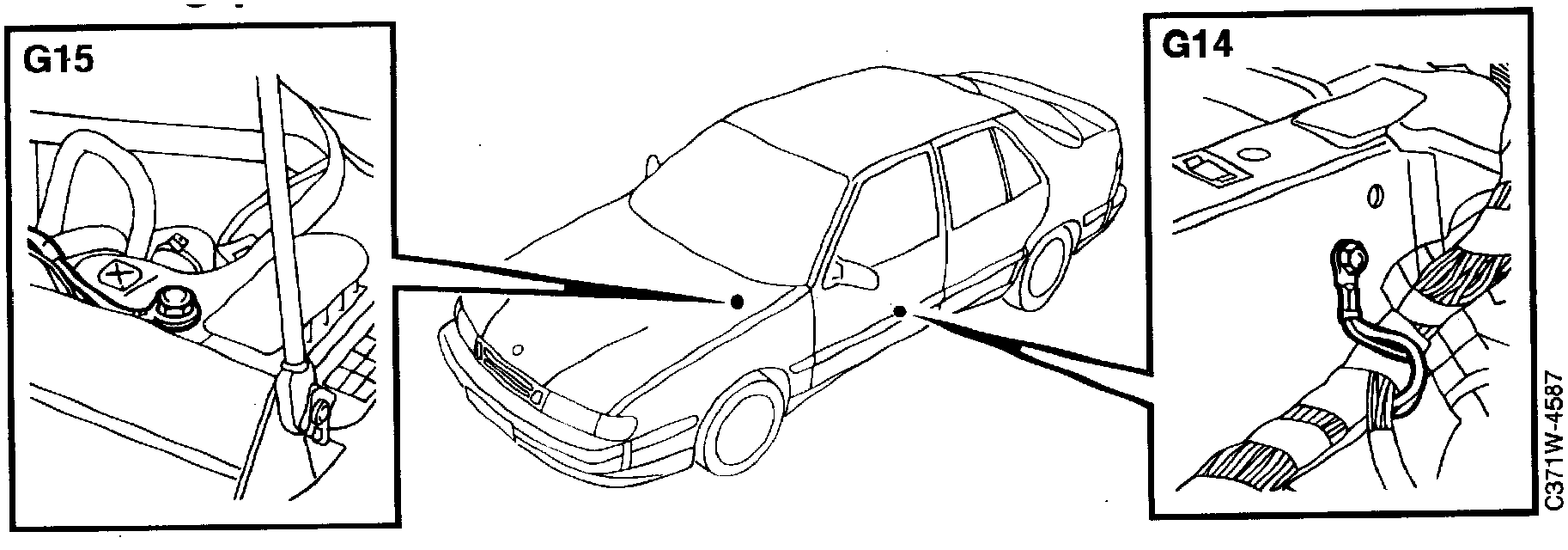

Grounding Points G14, G15:




Grounding point G14 is located in the left-hand seat member under the carpet on the left-hand side. The following components are connected:

64 Heating pad
70 Seat-belt switch, left-hand
224 Lighting, seat-belt buckle
245 Selector lever position switch, automatic transmission
254 Temperature sensor, heating pad, left-hand
357 Switch, electrically adjustable seat, left-hand
357K Control module, electrically adjustable seat with
memory,left-hand
369 Microswitch, electrically adjustable seat backrest, left-hand
386 Switches, electric window lifts, electrically operated sunroof
446 Relay, electrically adjustable seat (ignition switch), left-hand
447 Relay, electrically adjustable seat (door switch), left-hand
