Grounding Points G16

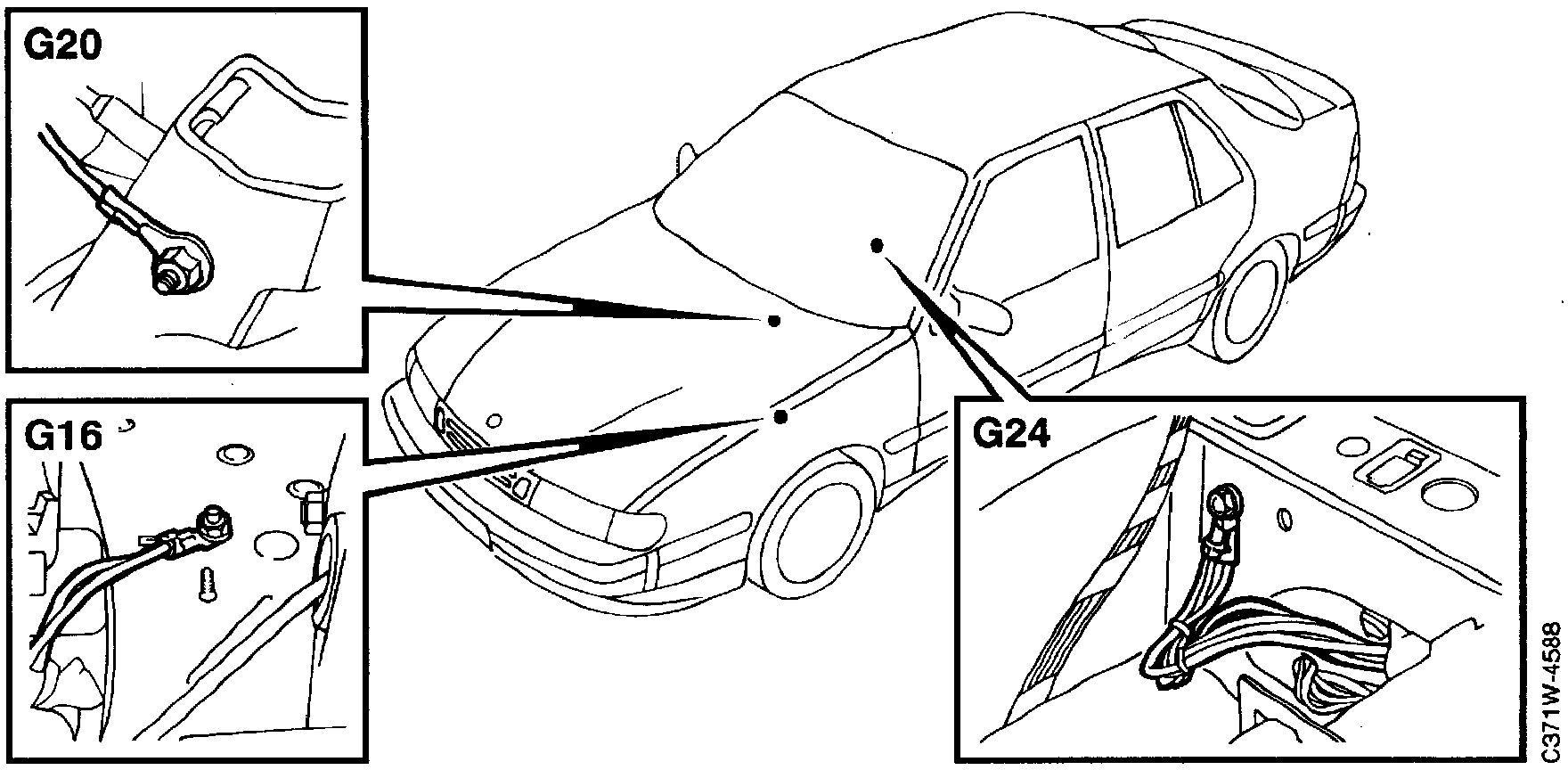

Grounding Points G16, G20, G24:

The following components are connected to grounding point G16 on the left-hand structural member:

294 TC-ABS pressure switch
297 Hydraulic pump, TC-ABS
299 Brake fluid level sensor, TC-ABS
303B Diode ABS, TC-ABS
427 Hydraulic pump motor, ABS, ABS-ASR
