Grounding Points G6

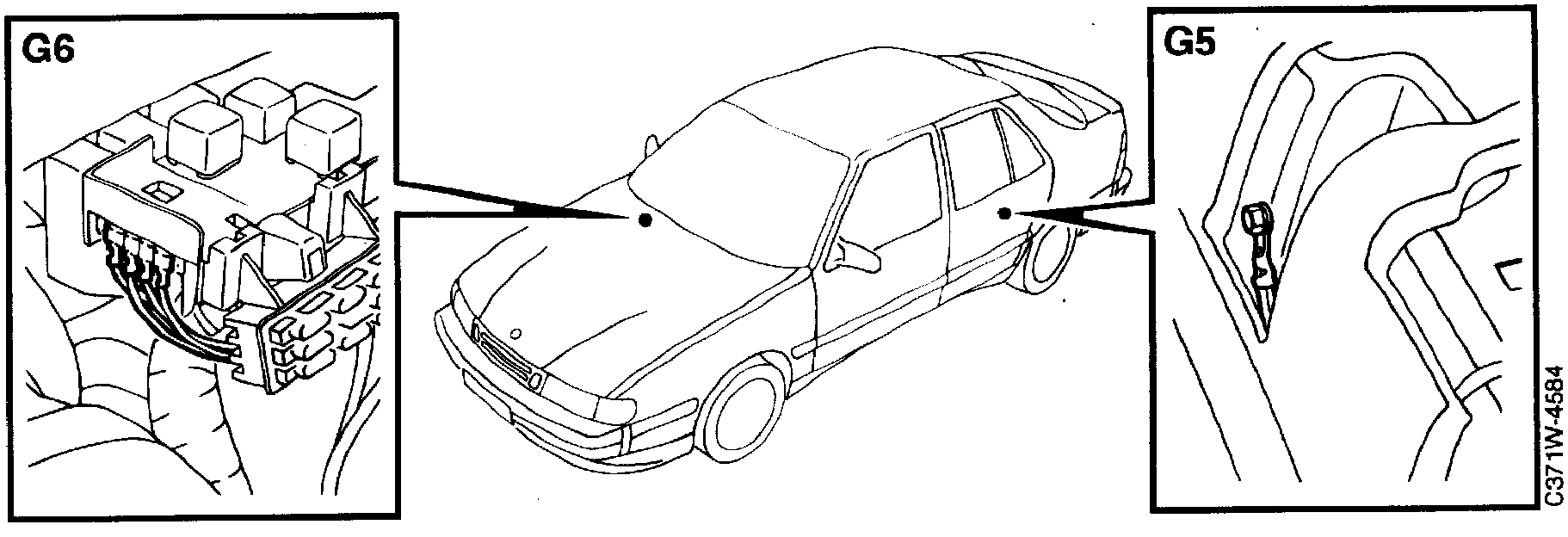

Grounding Points G5, G6:

Negative distribution terminal G6 is located in the left-hand part of the main fuse box. The following components are connected:

19 Glove box lamp
21 Ignition switch relay
23 Direction indicator relay
25 Hazard flashers switch
82 Seat-belt/ignition key warning relay
83 Windscreen wiper intermittent operation relay
83A Rear window wiper intermittent operation relay
113 Electrically heated rear window,relay/time-delay relay
116 Electrically heated rear window switch
127 Motor, electrically adjustable door mirror, right-hand
143 Recirculation switch, A/C
151 Interior lighting time delay relay
154 Lighting, heater controls
169 A/C switch
174 Relay, daylight driving lights
207 Electrically heated door mirror, passenger's door
208 Lock indication, passenger's door
289 Control module, anti-theft alarm
274 Microswitch, driver's door
405 Reversing light relay, automatic transmission
433 Relay, for disengagement of radiator fan
435 Microswitch in passenger's door
437 Relay, SHIFT LOCK P-interlock
452 Starter interlock relay, anti-theft alarm.

In addition, grounding point G6 is connected to grounding point G2.
