Electric Window Lifts

Electric Window Lifts: Component Location:

COMPONENT LOCATION VIEW

Electric Window Lifts: Component ID:

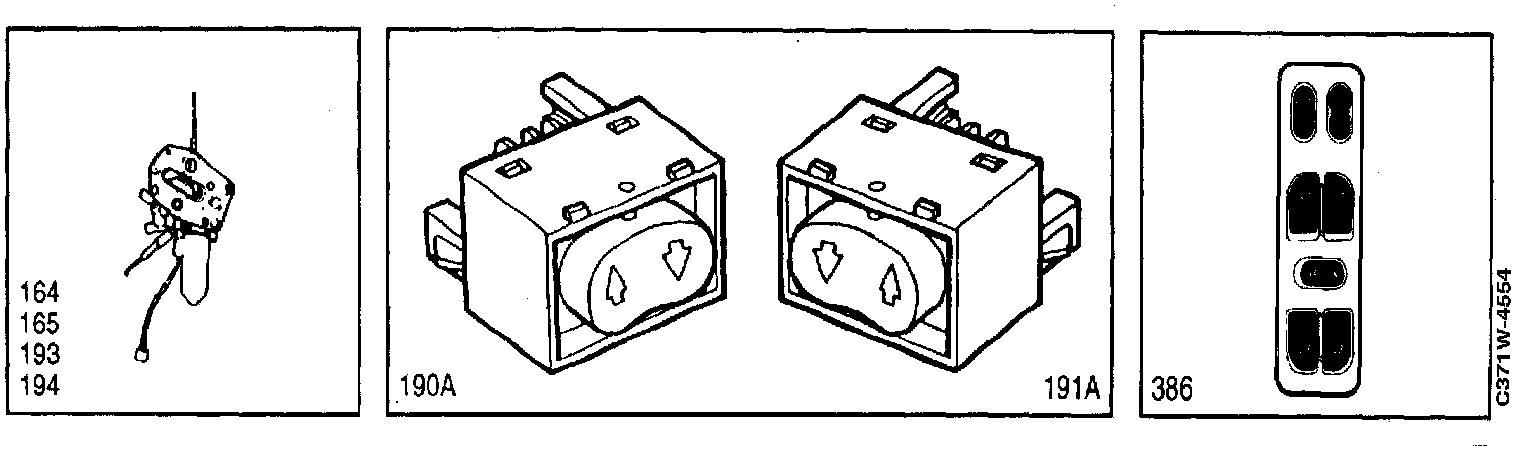

COMPONENT ID
16 Rheostat, lighting for controls, on dashboard between the steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
164 Motor, left-hand electric window lift, in the left-hand front door.
165 Motor, right-hand electric window lift, in the right-hand front door.
190A Switch, left-hand rear door electric window lift, in the left-hand rear door.
191A Switch, right-hand rear door electric window lift, in the right-hand rear door.
193 Motor, left-hand rear door electric window lift, in the left-hand rear door.
194 Motor, right-hand rear door electric window lift, in the right-hand rear door.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
386 Switch, electric window lifts, on the centre console between the front seats.
514A Switch, simultaneous operation of central locking in 386.

2-Pin Connectors
H2-13 In the right-hand front door, beside the window lift.
H2-27 In the right-hand rear door, beside the window lift.
H2-35 In the left-hand front door, beside the locking mechanism.
H2-39 In the left-hand rear door, beside the locking mechanism.

10-Pin Connectors
H10-5 Under the left-hand seat.
H10-22 In right-hand B pillar.
H10-24 In left-hand B pillar.

22-Pin Connectors
H22-1 Behind the cable entry in the left- hand A pillar.
H22-2 Behind the cable entry in the righthand A pillar.

Grounding Points
G14 Grounding point, left-hand front seat member
