Electrically Heated Rear Window and Door Mirrors

Electrically Heated Rear Window And Door Mirrors: Component Location:

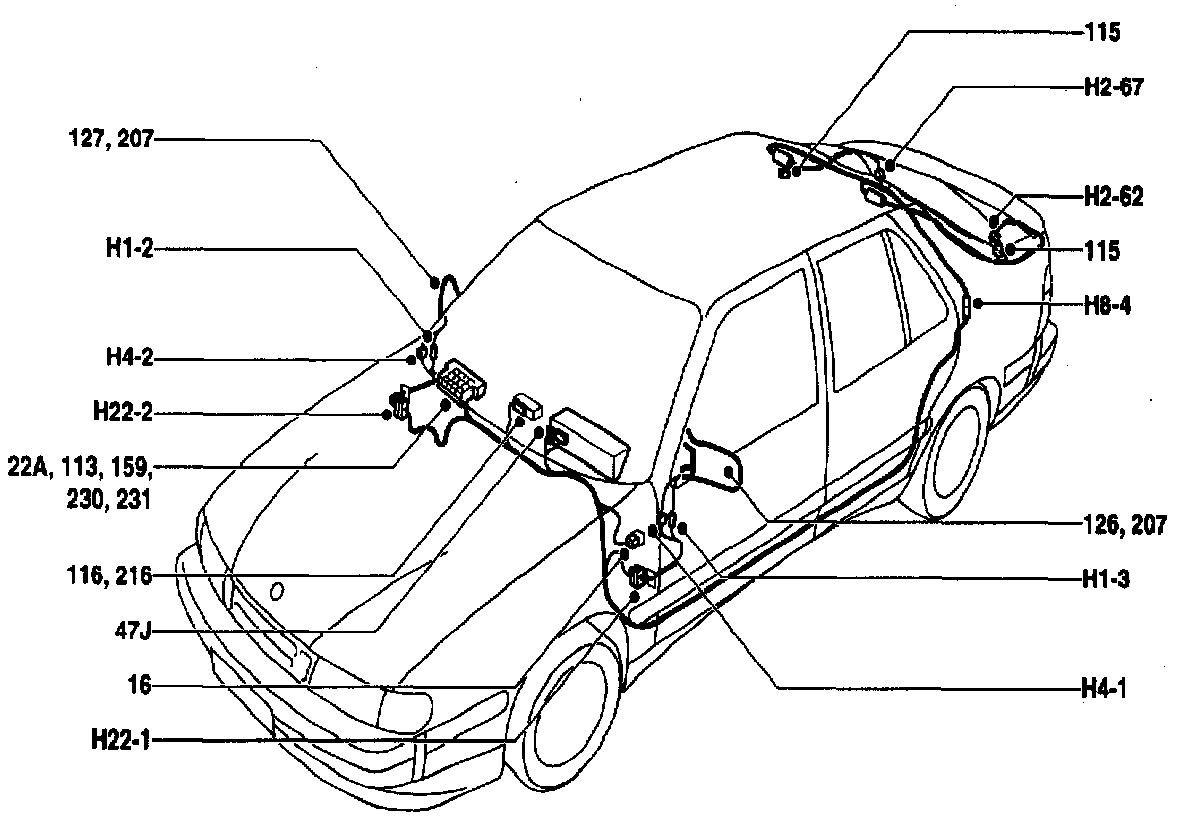

COMPONENT LOCATION VIEW

Electrically Heated Rear Window And Door Mirrors: Component ID:

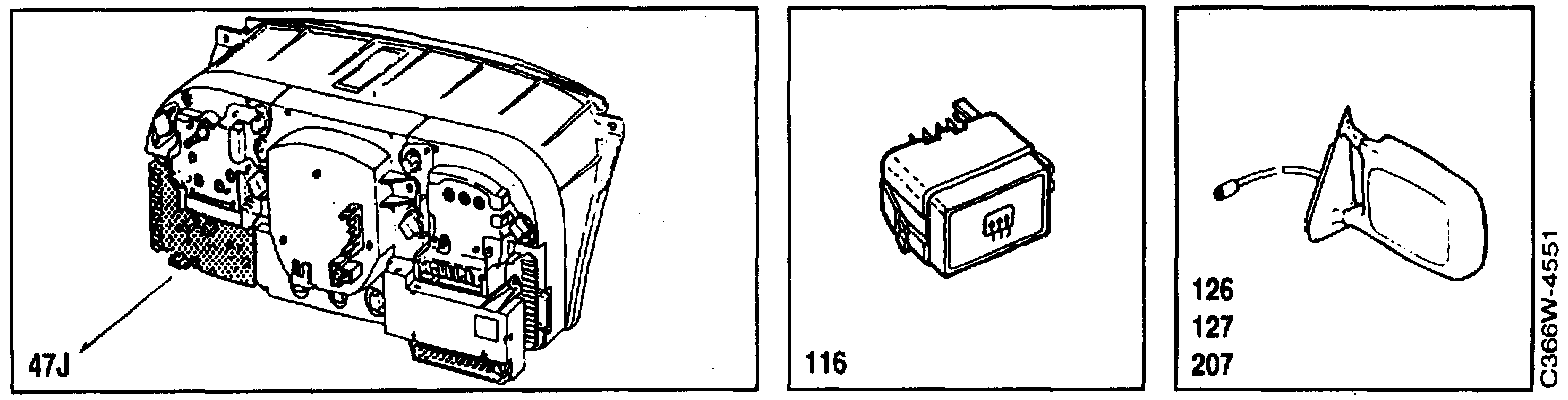

COMPONENT ID
16 Rheostat, lighting for controls, on dashboard between the steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
47J Indicator lamp, electrically heated rear window, in the main instrument display panel.
113 Relay, electrically heated rear window, in the main fuse box behind the glove box.
115 Electrically heated rear window.
116 Switch, electrically heated rear window, on control panel for heating and ventilation.
126 Motor, electrically adjustable door mirror, driver's side, in door mirror.
127 Motor, electrically adjustable door mirror, passenger's side, in door mirror.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
207 Heating element in door mirr6rs.
216 ACC control module, in the centre of the dashboard.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.

1-Pin Connectors
H1-2 In the right-hand front door below the door mirror.
H1-3 In the left-hand front door below the door mirror.

2-Pin Connectors
H2-62 In the tailgate on the left.
H2-67 In the tailgate on the right-hand side.

4-Pin Connectors
H4-1 In the driver's door below the door mirror.
H4-2 In the passenger's door below the door mirror.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

22-Pin Connectors
H22-1 Behind the cable entry in the left- hand A pillar.
H22-2 Behind the cable entry in the right- hand A pillar.

Grounding Points
G4 Grounding point, in the tailgate, CS.
G5 Grounding point, under the rear seat on the left.
G6 Grounding point, negative distribution terminal, in main fuse box 22B behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G26 Grounding point, right-hand C pillar (4D).
