Rear Window Wipers

���\Rear Window Wiper CS:

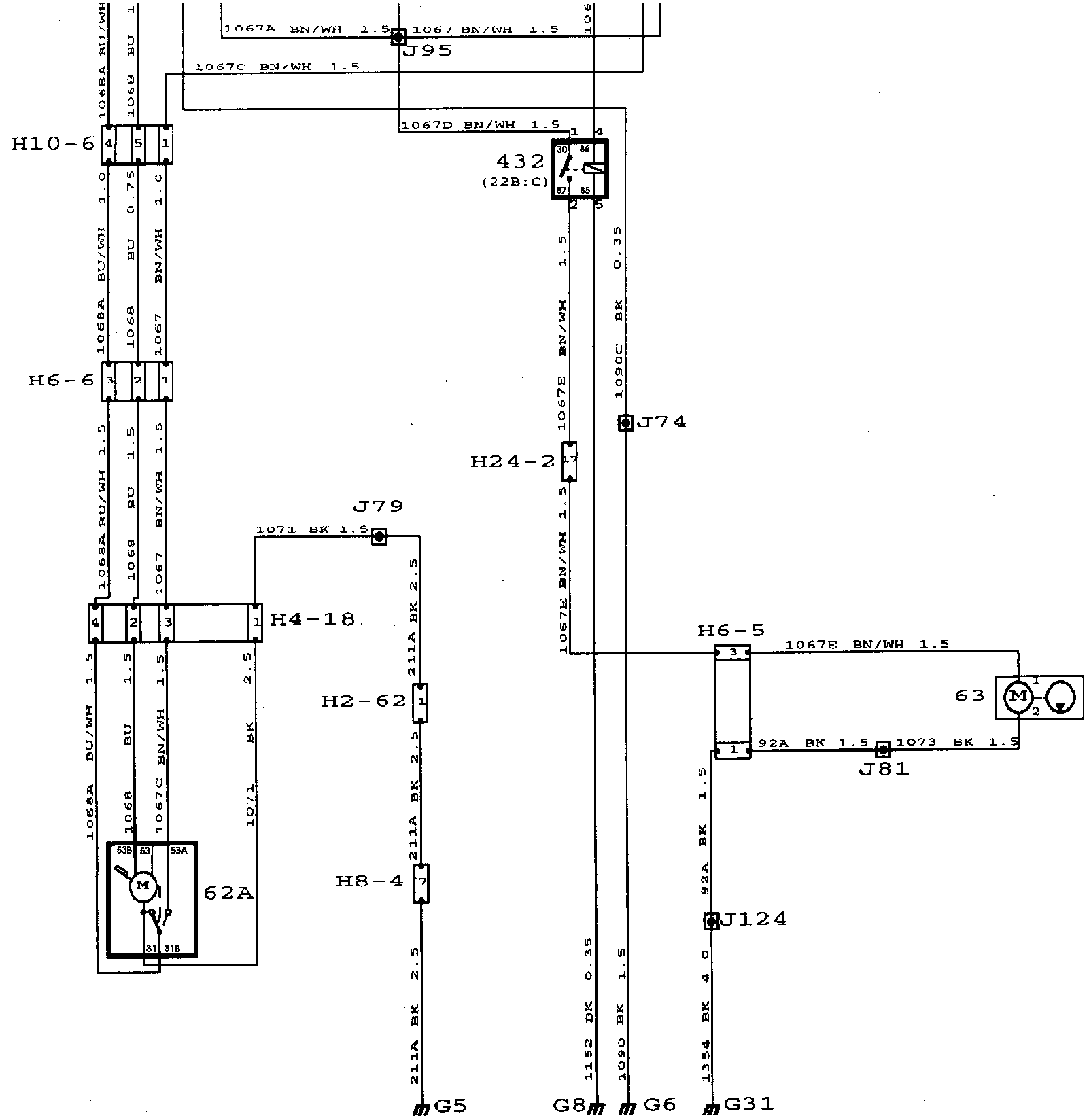

WIRING DIAGRAM

Rear Window Wipers CS: Component Location:

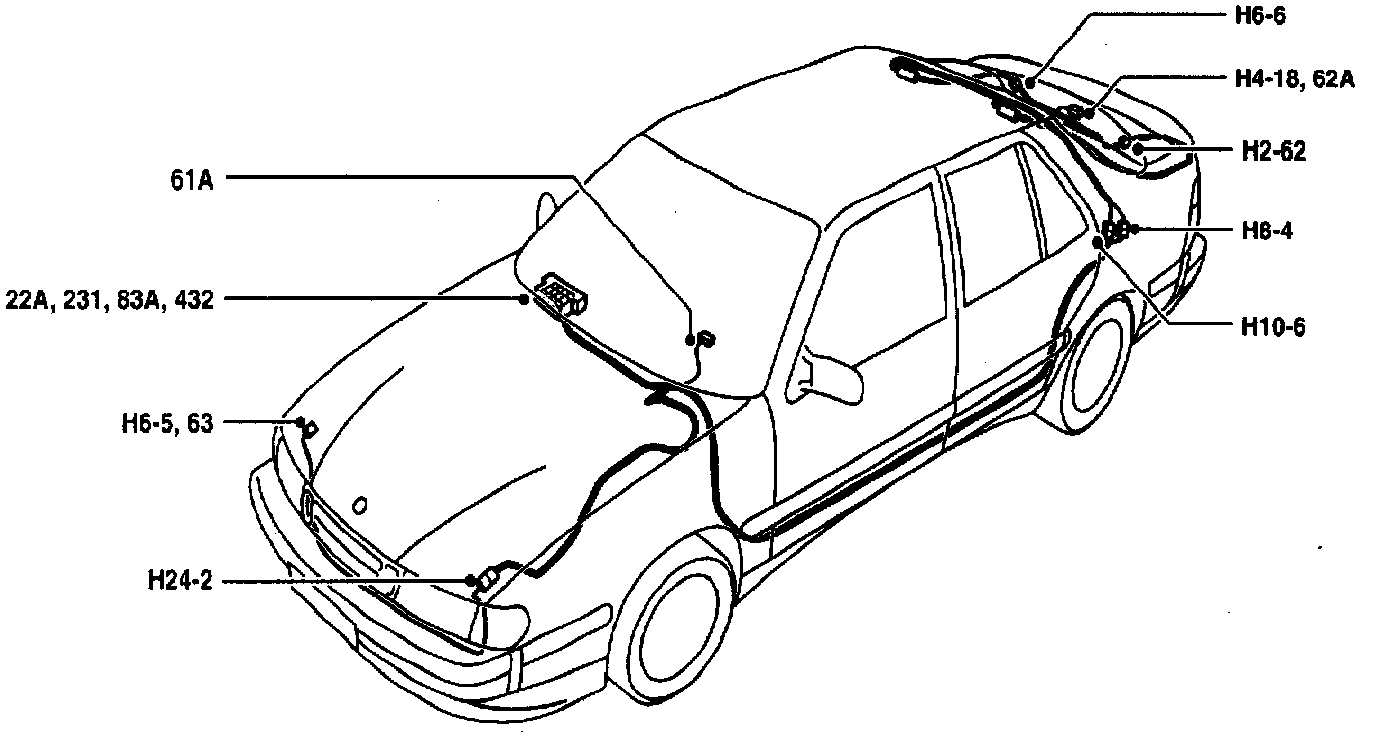

COMPONENT LOCATION VIEW

Rear Window Wipers CS: Component ID:

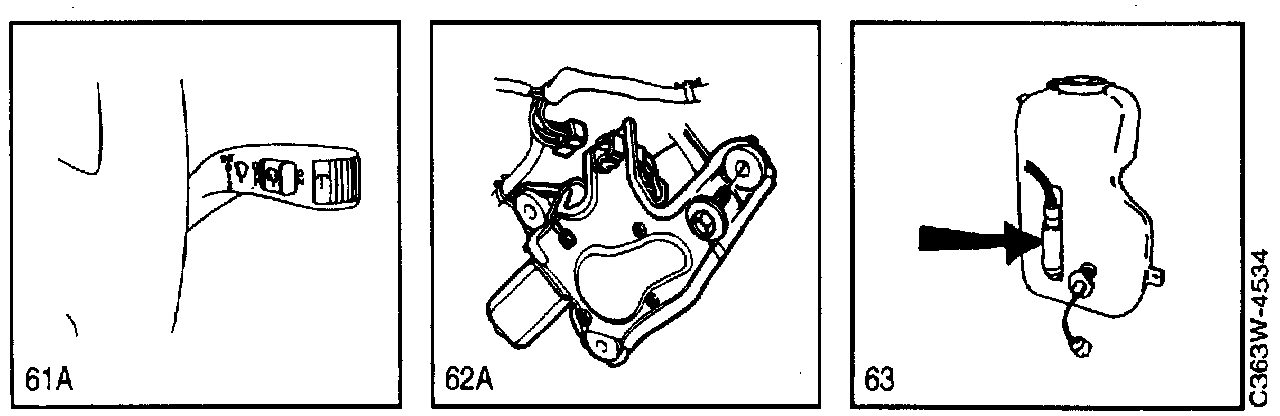

COMPONENT ID

22A Fuse board behind the cover flap in the glove box.
61A Switch, rear window wiper, on the windscreen wiper stalk switch on the right-hand side of the steering column.
62A Motor, rear window wiper, in the tailgate beside the window
63 Washer motor, on the washer fluid reservoir in the right-hand wheel housing.
83A Relay, intermittent wiper operation, in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
432 Relay, rear window washer, in main fuse box behind the glove box.

2-Pin Connector
H2-62 In the tailgate on the left-hand side.

4-Pin Connector
H4-18 Beside the rear window wiper motor.

6-Pin Connectors
H6-5 In the front right-hand corner behind the light cluster beside the washer fluid reservoir.
H6-6 To the right of the rear window wiper.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

10-Pin Connector
H10-6 By the left-hand rear wheel housing.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G5 Under the left-hand rear seat.
G6 Grounding point, negative distribution terminal, in main fuse box 22B behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G31 Grounding point, right-hand structural member
behind the right-hand headlamp.

DESCRIPTION OF OPERATION
Only the CS model is fitted with a rear window wiper. Current is supplied via fuse 8 to rear window wiper switch 61A, rear window washer relay 432 and to terminal 53A of rear window wiper motor 62A.

When switch 61A is in position 1, current is supplied from terminal 6 of the switch to the intermittent operation relay which then operates. The relay contacts close and current flows from terminal 53M to wiper motor terminal 53b. The wiper motor now runs at regular intervals. The intermittent operation relay controls the interval between wipes.

The wiper motor incorporates a mechanically actuated switch which controls the supply of current so that the motor always returns the wiper to the parked position after the circuit has been broken by the switch.

This is achieved by supplying the wiper motor with current from terminal 53a via the integral rest position switch. The current flows via the rest position switch, through the intermittent operation relay and then back to the rear window wiper motor.

When the wiper is in the rest position this circuit will be broken and if terminal 53b is then without current the motor will stop.

Washing starts when the spring-loaded button marked with the washer symbol is pressed (position B). Rear window washer relay 432 is then supplied with current from terminal 4. The relay operates and washer motor 63 is supplied with current from terminal 87 of the relay.

The intermittent operation relay is also supplied with current via terminal T and the rear window wiper runs at the same time as the rear window is being washed.

FAULT DIAGNOSIS HINTS
The rear window wiper will be operative when the ignition switch is in the Drive position.
1. Check that fuse 8 is intact and supplied with current.
2. Check the connectors, wiring harness and ground connections.

Rear Window Wipers CS: Fault Diagnosis Hints:

3. Check that the terminals given in the table are supplied with current in the different switch positions:
