Windshield Wipers

FAULT DIAGNOSIS HINTS
Windscreen Wipers
1. Check that fuse 5 is intact and supplied with current.
2. Check the connectors, wiring harness and ground connections.

Windscreen Wipers: Fault Diagnosis Hints:

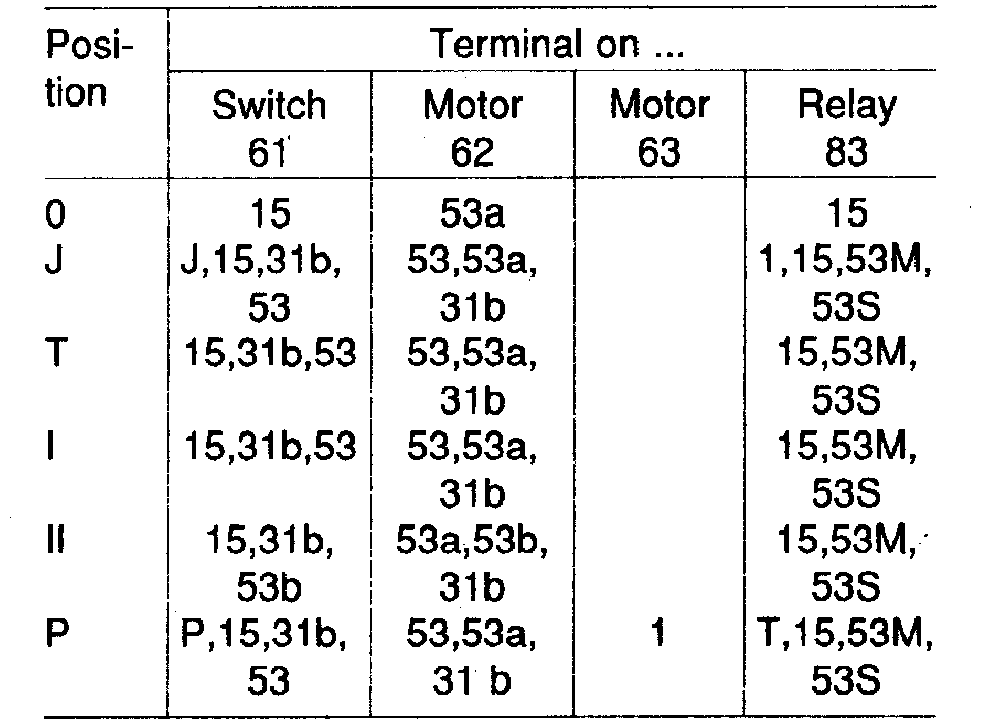

3. Check that the terminals given in the table are supplied with current in the different switch positions:
