Lighting and Horns: Locations

Headlamp Beam Adjustment: Component Location View:

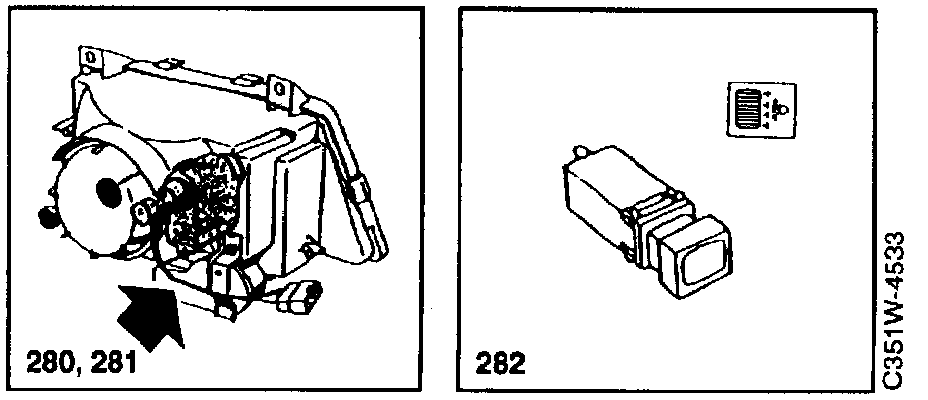

COMPONENT LOCATION VIEW

Headlamp Beam Adjustment: Component ID:

COMPONENT ID
11 Full beam in LH and RH head-lamps.
12 Dipped beam in LH and RH head-lamps.
16 Rheostat, instrument lighting, on dashboard between the steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
280 Motor, headlamp beam adjustment, adjacent to the left-hand headlamp.
281 Motor, headlamp beam adjustment, adjacent to the right-hand headlamp.
282 Switch, headlamp beam adjustment, on dashboard between the steering wheel and driver's door.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G2 Grounding point, battery tray, on the left-hand wheel housing.
G30 Grounding point, left-hand structural member
behind the left-hand headlamp.
G31 Grounding point, right-hand structural member
behind the right-hand headlamp.
