Starting and Charging: Locations

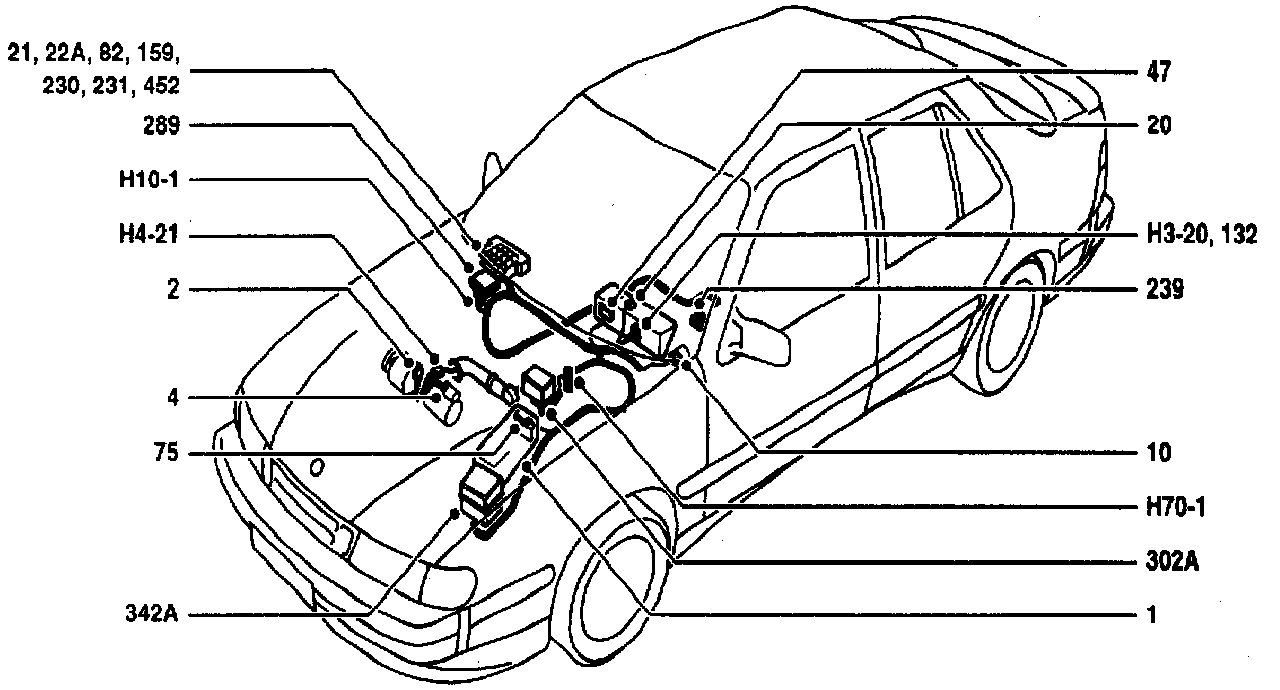

Starting And Charging System: Component Location:

COMPONENT LOCATION

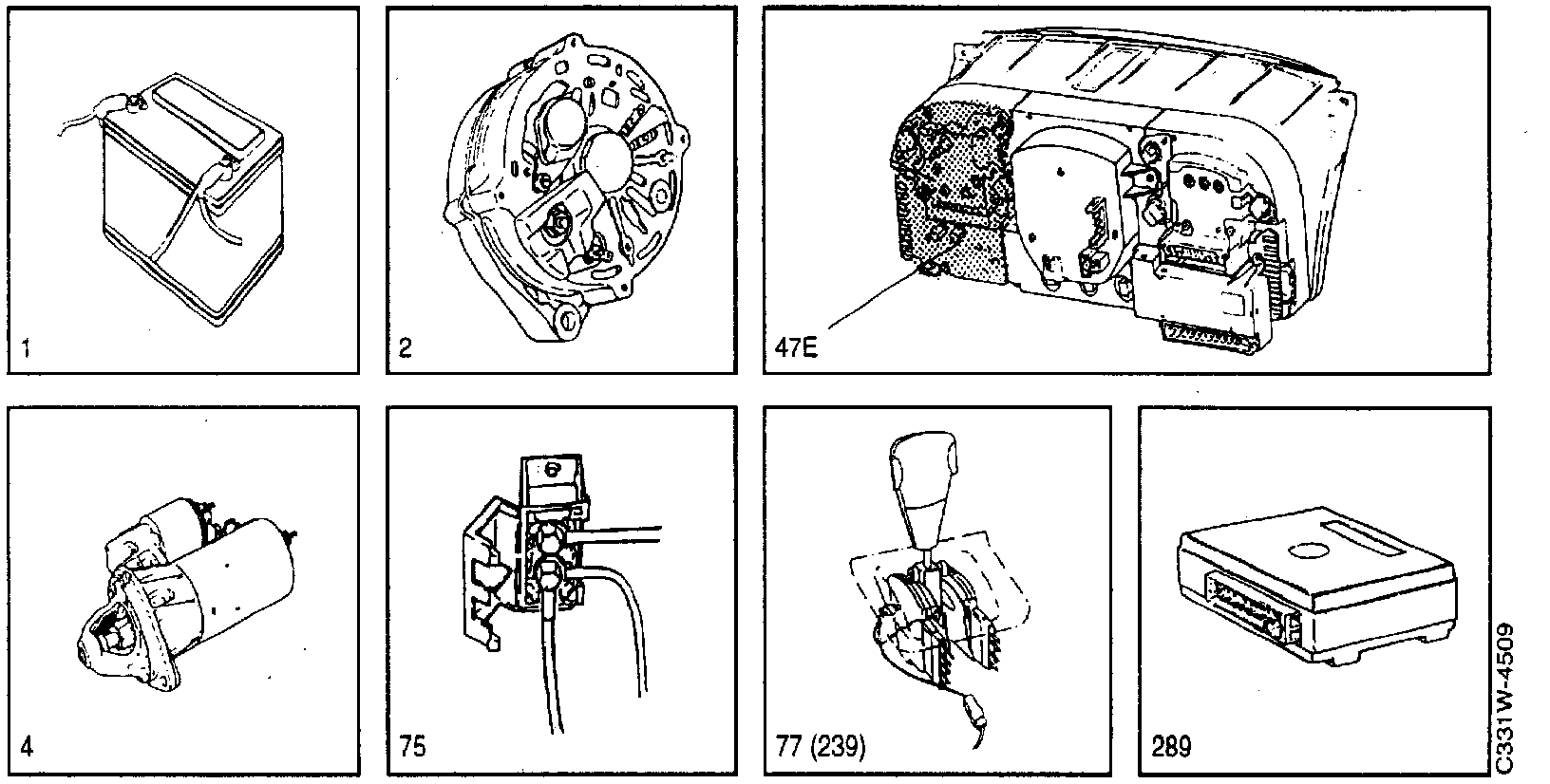

Starting And Charging System: Component ID:

COMPONENT ID

1 Battery in engine bay.
2 Generator at the rear of the engine on the right-hand side.
4 Starter motor on the left-hand side of the engine at the rear.
10 Lights switch on dashboard between steering wheel and driver's door.
20 Ignition switch to the right of the steering column.
21 Ignition switch relay in main fuse box behind the glove box.
22A Fuse holder behind the panel in the glove box/under the passenger airbag.
47 Main instrument display panel in the dashboard.
47E Charging indicator lamp in the main instrument display panel.
75 Distribution block, battery positive,
on the battery tray.
77 Starter interlock contacts (automatic transmission) in transmission range switch 239 beside the selector lever.
82 Relay, seat-belt and ignition key warning, in main fuse box behind the glove box.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.
239 Transmission range switch beside the selector lever.
289 Anti-theft alarm control module on the right-hand side under the dashboard, behind the knee shield.
452 Starter relay, anti-theft alarm in main fuse box behind the glove box.

3-Pin Connector
H3-20 Behind the main instrument display panel beside the speedometer (ME).

4-Pin Connector
H4-21 Beside the generator (V-6).

10-Pin Connector
H10-1 Under the dashboard to the left of the heater housing.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G2 Grounding point, battery tray, on the left-hand wheel housing.
G6 Grounding point, negative distribution terminal, in main fuse box behind the glove box.
G8 Grounding point, dashboard, beside the left-hand loudspeaker socket.
G25 Gearbox grounding point.
