Radio/Stereo

ʤ6Radio Installation Pre-wiring:

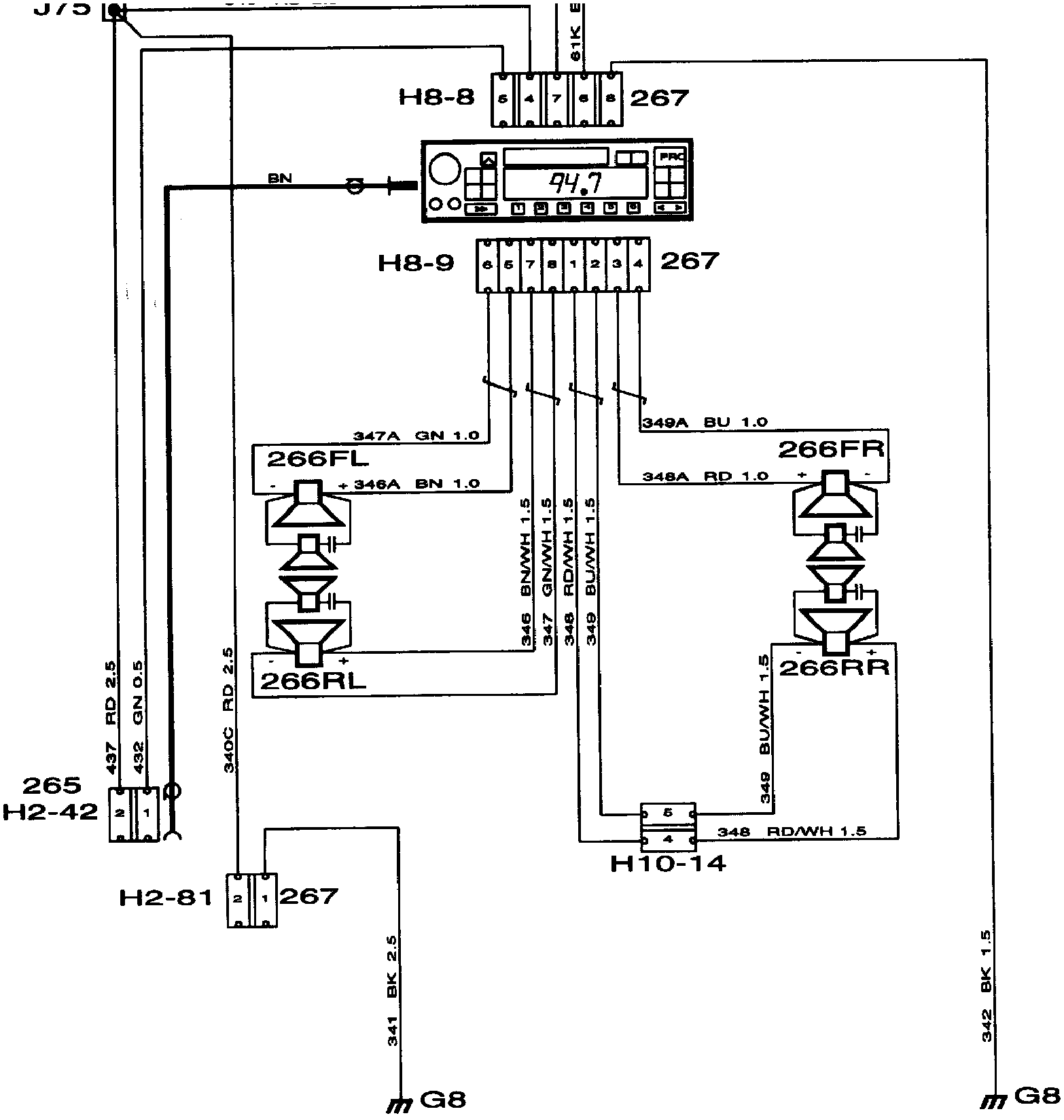

WIRING DIAGRAM

Radio Installation Pre-wiring: Component Location:

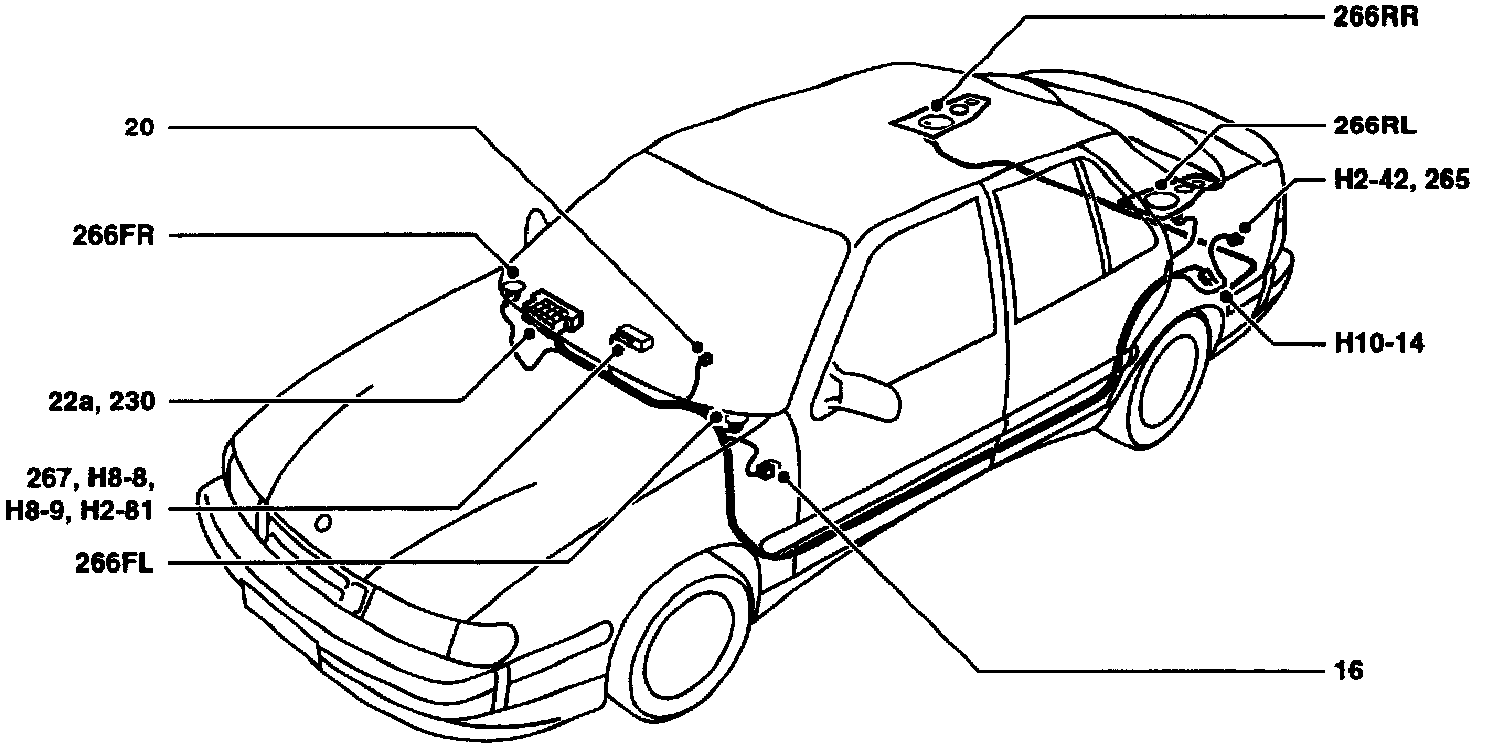

COMPONENT LOCATION VIEW

Radio Installation Pre-wiring: Component ID:

COMPONENT ID
16 Rheostat, lighting for controls and instruments, on the dashboard between the steering wheel and driver's door.
20 Ignition switch, on the right-hand side of the steering column.
22a Fuse board behind the access panel in the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
265 (H2-42) Beside the prepared location for the motorized aerial, on the left-hand side at the rear.
266 Loudspeaker sockets, two in the dash board, two in the parcel shelf.

2-Pin and 8-Pin Connectors
267 2-pin and 8-pin connectors for radio
(H2-81) connection, in the centre console.
(H8-8)
(H8-9)

10-Pin Connector
H10-14 In the luggage compartment on the left-hand side beside the filament monitor.

Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.

DESCRIPTION OF OPERATION
Cars that are not equipped with a factory-fitted audio system are pre-wired for radio installation and provided with two 8-pin connectors, one for power supply, etc. and one for the connection of loudspeakers.

Cars for certain markets also have a 2-pin connector, H2-81, which provides the power supply for an amplifier or similar equipment.

The connectors for the motorized aerial are situated behind the luggage compartment trim on the left-hand side of the luggage compartment.

FAULT DIAGNOSIS HINTS
1. Check the radio's power supply and ground connections.
2. Check the fuses integrated into the radio/cassette and amplifier.
3. Check the connectors
4. Check the wiring harness for continuity and shorting to ground.
