Connector Locations
Connectors And Grounding Points (part 1 Of 14):
Connectors And Grounding Points (part 2 Of 14):
Connectors And Grounding Points (part 3 Of 14):
Connectors And Grounding Points (part 4 Of 14):
Connectors And Grounding Points (part 5 Of 14):
Connectors And Grounding Points (part 6 Of 14):
Connectors And Grounding Points (part 7 Of 14):
Connectors And Grounding Points (part 8 Of 14):
Connectors And Grounding Points (part 9 Of 14):
Connectors And Grounding Points (part 10 Of 14):
Connectors And Grounding Points (part 11 Of 14):
Connectors And Grounding Points (part 12 Of 14):
Connectors And Grounding Points (part 13 Of 14):
Connectors And Grounding Points (part 14 Of 14):
List of components
4 Starter motor, on the rear of the engine.
20 Ignition switch, on the right of the steering column
22A Fuse holder, dashboard
23 Relay, direction indicators
25 Switch, hazard flashers
27FL Direction indicator lamp, front left
27RL Direction indicator lamp, rear left

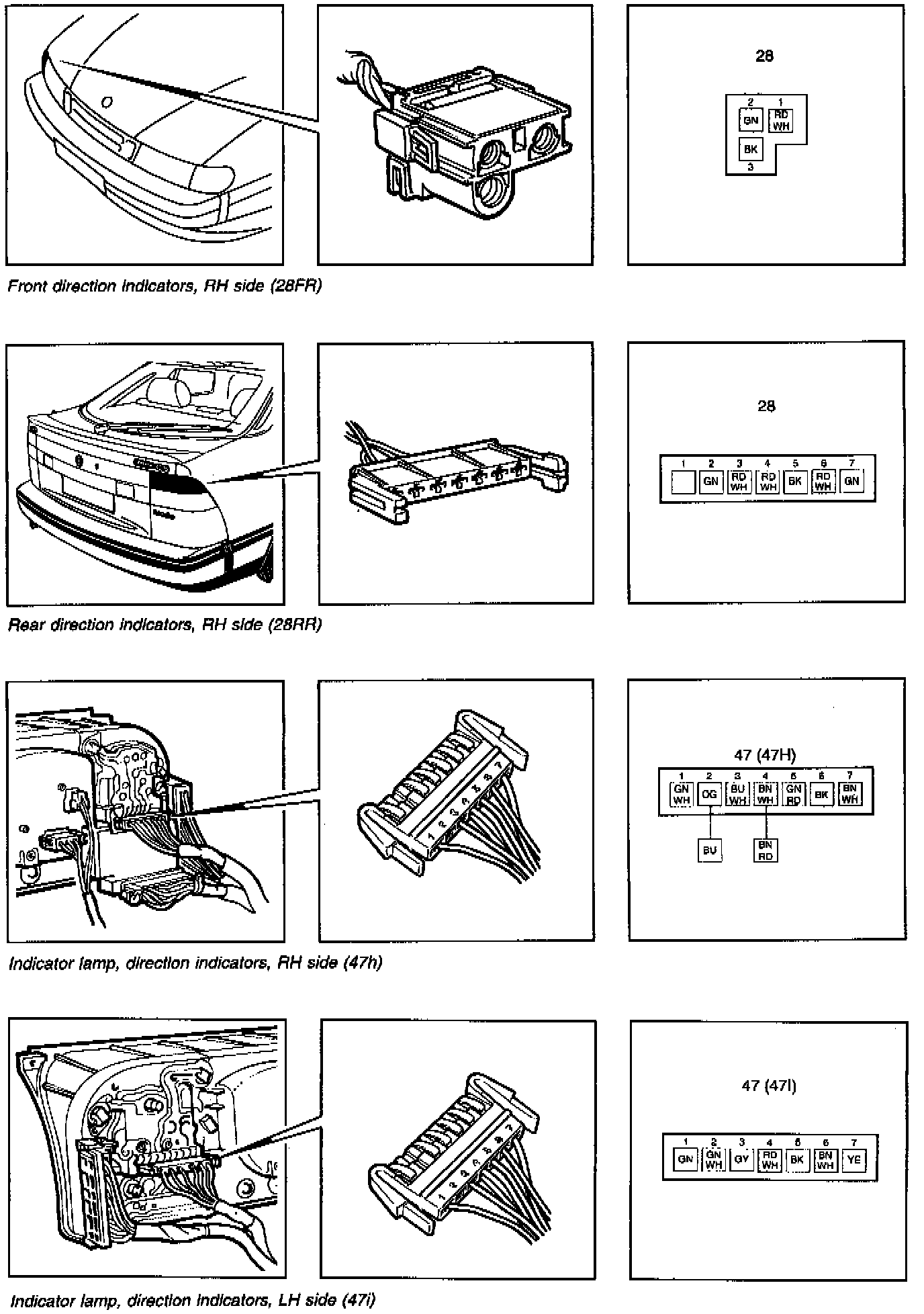

28FR Direction indicator lamp, front right
28RR Direction indicator lamp, rear right
47h Indicator lamp, direction indicators, left
47i Indicator lamp, direction indicators, right
54D Switch, driver's door
54P Switch, passenger's door
54RL Door switch, rear left
54RR Door switch, rear right
56 Switch, luggage compartment lighting
75 Distribution block, battery pulse
82 Relay, seat belt/key reminder
89LH Side direction indicator, left
89RH Side direction indicator, right
102 Relay, fuel pump
151 Relay, delayed interior lighting
159 Distribution terminal, +15 circuit
175 Electronic control module, central locking
184H Motor, central locking, tailgate
208D Door indication

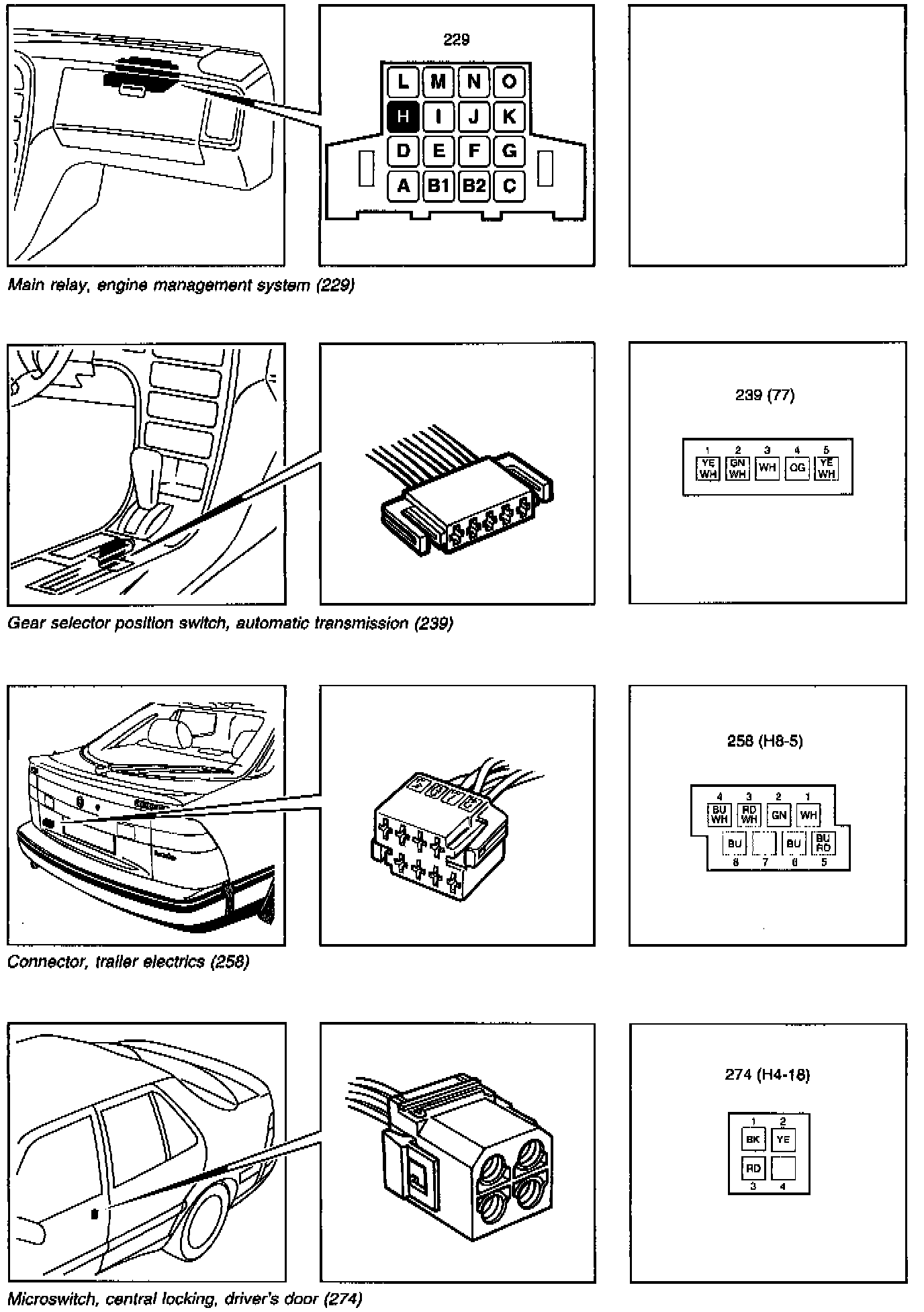

229 Main relay, engine management system
230 Distribution terminal, +30 circuit
239 Gear selector position switch 2, automatic transmission
258 Connector, trailer electrics
274 Microswitch, central locking, driver's door

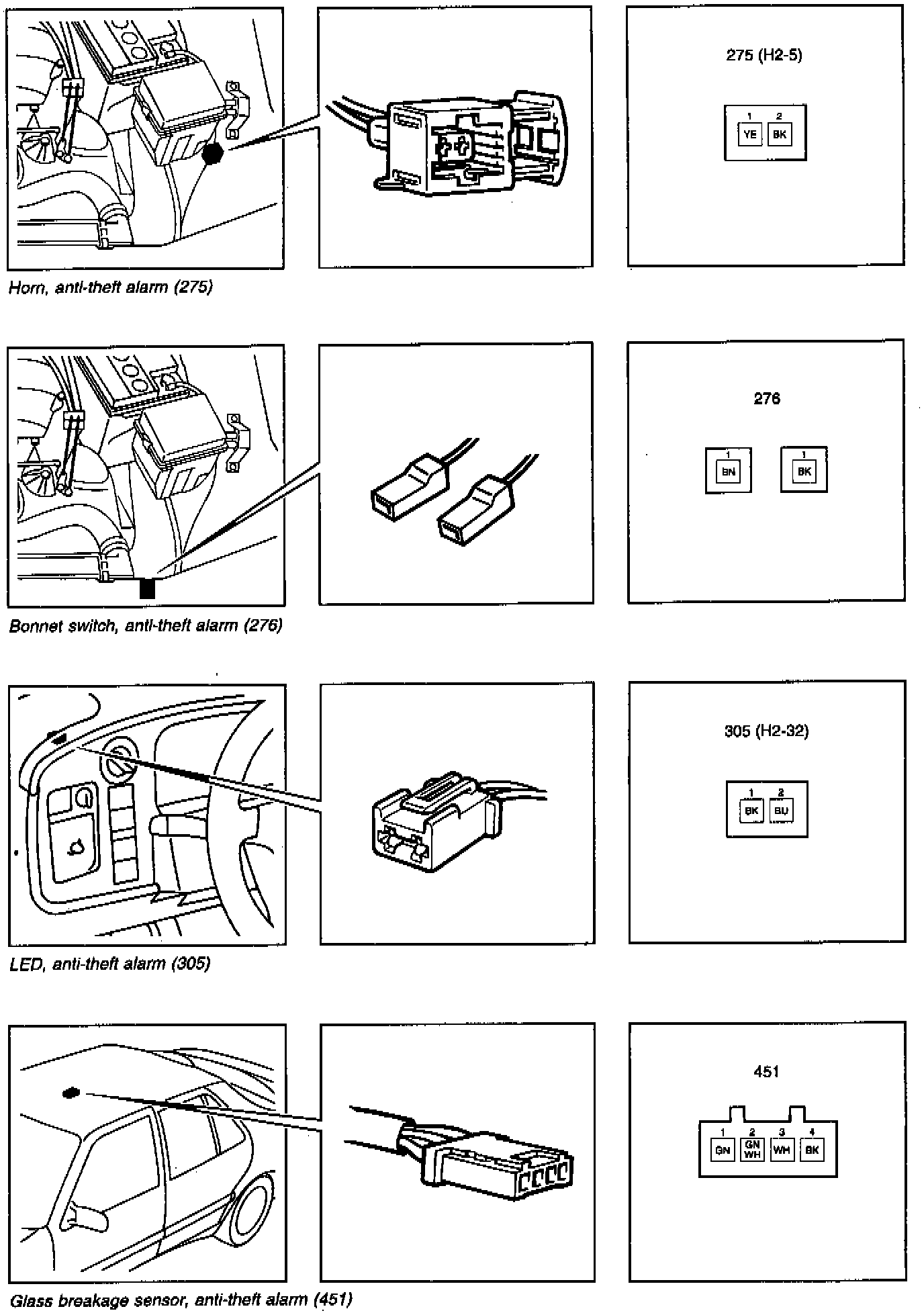

275 Horn, anti-theft alarm
276 Hood switch, anti-theft alarm
289 Electronic control module, anti-theft alarm, behind glove box
305 LED, anti-theft alarm

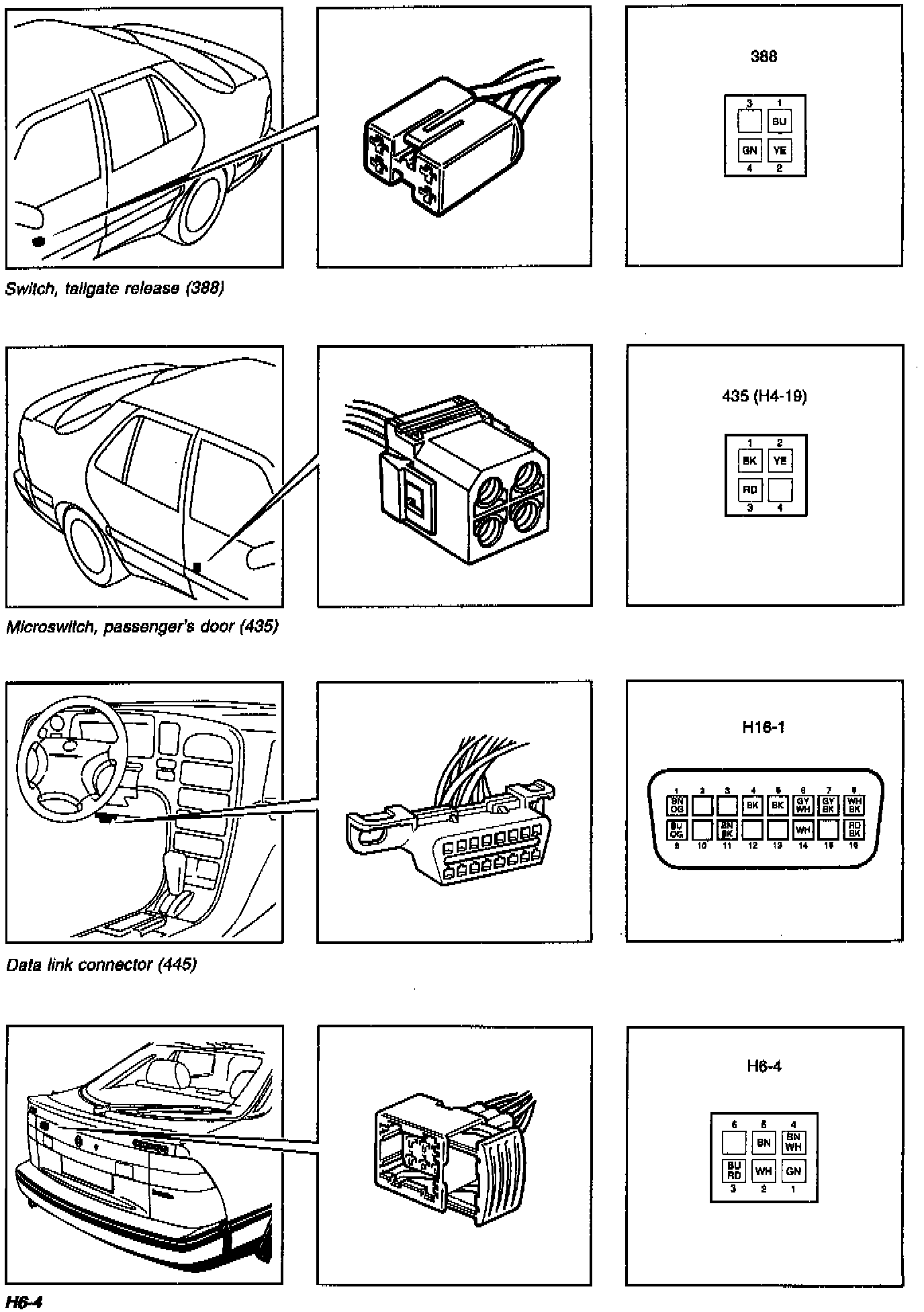

388 Switch, tailgate
430 Electronic control module, Saab TRIONIC
435 Microswitch, central locking, passenger's door
445 Data link connector
451 Glass breakage sensor, in the interior lighting panel

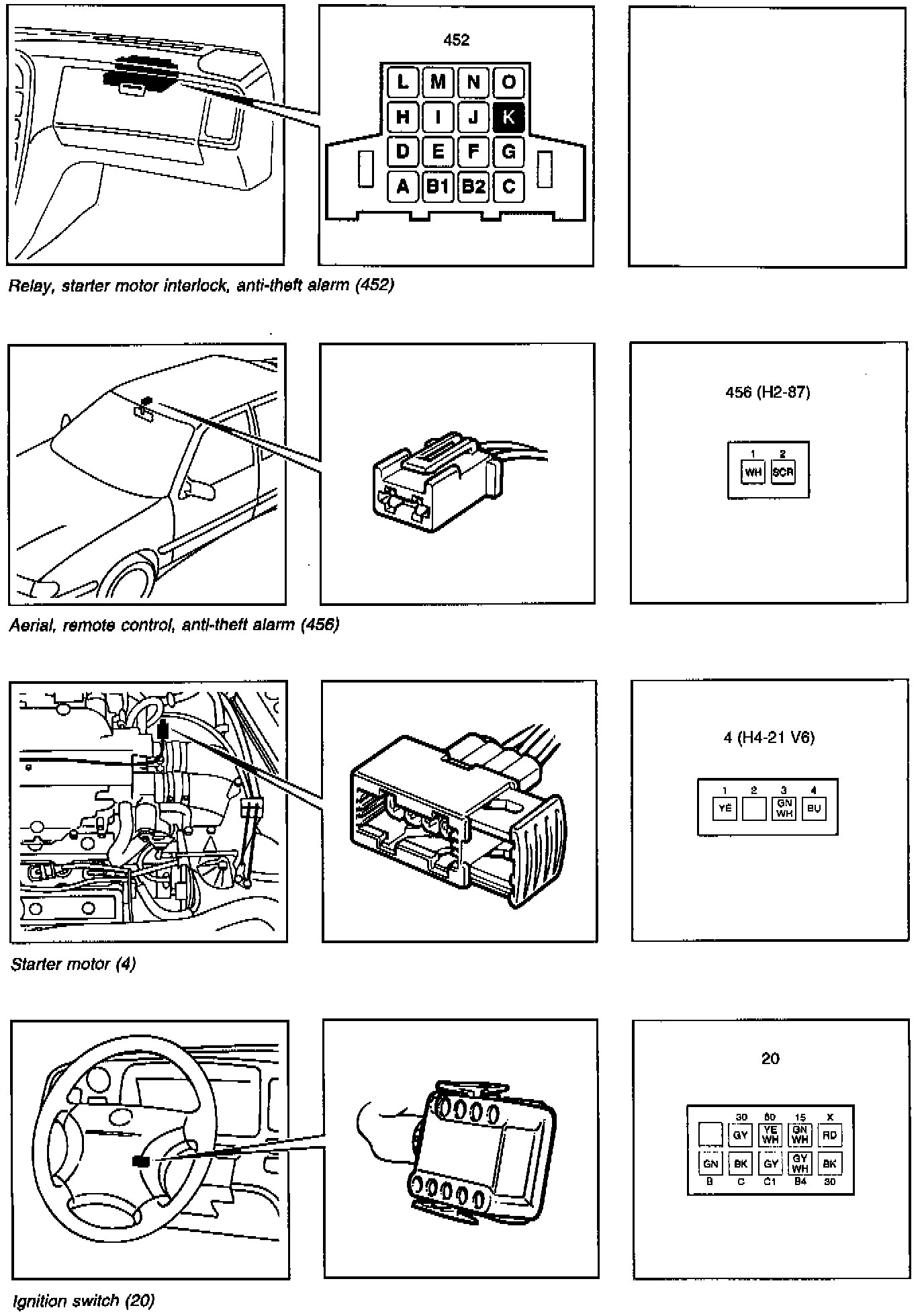

452 Relay, starter motor interlock, anti-theft alarm
456 Aerial, remote control, anti-theft alarm
510 Electronic control module, Motronic 2.8.1.
583 Electronic control module, anti-theft alarm with VSS
587 Electronic control module, Motronic 5.2
589 Electronic control module, Saab Trionic OBD II
Grounding points
G5 Under rear seat, on left
G6 Distribution terminal, negative, in main fuse box 22B behind the glove box

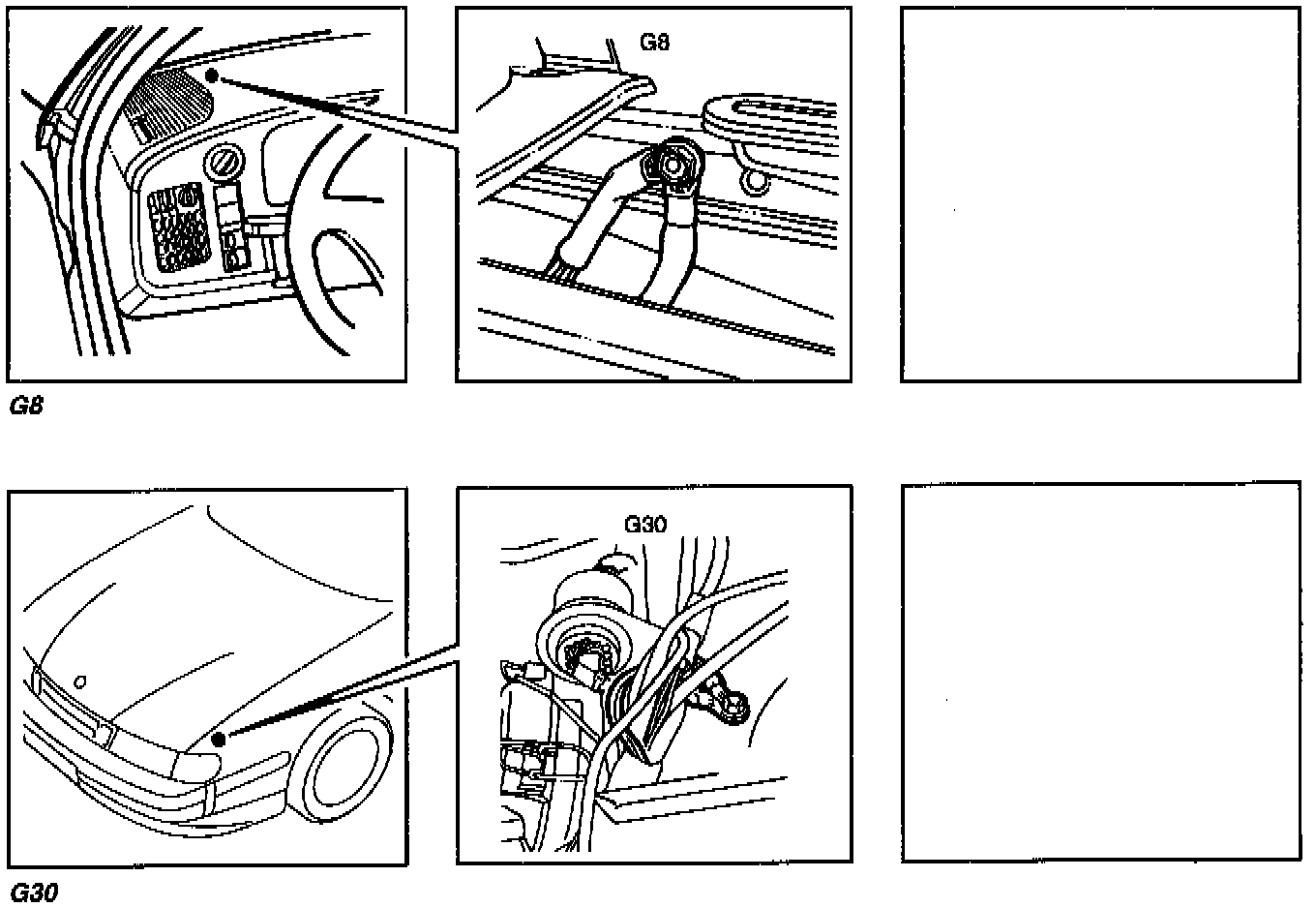

G8 Grounding point in the dashboard, beside left-hand front loudspeaker socket
G30 Grounding point, left-hand structural member, behind left-hand headlamp
1-pin connector
H1-7 At wiring harness branch for anti-theft alarm control module.
2-pin connectors
H2-5 Front left corner in engine bay under main fuse box 342
H2-15 In right-hand A pillar
H2-16 Beside lock mechanism inside right-hand front door
H2-22 Adjacent to left-hand side direction indicator (green switch)
H2-23 Adjacent to right-hand side direction indicator (green switch)
H2-32 Adjacent to LED by left-hand loudspeaker grille
H2-33 By left-hand A pillar
H2-34 Adjacent to lock mechanism inside left- hand front door
H2-87 Under roof console adjacent to interior rearview mirror
4-pin connectors
H4-13 In driver's door (adjacent to microswitch 274)
H4-19 Beside lock mechanism in passenger's door
H4-21 Adjacent to the generator, V6 engine
6-pin connectors
H6-4 In tailgate on left-hand side adjacent to rear window

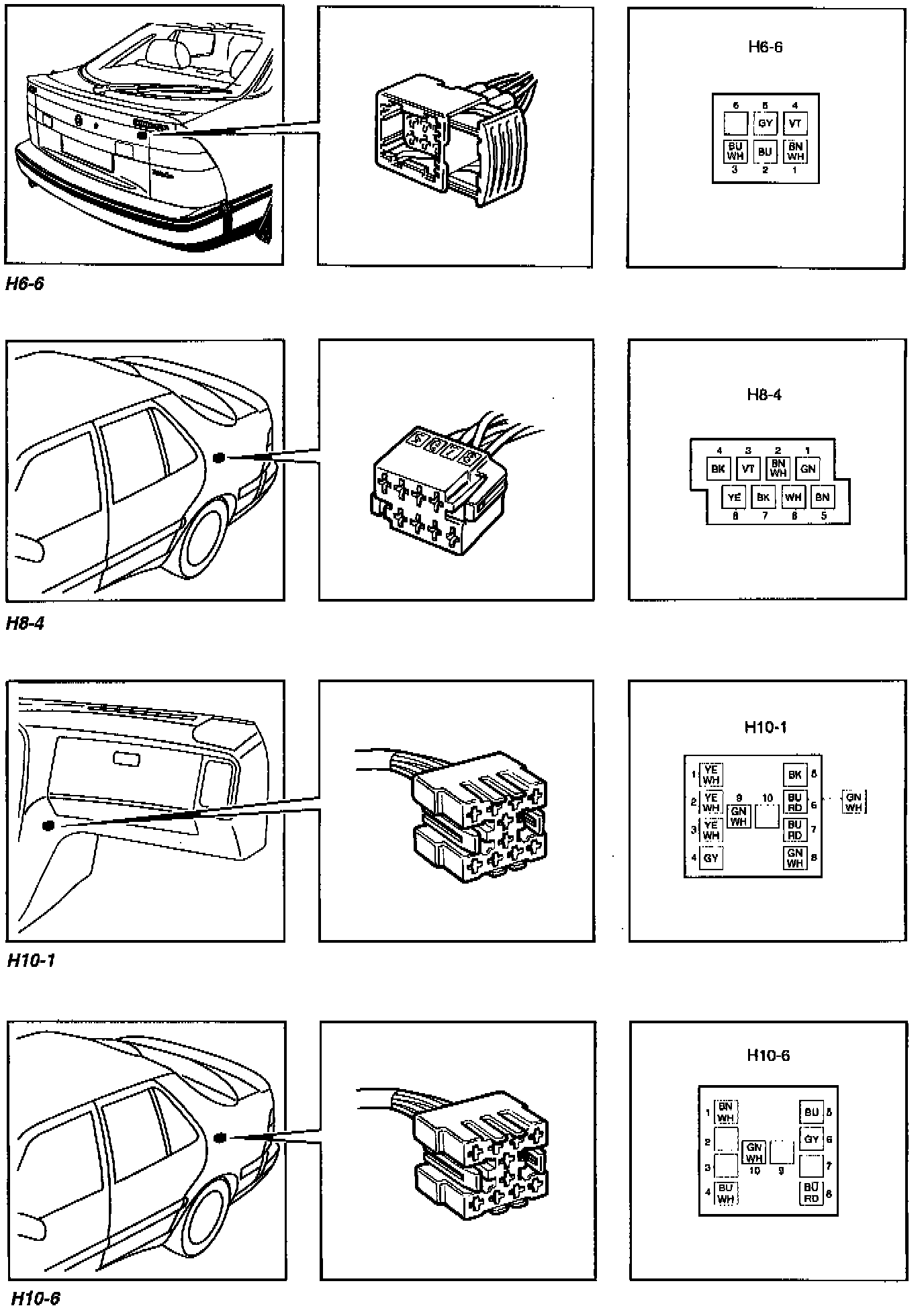

H6-6 To the right of the rear window wiper motor
H6-8 In the boot lid beside motor 188 (4D, CS)
8-pin connectors
H8-4 By the left-hand rear wheel housing.
H8-5 By the left-hand rear light cluster
10-pin connectors
H10-1 Under the anti-theft alarm control module adjacent to the glove box
H10-6 By the left-hand rear wheel housing.
H10-11 At far left under the dashboard (behind the knee shield)
H10-14 In the luggage compartment on the left hand side by the filament monitor
16-pin connector
H16-1 Data link connector
22-pin connectors
H22-1 Behind the cable lead-through in left-hand A pillar
H22-2 Behind the cable lead-through in right-hand A pillar
24-pin connector
H24-2 Behind the left-hand headlamp
70-pin connector
H70-1 In the engine bay behind the bulkhead partition.
