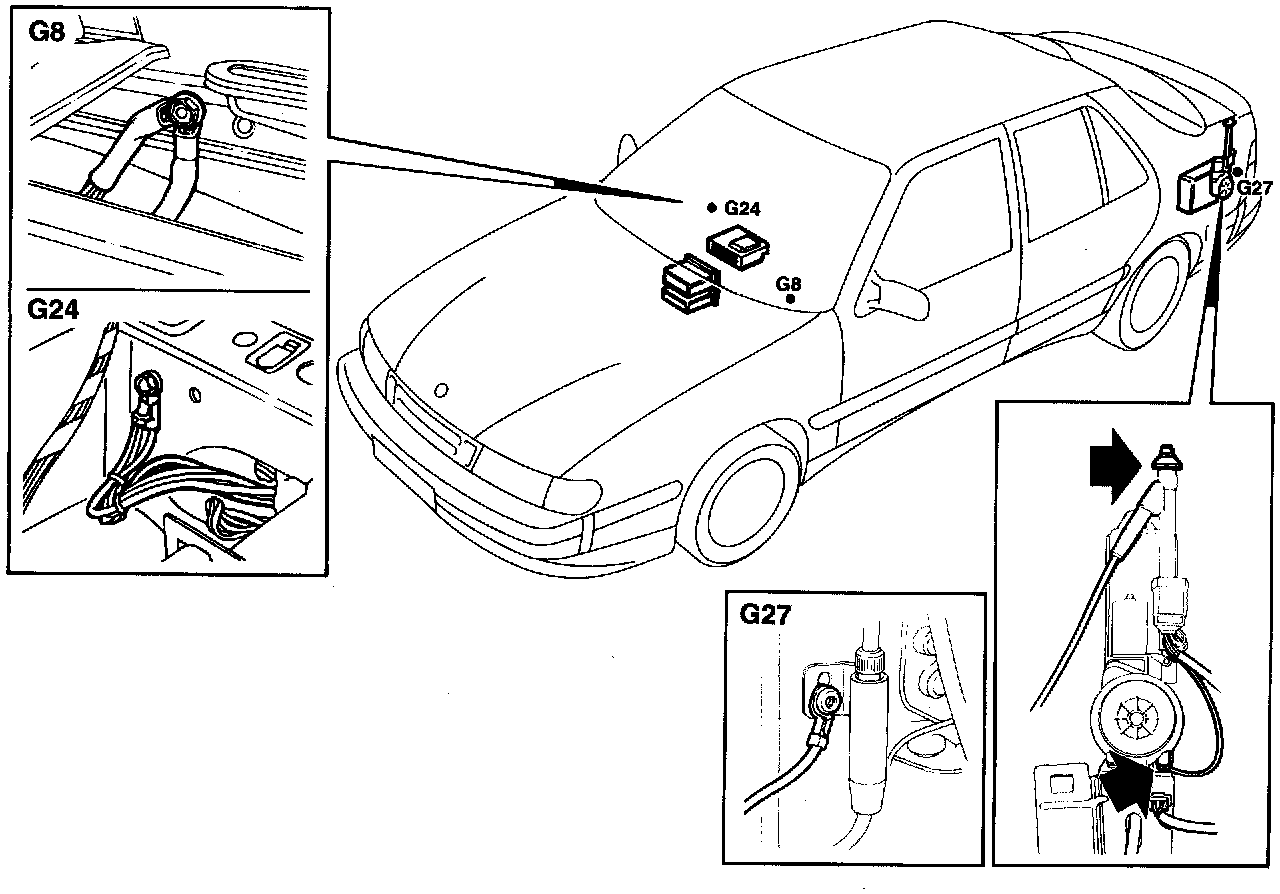

Grounding Points

The radio and cassette unit are grounded to grounding point G8.

The amplifier is grounded to grounding point G8 (EU) or G24 (US).

The antenna is grounded via the aerial bracket to grounding point G27.

The CD player/changer is grounded via the radio and cassette unit.
