Trip Computer: Service and Repair

To Remove

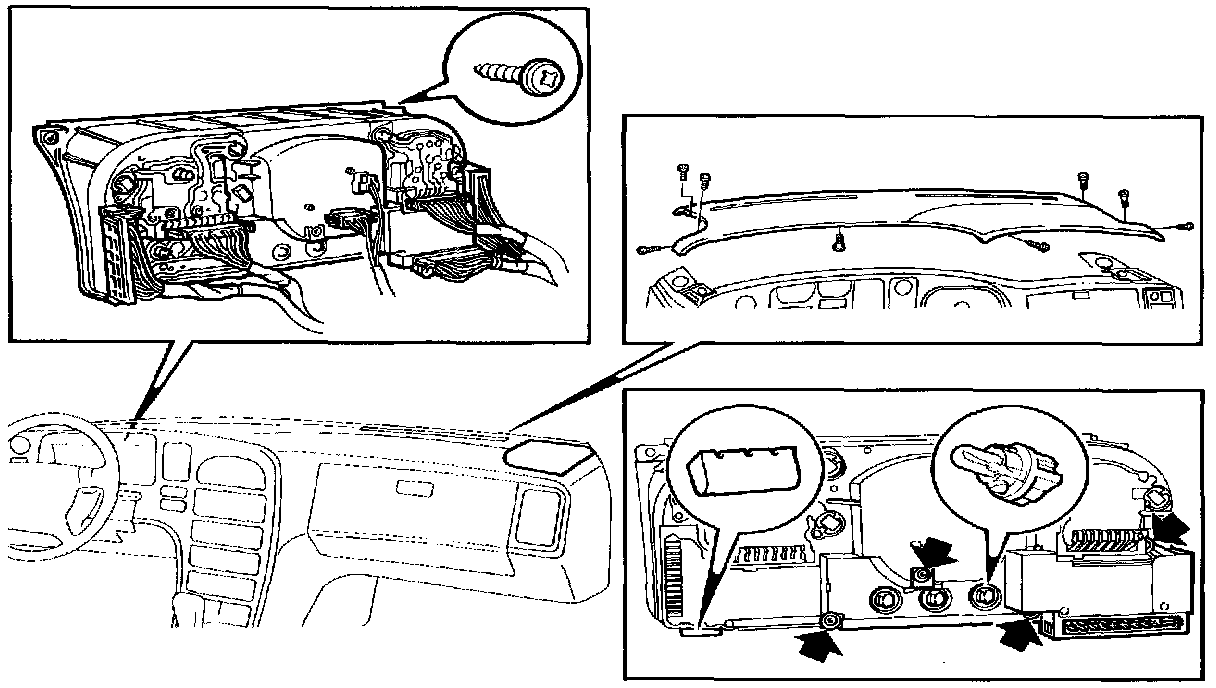

1 Remove the trim from both A pillars, both speaker grilles and the facia cover.
2 Remove the two screws holding the instrument.
3 Lift up the instrument a little bit and remove the 7 connectors on the back of the instrument.
4 Lift the instrument out of the facia.

Important
Be careful that the rubber supports on each side of the instrument do not become detached.

5 Remove the 3 screws securing the Electronic Display Unit (EDU) control module to the back of the instrument.

To change lamps
6 Turn the lamp holder on the back of the EDU control module one quarter turn and lift out the lamp and socket.

Lamps
1.8 W with T4.7 Neo Wedge socket fixed to the lamp.

To Install
Installation is in reverse order.
