Power Locks: Locations

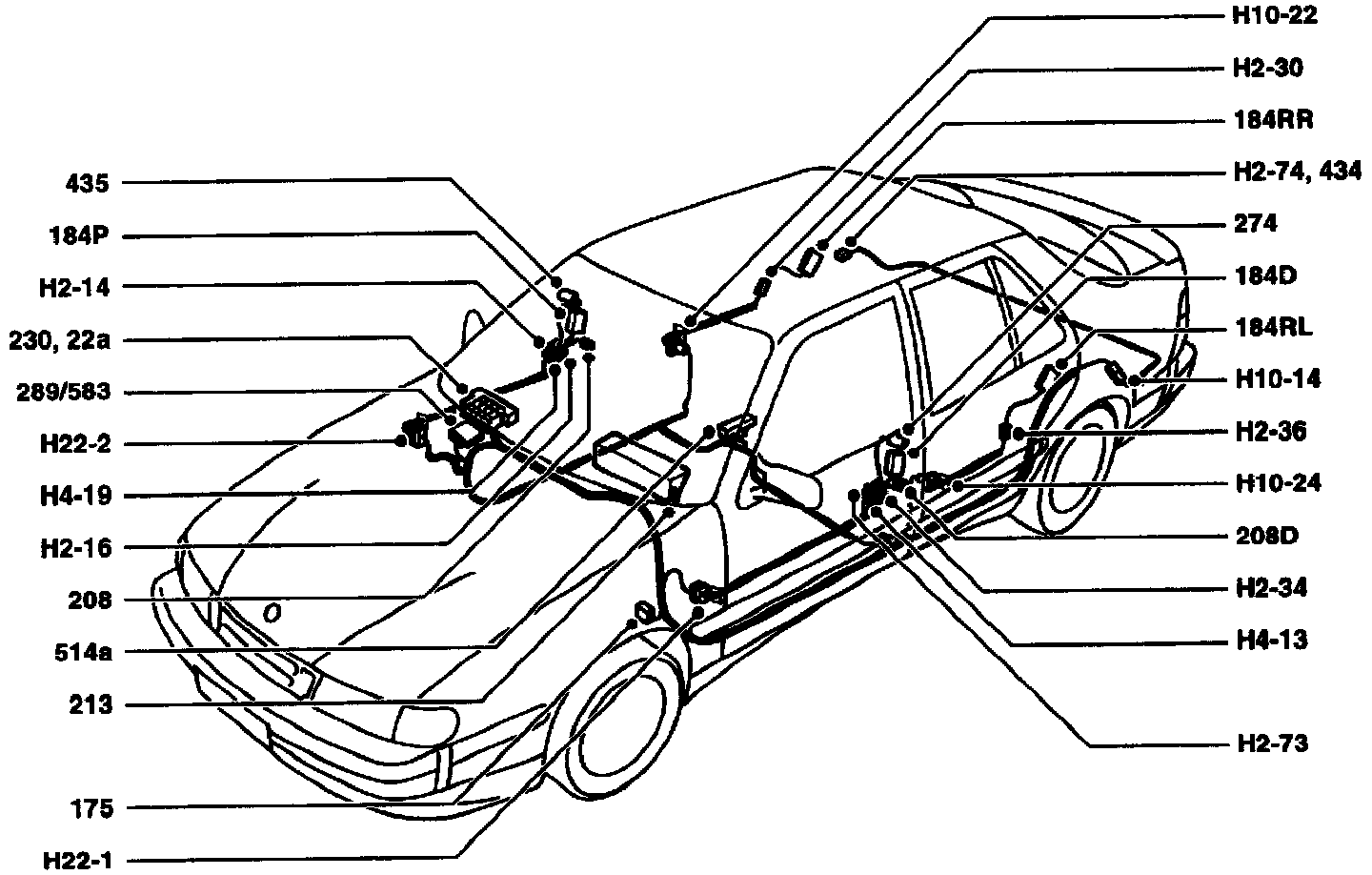

Central Locking System: Component Location:

COMPONENT LOCATION VIEW

Central Locking System: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
175 Control module, central locking system, on a bracket under the dashboard on the left-hand side.
184D Motor, central locking system, in the driver's door.
184P Motor, central locking system, in the passenger's door.
184RL Motor, central locking system, in the rear left-hand door.
184RR Motor, central locking system, in the rear right-hand door.
208 Door lock indication, in the locking mechanism inside each door.
213 Pictogram, in the main instrument display panel.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
274 Microswitch, beside the lock cylinder in the driver's door.
289 Control module, anti-theft alarm, on the right-hand side under the dashboard behind the knee shield.
434 Motor, central locking system, fuel filler flap, adjacent to the fuel filler flap.
435 Microswitch, beside the lock cylinder in the front passenger's door.
514a Switch, simultaneous actuation of the central locking system, in window lift switch assembly (386) on the centre console.
583 Control module, anti-theft alarm with immobilizer, under the dashboard on the right-hand side behind the knee shield.

2-Pin Connectors
H2-14 In the right-hand front door, beside the locking mechanism.
H2-16 Beside the locking mechanism inside the right-hand front door.
H2-30 In the right-hand rear door, beside the locking mechanism.
H2-34 Beside the locking mechanism inside the left-hand front door.
H2-36 In the left-hand rear door, beside the locking mechanism.
H2-73 Beside the locking mechanism in the driver's door.
H2-74 On the right-hand side in the luggage compartment beside the central locking motor for the fuel filler flap.

4-Pin Connectors
H4-13 In the left-hand front door, adjacent to the microswitch.
H4-19 In the passenger's door beside the locking mechanism.

10-Pin Connectors
H10-14 In the luggage compartment to the left beside the rear filament monitor.
H10-22 In the right-hand B pillar.
H10-24 In the left-hand B pillar.

22-Pin Connectors
H22-1 Behind the cable entry in the left-hand A pillar.
H22-2 Behind the cable entry in the right-hand A pillar.

Grounding Points
G6 Grounding point, negative distribution terminal, in the main fuse box (22B) behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G14 Grounding point, left-hand front seat member.
