Mirrors: Description and Operation

The door mirrors are operated by means of a four-position switch and a selector on the driver's door.

Current is supplied from fuse 2 to terminal 3 of operating switch 124 which has four positions. Using selector 125, you can choose which of the two door mirrors, left or right, is to be adjusted with switch 124.

Electrically Adjustable Door Mirrors:

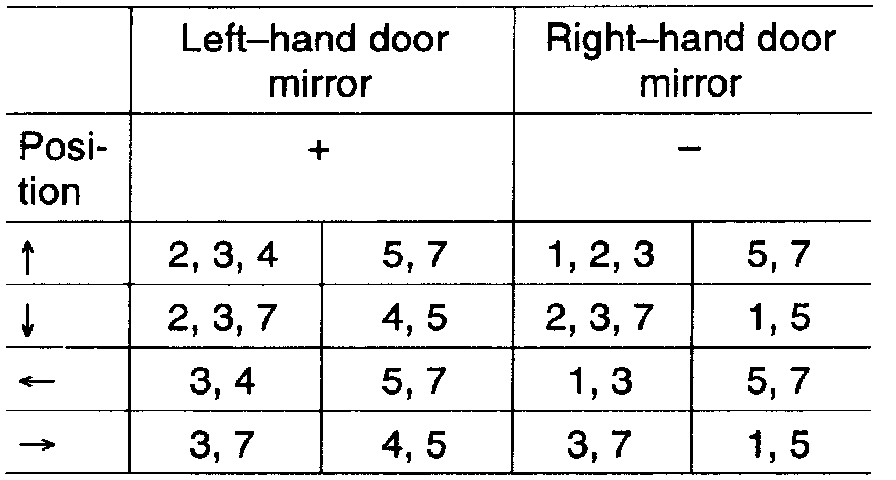

Check in the above image that the switch connections are supplied with current and grounded in each position.
