Electrically Adjustable Driver's Seat

Electrically Adjustable Driver's Seat With Memory: Component Location:

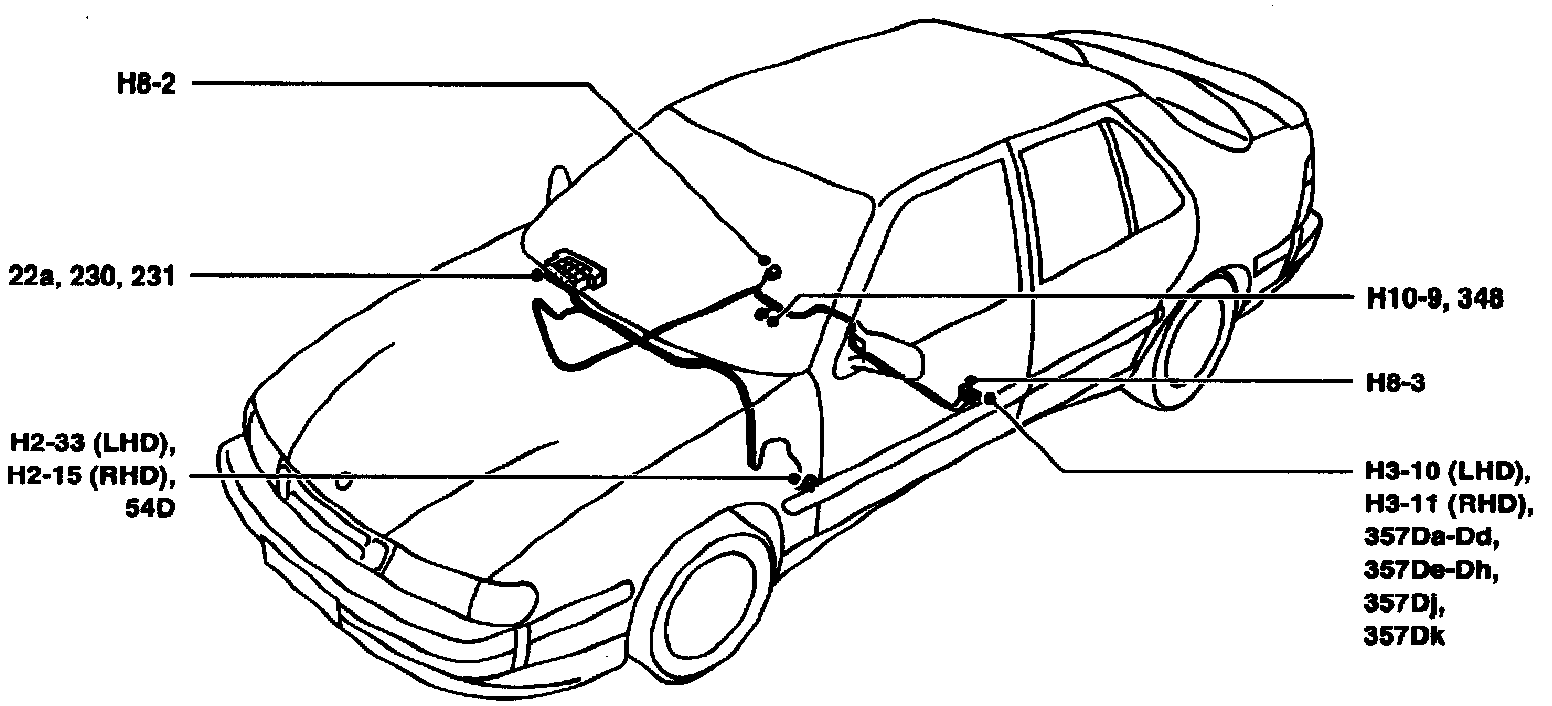

COMPONENT LOCATION VIEW

Electrically Adjustable Driver's Seat With Memory: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
54D Door switches in the driver's door pillar.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
357D Switch, electrically adjustable driver's seat, on the outer side of the seat.
357Da-d Electric motors, driver's seat, under the seat.
357De-h Position sensor, electrically adjustable driver's seat with memory, under the seat on the corresponding motor shaft.
357Dj Switch, memory, on the outer side of the driver's seat.
357Dk Electronic control module, electrically adjustable driver's seat with memory, under the seat.
445 (H16-1) Diagnostics test socket, below the steering wheel.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-33 In the left-hand A pillar.

3-Pin Connectors
H3-10 Under the left-hand seat, to the left on the electronics console.
H3-11 Under the right-hand seat, to the right on the electronics console.

8-Pin Connectors
H8-2 Under the right-hand seat.
H8-3 Under the left-hand seat.

10-Pin Connector
H10-26 Under the driver's seat.

Grounding Points
G14 Grounding point, left-hand front seat member.
G24 Grounding point, right-hand front seat member.
