Electrically Adjustable Front Seat

Electrically Adjustable Front Seat: Component Location:

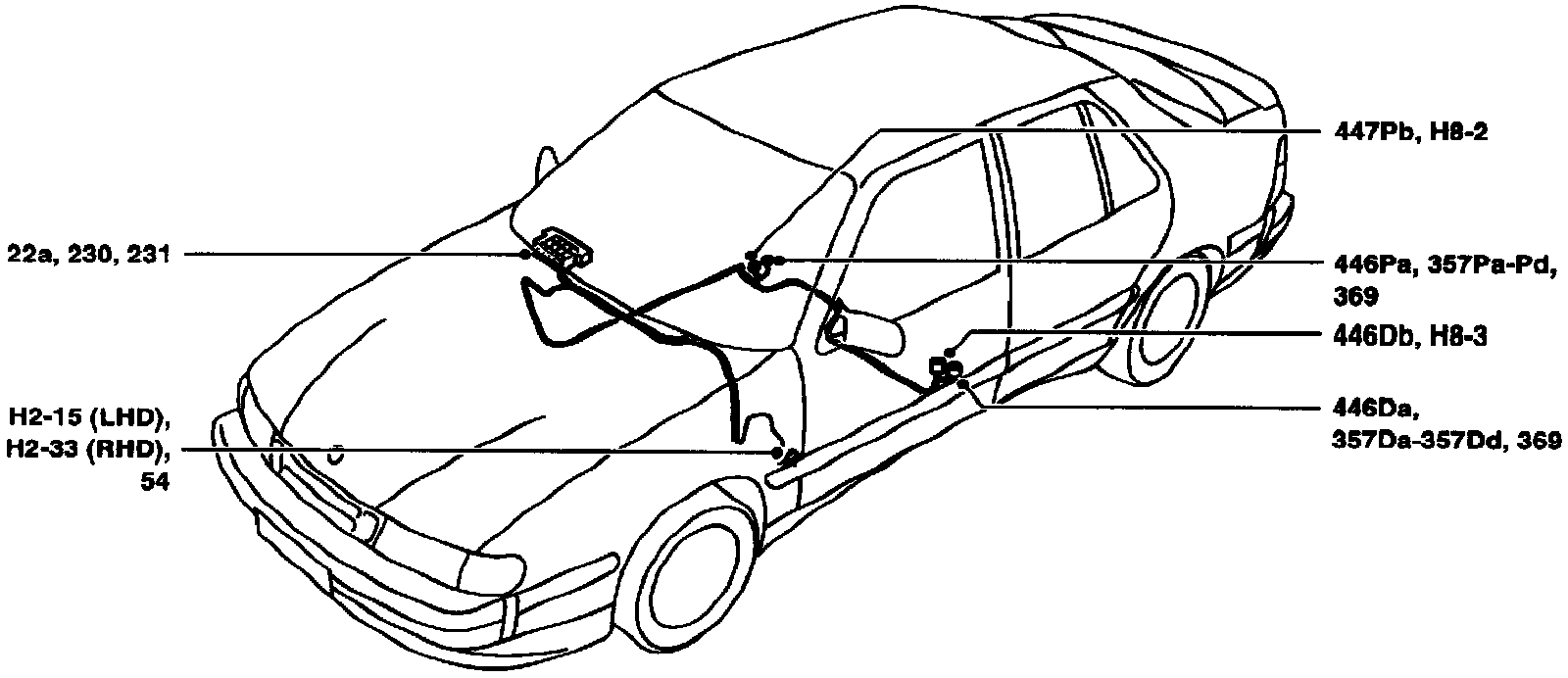

COMPONENT LOCATION VIEW

Electrically Adjustable Front Seat: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
54D Door switches in the driver's door pillar.
54 Door switches in the passenger's door pillar.
230 Distribution terminal (+30 circuit), in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
358 Switch, electrically adjustable passenger seat, on the outer side of the seat.

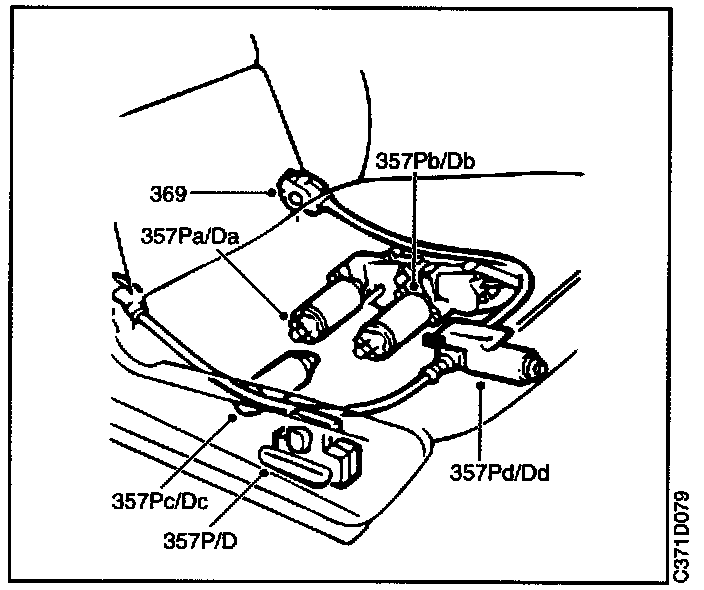

357Da-d Electric motors, driver's seat, under the seat.
357Pa-d Electric motors, passenger's seat, under the seat.
369 Microswitch, seat backrest, between the seat cushion and backrest beside the inner edge of each seat.
446Da Relay for electrically adjustable driver's seat via the ignition switch, under the seat.
446Db Relay for electrically adjustable driver's seat via the door switch, under the seat.
446Pa Relay for electrically adjustable passenger's seat via the ignition switch, under the seat.
446Pb Relay for electrically adjustable passenger's seat via the door switch, under the seat.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-33 In the left-hand A pillar.

3-Pin Connectors
H3-10 Under the left-hand seat, to the left on the electronics console.
H3-11 Under the right-hand seat, to the right on the electronics console.

8-Pin Connector
H8-2 Under the passenger's seat.

10-Pin Connectors
H10-26 Under the driver's seat.
H10-27 Under the passenger's seat.

Grounding Points
G14 Grounding point, left-hand front seat member.
G24 Grounding point, right-hand front seat member.
