Vacuum Pump, Brake System

Vacuum Pump, Brake System: Component Location:

COMPONENT LOCATION VIEW

Vacuum Pump, Brake System: Component ID:

COMPONENT ID
1 Battery in the engine bay.
75 Distribution block, battery positive.
29 Brake lights switch beside the pedals.
342a Main fuse board in the engine bay.

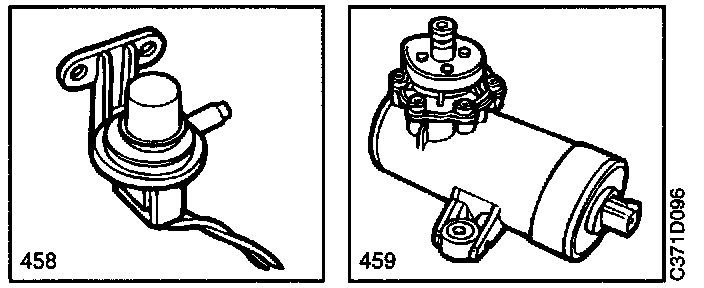

458 Vacuum switch.
459 Vacuum pump.
460 Relay, vacuum pump, on the main relay board in the engine bay.

10-Pin Connector
H10-15 Behind the left-hand headlamp.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G2 Grounding point, behind the battery on the left-hand wheel housing.
G25 Grounding point, on the gearbox.
