Connector Locations

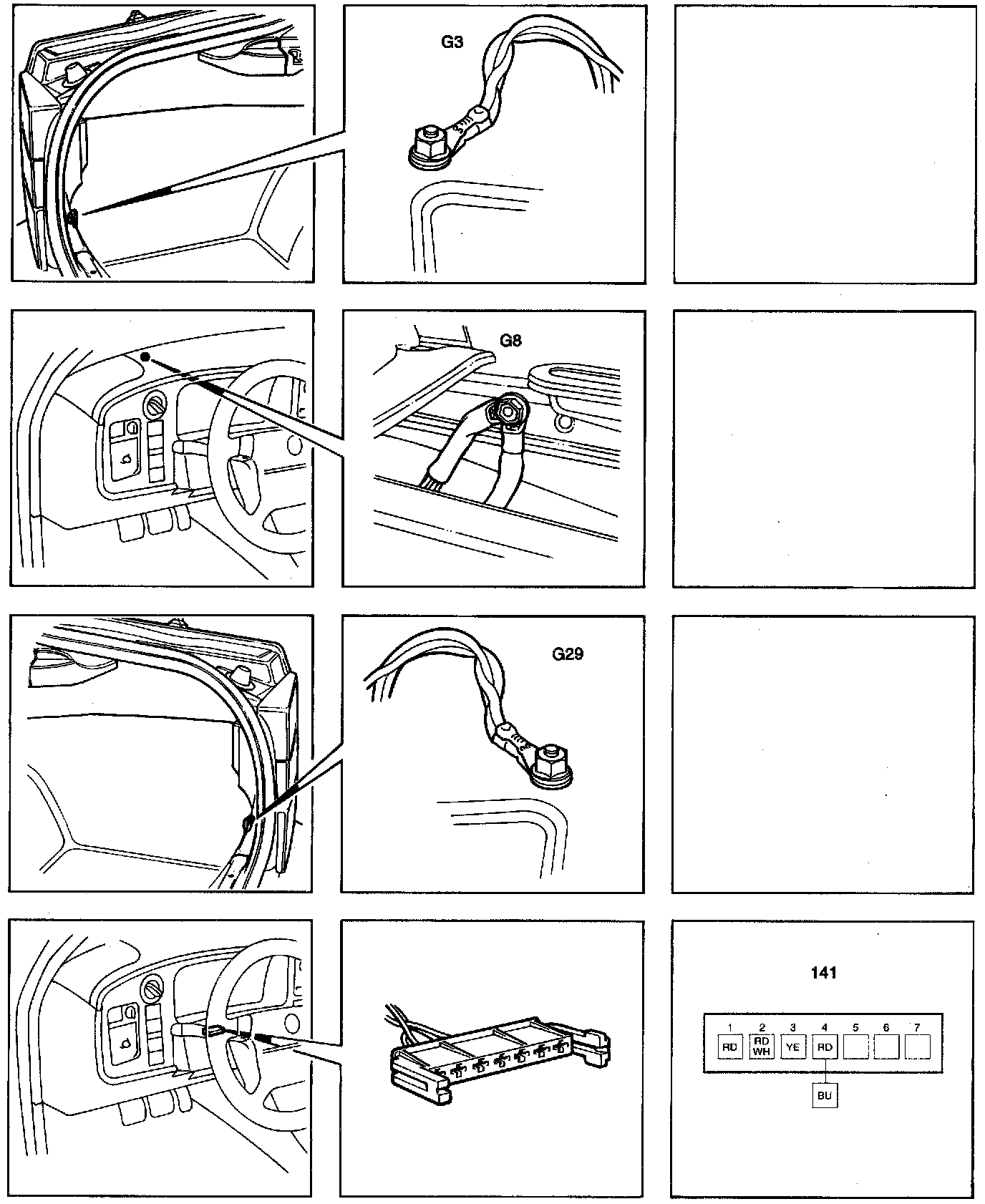

Connectors and Grounding Points (Part 1 Of 4):

Connectors and Grounding Points (Part 2 Of 4):

Connectors and Grounding Points (Part 3 Of 4):

Connectors and Grounding Points (Part 4 Of 4):

Locations of components
22A Fuse holder in the dashboard
29 Brake lights switch on the pedal assembly
30 Brake light bulbs, right-hand and left- hand rear light clusters
47U CRUISE indicator lamp in the main instrument display
228A Filament monitor
133 Clutch switch, Cruise Control, on the clutch pedal
134 Brake pedal switch, on the brake pedal
141 Cruise Control switch, on the lights stalk, on the left-hand side of the steering column
239 Selector lever position sensor, under the selector lever
430 TRIONIC control module, in the cabin, below the right-hand A pillar
132 Speedometer, in the main instrument display
507 TCS control module, under the left-hand front seat
508 Cruise Control system control module, on a bracket in the engine bay
H10-1 10-pin connector, mounted on a bracket behind the battery in the engine bay
H10-3 10-pin connector, mounted on a bracket behind the battery in the engine bay
H3-20 3-pin connector, behind the main instrument display adjacent to the speedometer (ME)
H70-1 70-pin connector, in the false bulkhead space
H3-26 3-pin connector, above the pedal assembly adjacent to the pedal switches
G3 Grounding point, luggage compartment
G8 Grounding point, dashboard
G2 Grounding point, battery tray
G29 Grounding point, right-hand rear light cluster
