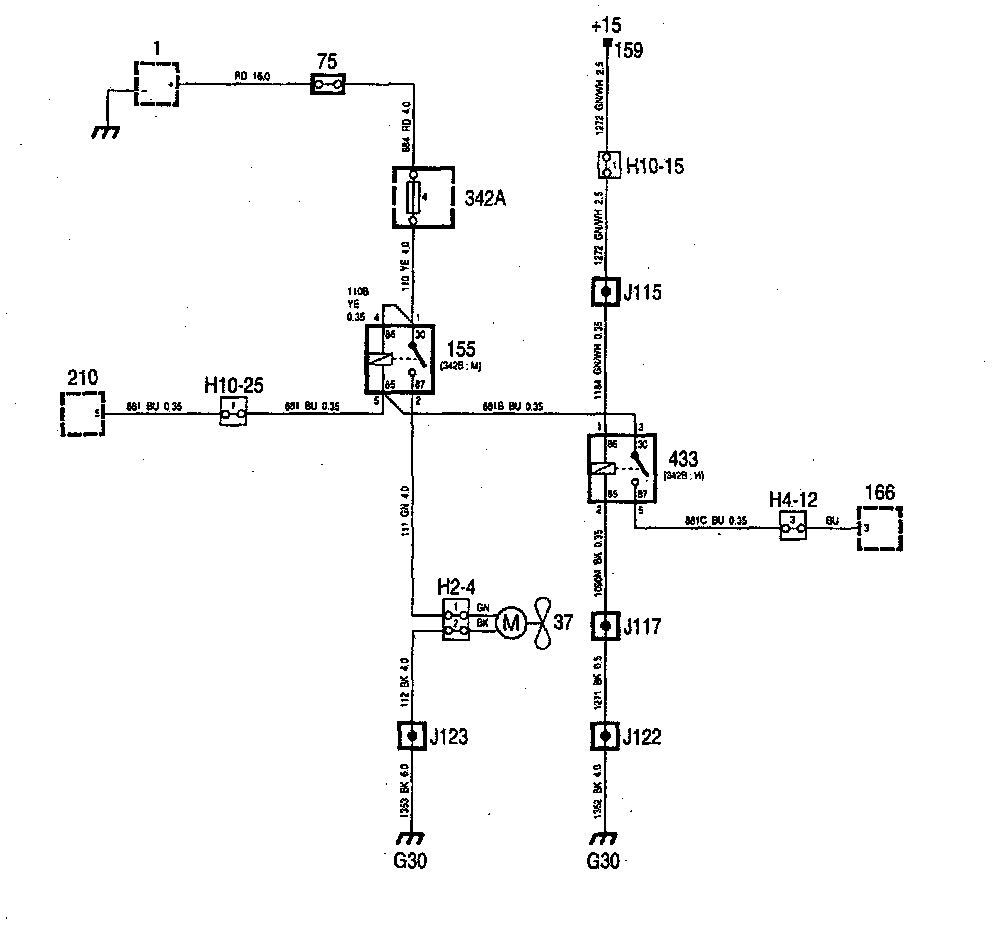

Radiator Cooling Fan Motor

1 Battery
20 Ignition switch
26 Time-delay relay for the radiator fan
37 Radiator fan motor
75 Distribution block
81 Relay for 2-speed radiator fan
155 Relay for the radiator fan
166 Pressure switch for the radiator fan (AC and ACC)
342A Fuse board
366 Motor for 2-speed radiator fan on the left-hand side
367 Resistor
370 Temperature switch
371 Temperature switch
G2 Earthing point
G25 Earthing point
H2-4 at the radiator fan motor
H3-4 at the radiator fan motor
H4-1 4at the temperature switch
H4-12 at the pressure switch for the radiator fan
