Hazard Warning Flasher

��3XDirection Indicators, Hazard Flashers:

WIRING DIAGRAM

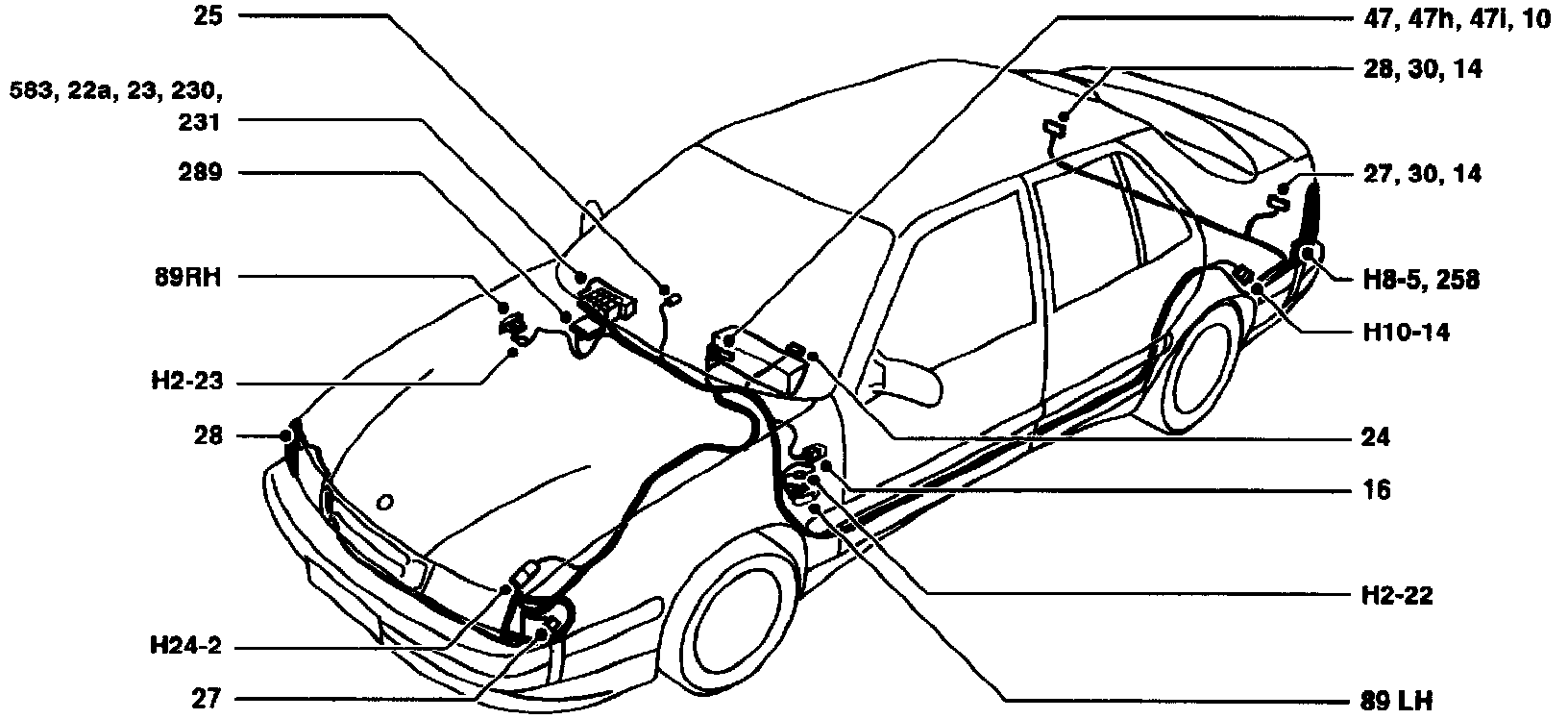

Direction Indicators, Hazard Flashers: Component Location:

COMPONENT LOCATION VIEW

Direction Indicators, Hazard Flashers: Component ID:

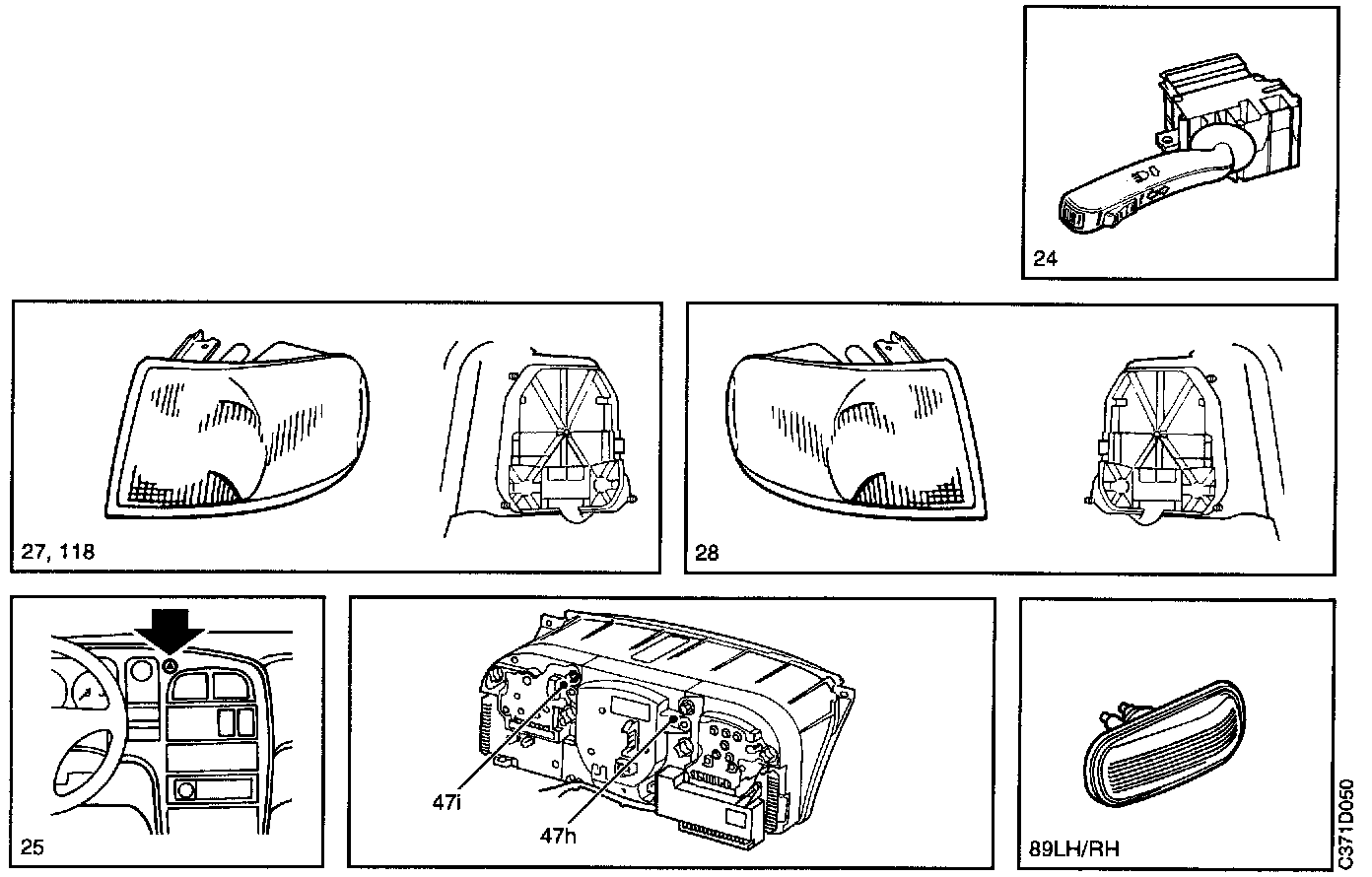

COMPONENT ID
14 Rear lights in the rear light clusters.
16 Rheostat, lighting for instruments and controls, on dashboard between the steering wheel and driver's door.
22a Fuse board behind the access panel in the glove box.
23 Flasher relay in main fuse box behind the glove box.
24 Direction indicator stalk switch on the left-hand side of the steering column.
25 Switch, hazard flashers, on dashboard by the centre air vent.
27 Direction indicator lamps, left-hand side, in front and rear light clusters.
28 Direction indicator lamps, right-hand side, in front and rear light clusters.
30 Brake lights in rear light clusters.
32 Reversing light bulbs
CD: in rear light clusters.
CS: in tailgate light fitting.

In The Main Instrument Display Panel
47h Direction indicator repeater lamp, left-hand
47i Direction indicator repeater lamp, right-hand
89LH Side direction indicators, left, on the left-hand front wing.
89RH Side direction indicators, right, on the right-hand front wing.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
258 (H8-5) Connection for trailer lighting, in luggage compartment below the left-hand rear light cluster.
289 Control module, anti-theft alarm, on the right-hand side under the dashboard behind the knee shield.

2-Pin Connectors
H2-22 Beside the left-hand side direction indicator lamp (green contact).
H2-23 Beside the right-hand side direction indicator light (green contact).

10-Pin Connector
H10-14 In the luggage compartment on the left-hand side adjacent to the filament monitor.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G3 Grounding point, luggage compartment, left-hand side, under the left-hand rear light cluster.
G6 Grounding point, negative distribution terminal, in main fuse box behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G29 Grounding point, luggage compartment, on the right-hand side by the right-hand rear light cluster.
G30 Grounding point, left-hand structural member, behind the left-hand headlamp.
G31 Grounding point, right-hand structural member, behind the right-hand headlamp.

DESCRIPTION OF OPERATION
Direction Indicators
Current is supplied to the direction indicator stalk switch via fuse 12 and then to flasher relay 23.

Current is supplied to terminal 30 of flasher relay 23 via fuse 22.

Current pulses then go from the flasher relay to the left-hand and right-hand direction indicator lamps.

In stalk switch positions L1 and R1 , the left-hand and right-hand direction indicator lamps respectively are connected as long as the stalk switch is held in the appropriate position. In positions L2 and R2, connection takes place in the same way except that disconnection is automatic when the steering wheel returns to the straight ahead position.

The two indicator lamps 47h (left-hand side) and 47i (right-hand side) are connected in parallel with the relevant direction indicator lamps on the outside of the car.

Direction indicator lamps on a trailer, if any, are supplied with current via connector 258 (H8-5).

The car is also equipped with side direction indicator lamps 89LH (left) and 89RH (right).

The direction indicator bulbs are duplicated in the rear lights. If one bulb fails, the other bulb still continues to work but the flasher relay will start to work faster.

Hazard Flashers
Current is supplied to terminal 30 of flasher relay 23 via fuse 22.

When hazard flasher switch 25 is activated, terminal B2 of flasher relay 23 will be connected to ground.

Current pulses then go from the flasher relay to the left-hand and right-hand direction indicator lamps, the two indicator lamps 47H and 47, and to side direction indicator lamps 89LH and 89RH, which then start flashing.

When the switch is activated, the indicator lamp in the switch also lights up.

Direction indicators/hazard flashers on a trailer are supplied with current via connector 258 (H8-5).

FAULT DIAGNOSIS HINTS
Direction Indicators
The car 5 direction indicators are operative only when the ignition switch is in the Drive position.
1. Check that fuses 12 and 22 are intact and supplied with current.
2. Check that terminal 5 of direction indicator stalk switch 24 is supplied with current.
3. Check that current is supplied to terminals 49R and 49L of the flasher relay when the stalk switch is activated to turn on the left-hand and right-hand direction indicators
4. Also check that the bulbs are intact and supplied with current.
5. Check the connectors, wiring harness and ground connections.

Hazard Flashers
The hazard flashers are always supplied with current via flasher relay 23.
1. Check that fuse 22 is intact and supplied with current.
2. Check that current is supplied to terminal 30 of flasher relay 23.
3. Activate the switch and check that terminal B2 of flasher relay 23 is connected to ground.
4. Check that the light bulbs are OK and supplied with current.
5. Check the connectors, wiring harness and ground connections.
