Vanity Lamp
��YReading Lamps And Illuminated Vanity Mirrors:

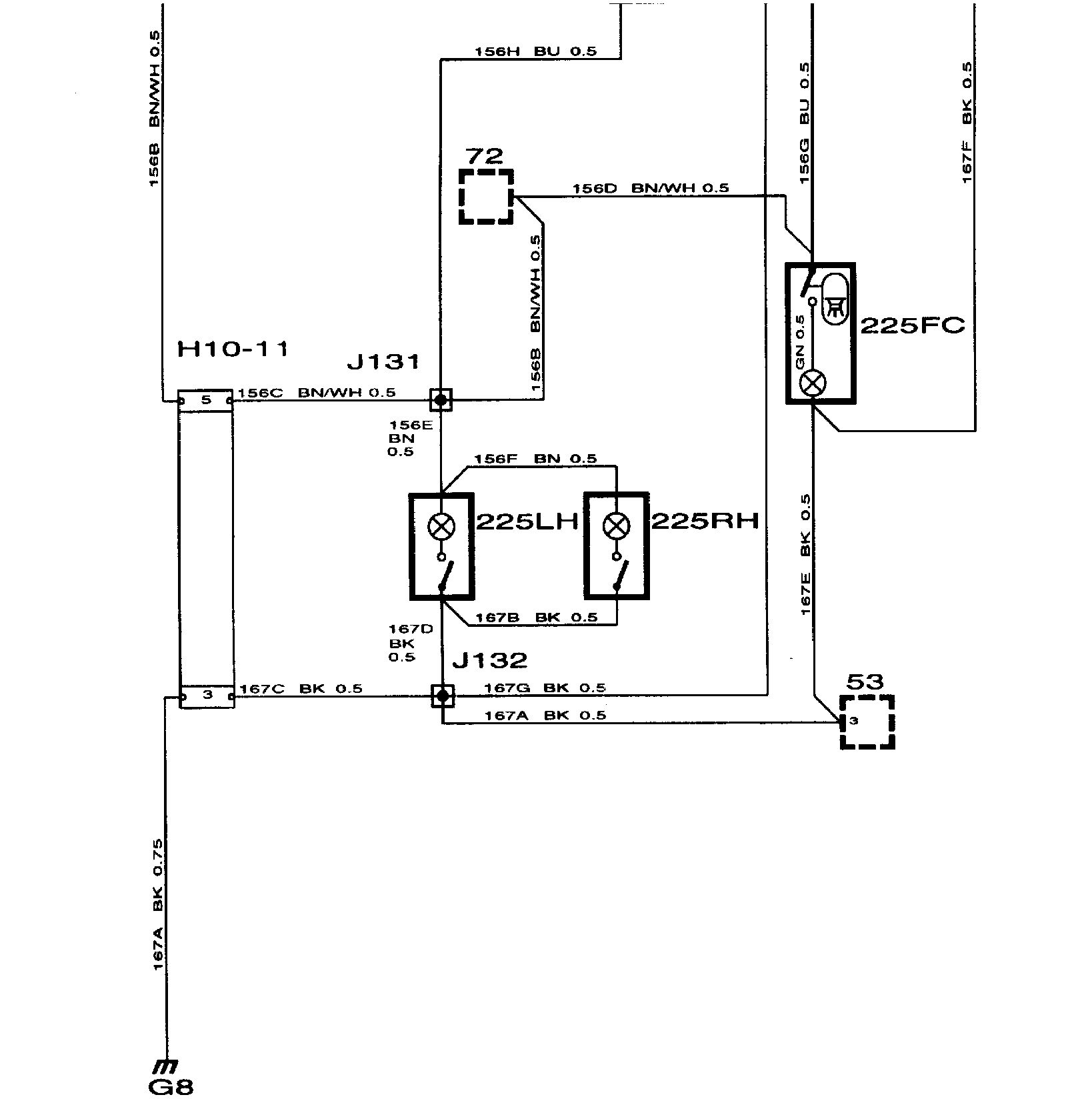

WIRING DIAGRAM
Reading Lamps And Illuminated Vanity Mirrors: Component Location:

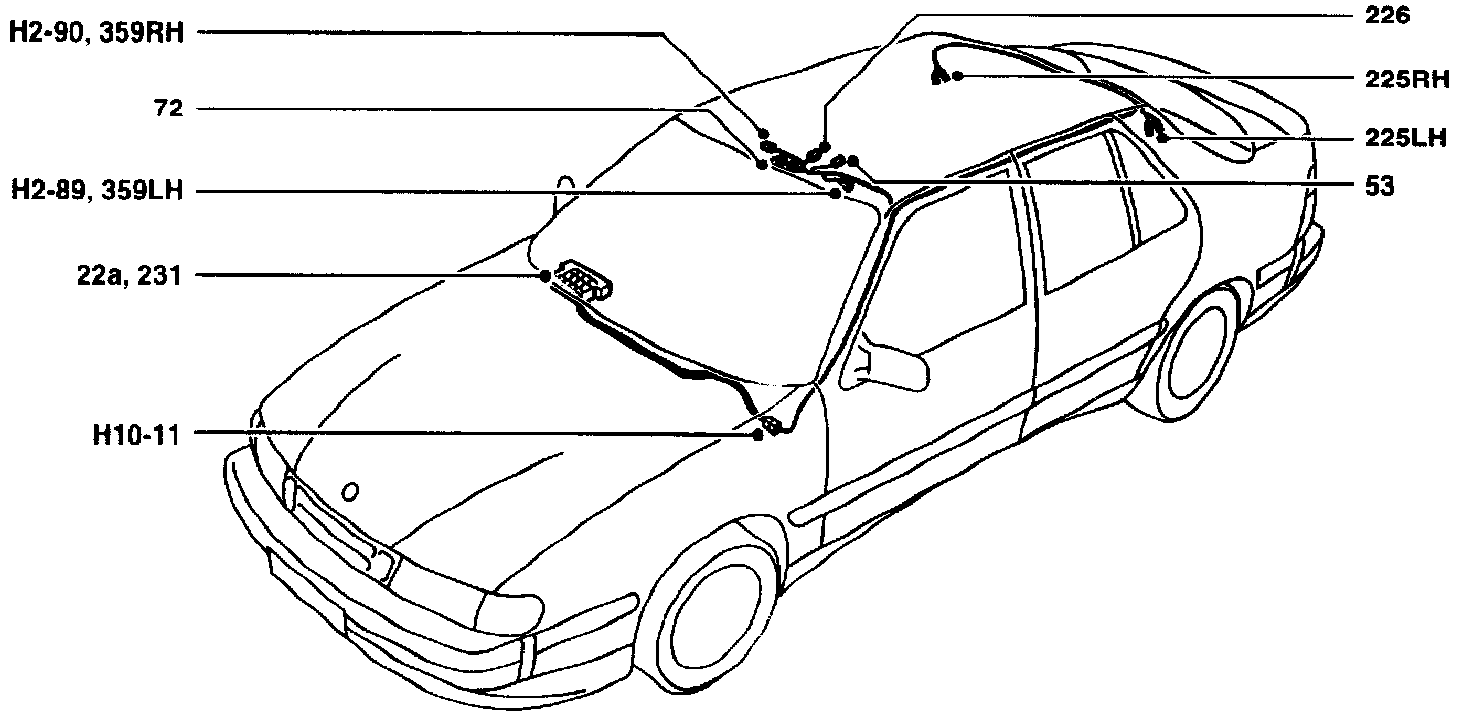

COMPONENT LOCATION VIEW
Reading Lamps And Illuminated Vanity Mirrors: Component ID:

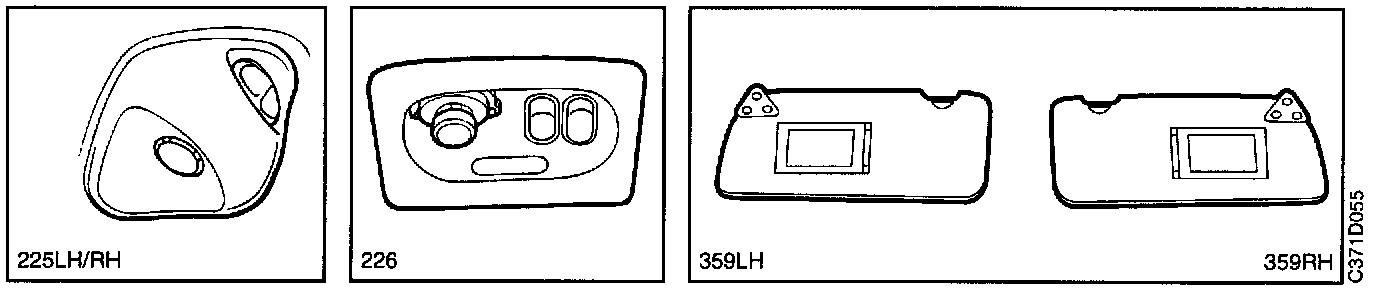

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
53 Switch, interior lighting, in centre console by the gear lever.
72 Seat-belt warning lamp, in roof console above the interior rear-view mirror.
225FC Passenger reading lamp, in the roof console beside the interior rear-view mirror.
225RL Reading lamp, in left-hand C pillar.
225RR Reading lamp, in right-hand C pillar.
231 Distnbution terminal (+54 circuit), in main fuse box behind the glove box.
359LH Lighting, vanity mirror, in left-hand sun visor.
359RH Lighting, vanity mirror, in right-hand sun visor.
2-Pin Connectors
H2-89 In the roof console beside the left-hand sun visor.
H2-80 In the roof console beside the right-hand sun visor.
10-Pin Connector
H10-11 On the far left under the dashboard, behind the knee shield.
Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
DESCRIPTION OF OPERATION
Reading Lamps
Reading lamps for the rear seat passengers are provided in both C pillars. For the front seat passenger, a reading lamp is located in the roof console beside the interior rear-view mirror.
Of spotlight type, the lamps are switched on and off by means of a switch beside each lamp.
Current is supplied via fuse 3 to lamp 225FC and on to lamps 225RL and 225RR.
Lighting For Vanity Mirrors
Cars for certain markets are equipped with lighting for the vanity mirrors in the car's sun visors
Current is supplied via fuse 3 to lamps 359LH and 359RH. The lamps are turned on and off by means of their built-in switches.
FAULT DIAGNOSIS HINTS
Reading Lamps
1. Inspect fuse 3 and check that it is supplied with current.
2. Check the switches on each lamp.
3. Check the connectors, wiring harness and ground connections.
Lighting For Vanity Mirrors
1. Inspect fuse 3 and check that it is supplied with current.
2. Check the switches on each lamp.
3. Check the connectors, wiring harness. and ground connections.
