System Diagram

��DElectrically Adjustable Door Mirrors, LHD:

WIRING DIAGRAM

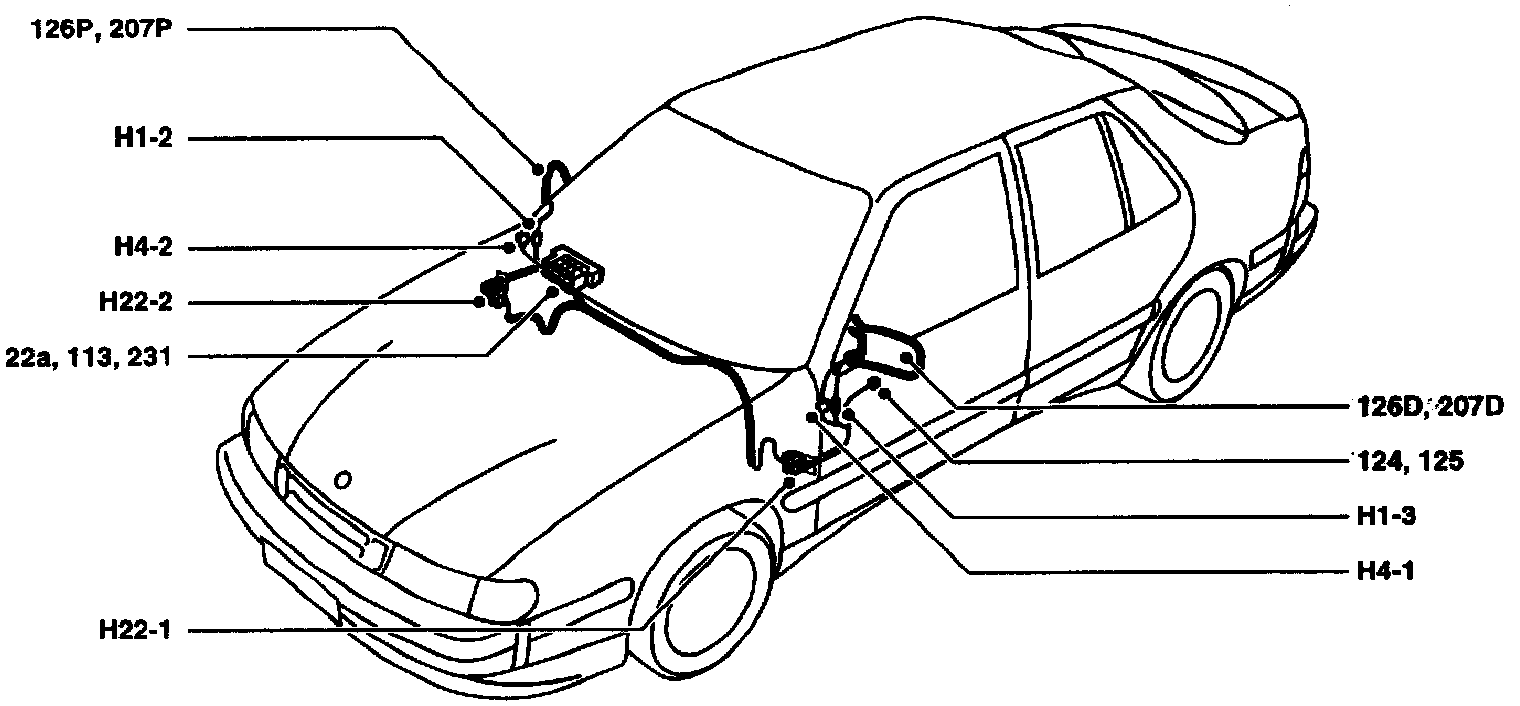

Electrically Adjustable Door Mirrors: Component Location:

COMPONENT LOCATION VIEW

Electrically Adjustable Door Mirrors: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
113 Relay/time-delay relay, electrically heated rear window, in main fuse box behind the glove box.
124 Switch, electrically adjustable door mirror, on the driver's door.
125 Left-right selector switch for the electrically adjustable door mirrors, on the driver's door.
126D Motor, electrically adjustable door mirror, driver's door.
126P Motor, electrically adjustable door mirror, passenger's door.
207D Heating element in driver's door mirror.
207P Heating element in passenger's door mirror.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.

1-Pin Connectors
H1-2 In the passenger's door, below the door mirror.
H1-3 In the driver's door, below the door mirror.

4-Pin Connectors
H4-1 In the driver's door, below the door mirror.
H4-2 In the passenger's door, below the door mirror.

22-Pin Connectors
H22-1 Behind the cable entry in the left-hand A pillar.
H22-2 Behind the cable entry in the right- hand A pillar.

Grounding Points
G6 Grounding point, negative distribution terminal, in main fuse box 22B behind the glove box.
G8 Grounding point, dashboard, beside the front left-hand loudspeaker socket.

DESCRIPTION OF OPERATION
The door mirrors are operated by means of a four-position switch and a selector on the driver's door.

Current is supplied from fuse 2 to terminal 3 of operating switch 124 which has four positions. Using selector 125, you can choose which of the two door mirrors, left or right, is to be adjusted with switch 124.

Electrically Adjustable Door Mirrors:

Check in the above image that the switch connections are supplied with current and grounded in each position.

FAULT DIAGNOSIS HINTS
The door mirrors will be operative when the ignition switch is in the Drive position.
1. Inspect fuse 2 and check that it is supplied with current.
2. Check the voltage applied to terminal 3 of switch 124.
3. Check that current is supplied to motors 126D and 126P by activating switch 124.
4. Check the connectors, wiring harness and ground connections.
