Oil Pressure Warning Lamp/Indicator

Y�HPictogram-Filament Monitor With Memory Oil Pressure Warning Lamp:

WIRING DIAGRAM

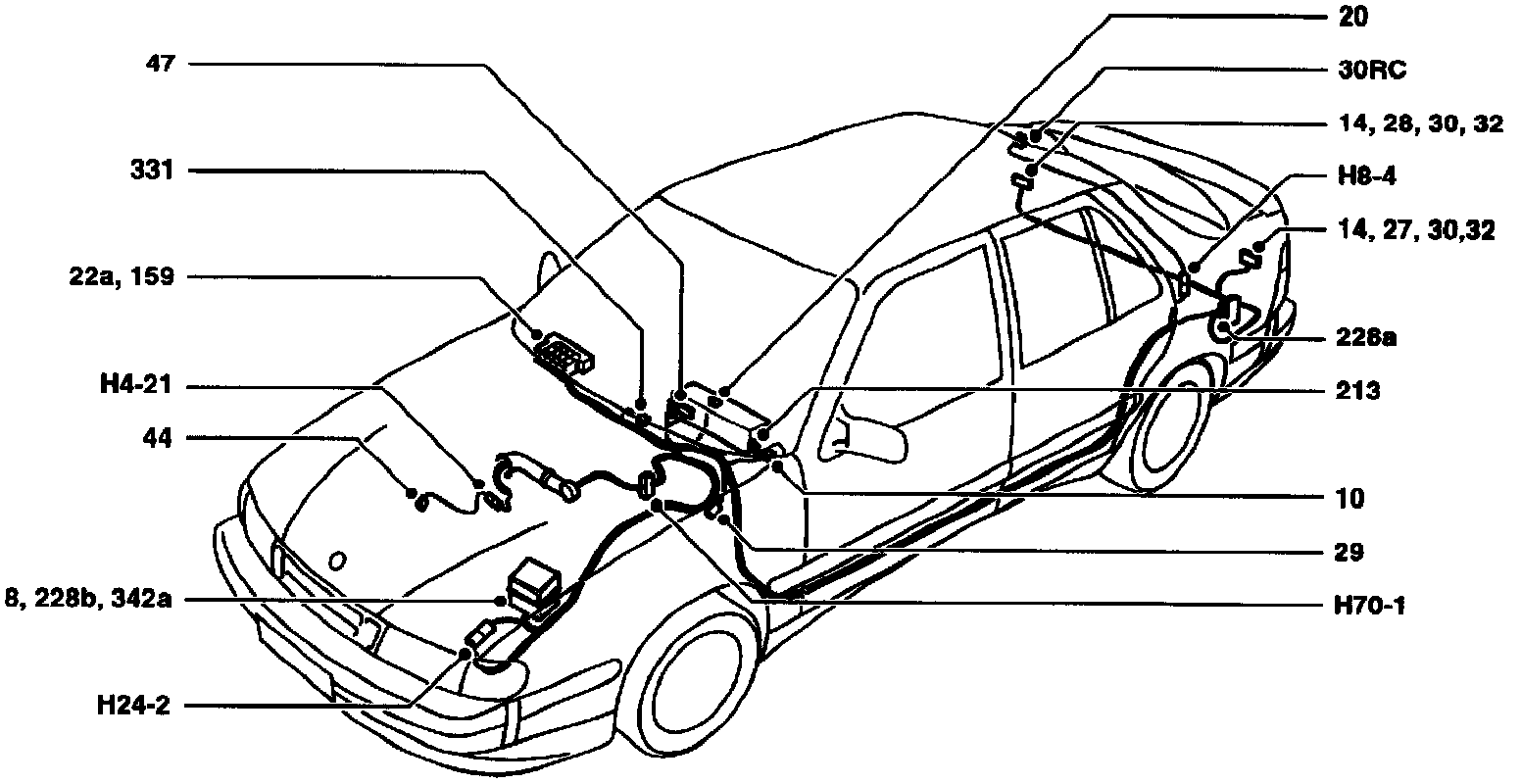

Pictogram-Filament Monitor, Oil Pressure Warning Lamp: Component Location:

COMPONENT LOCATION VIEW

Pictogram-Filament Monitor, Oil Pressure Warning Lamp: Component ID:

COMPONENT ID
8 Lighting relay, in main fuse box in front of the battery.
10 Lights switch on dashboard between steering wheel and driver's door.
11 Main beam, LH and RH headlamps.
12 Dipped beam, LH and RH headlamps.
14 Rear lights in the rear light clusters.
20 Ignition switch, on the right-hand side of the steering column
22a Main fuse board behind the access panel in the glove box.
27 Direction indicator lamps, left-hand side, in front and rear light clusters.
28 Direction indicator lamps, right-hand side, in front and rear light clusters.
29 Brake light switch beside the brake pedal.
30 Brake lights, in each rear light cluster.
30RC High-level brake light
CD: in rear window.
CS: on tailgate.
32 Rear light bulbs
CD: in rear light clusters
CS: in tailgate light fitting.
44 Oil pressure sensor 2.0 I, T: on upper part of oil filter housing to the right at the rear of the engine. 2.3 I, T: on the engine block at front of engine.

In Pictogram 213
47d Oil pressure warning lamp
47t SRS warning lamp
159 Distribution terminal (+15 circuit), in main fuse box behind the glove box.

In Pictogram 213
213a Central warning lamp
213b Indication, rear lights
213c Indication, front lights
213h (47d) Oil pressure warning lamp
213i (47t) SRS warning lamp
228a Filament monitor, rear lamps, in luggage compartment on the left-hand side.
228b Filament monitor, front lamps, in main fuse box in front of the battery.
331 SRS control module, in front part of the centre console under the dashboard.
342a Fuse board in main fuse box in front of battery.

4-Pin Connector
H4-21 Beside the generator (V6).

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G3 Grounding point, luggage compartment, beside the left-hand rear light cluster.
G5 Grounding point, under the rear seat on the left.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G29 Luggage compartment grounding point, right-hand, beside the right-hand rear light cluster.
G30 Grounding point, on left-hand structural member behind the left-hand headlamp.
G31 Grounding point, on the right-hand structural member behind the right- hand headlamp.

DESCRIPTION OF OPERATION
Certain parts of the car's lighting system are monitored by two filament monitors, 228a and 228b, and pictogram 213.

The five lamps f, g, d, e and j in the pictogram are covered individually in the Pictogram - Door Indication.

Filament Monitors
Filament monitor 228b monitors headlamp main and dipped beams and filament monitor 228a monitors rear lights and brake lights.

Filament monitor 228b incorporates relays which act on the pictogram and light lamp c if a failure occurs while filament monitor 228a incorporates shunt resistors which act on the pictogram and light lamp b if a failure occurs.

The lamp in the centre, a (central warning lamp), lights up the car's outline on the pictogram and always comes on when a failure is detected.

When ignition switch 20 is in the Drive position, current is supplied to pictogram terminal 5.

Front Filament Monitor 228b
If there is a fault in any lighting circuit, an imbalance arises and the relay is activated. Terminal C2 in the filament monitor and lamps C and A (central warning lamp) in the pictogram are grounded and the lamps light up.

Rear Filament Monitor 228a
The filament monitor senses if the current to one of the lamps is incorrect. Terminal C1 in the filament monitor and lamps b and a (central warning lamp) in the pictogram are grounded and the lamps light up.

The filament monitor incorporates a circuit for monitoring brake lights switch 29 and the high-level brake light, refer to Brake Lights.

Oil Pressure Warning Lamp 47d
The oil pressure warning lamp shows the driver if the engine oil pressure drops too low.

If the oil pressure drops below 0.3-0.5 bar, the oil pressure sensor closes and lamp 47d lights up.

The pictogram's central warning lamp is also grounded and the pictogram lights up.

Airbag Warning Lamp 47t
The airbag warning lamp shows the driver if there is a fault in the airbag system.

Testing The Indicator And Warning Lamps
When the ignition switch is turned to the Drive position, current is supplied to the lamps that are to be tested (terminal 5 on the pictogram).

When the ignition switch is then turned to the Test position, which is situated between the Drive and Start positions, positive current continues to be supplied to the lamps at the same time as they are grounded in that connections C and C1 of the ignition switch are connected to each other.

The following lamps in the pictogram are connected in circuit during the test:
^ Central warning lamp a
^ Lamp c for front lighting
^ Lamp b for rear lighting
^ Oil pressure warning lamp h/47d

FAULT DIAGNOSIS HINTS
The indicator lamps in pictogram 213 are activated by turning ignition switch 20 to the Drive position.
1. Check that current is supplied to terminal 5 of the pictogram.
2. Check the pictogram bulbs. Do this with the ignition switch in the Test position.
3. Check that terminal 1 of filament monitor 228a is supplied with current in the Drive position.
4. With the ignition switch in the Drive position, disconnect and ground the oil pressure sensor cable. If the lamp lights up, the circuit is OK.
5. Check the connectors, wiring harness and ground connections.

When changing the filament monitor, check against the spare parts catalogue that it is replaced with the correct variant for the market in question.
