Operation CHARM: Car repair manuals for everyone.

Home >> Saab >> 1996 >> 9000 CSE V6-2962cc 3.0L DOHC (B308) >> Repair and Diagnosis >> Diagrams >> Splices >> J28 - J52

J28 - J52

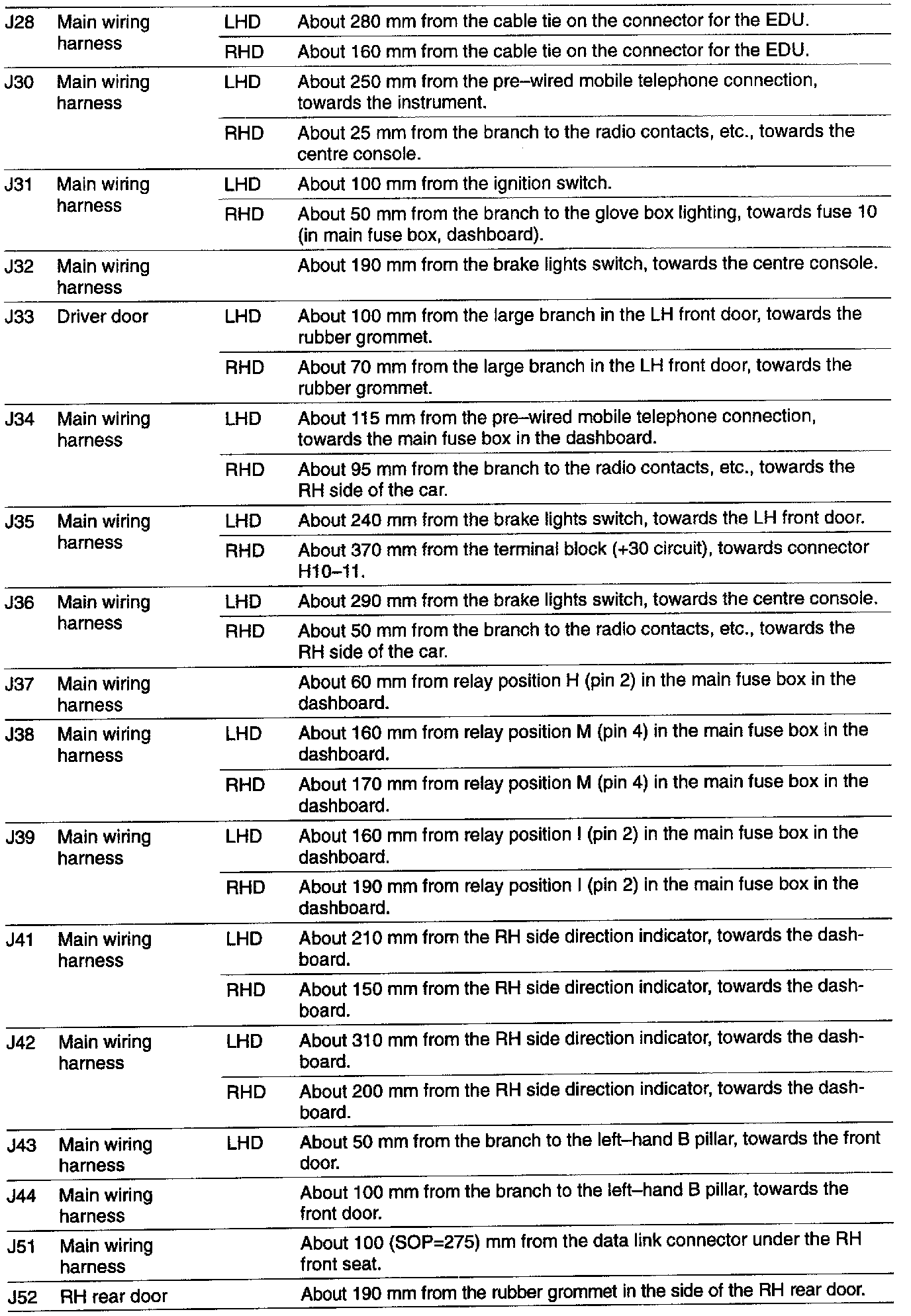

Crimped Connection Locations: J28 - J52:
