Cylinder Head Assembly: Testing and Inspection





CHECKING FLATNESS
1. Clean the cylinder head sealing surfaces.

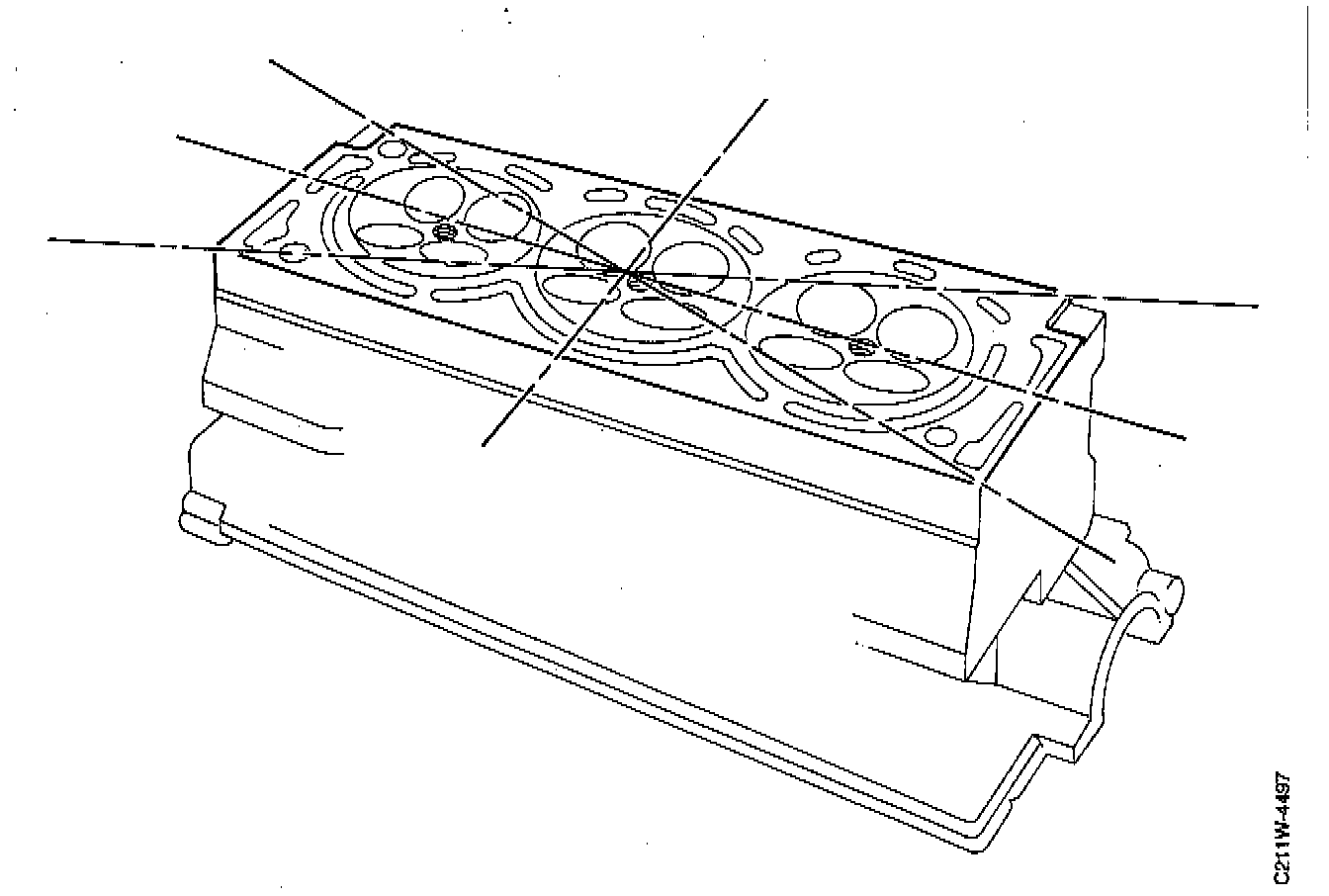

2. Using a straight-edge rule and a feeler gauge, measure the cylinder head across the length, width and diagonal to check distortion.
