Water Pump: Locations

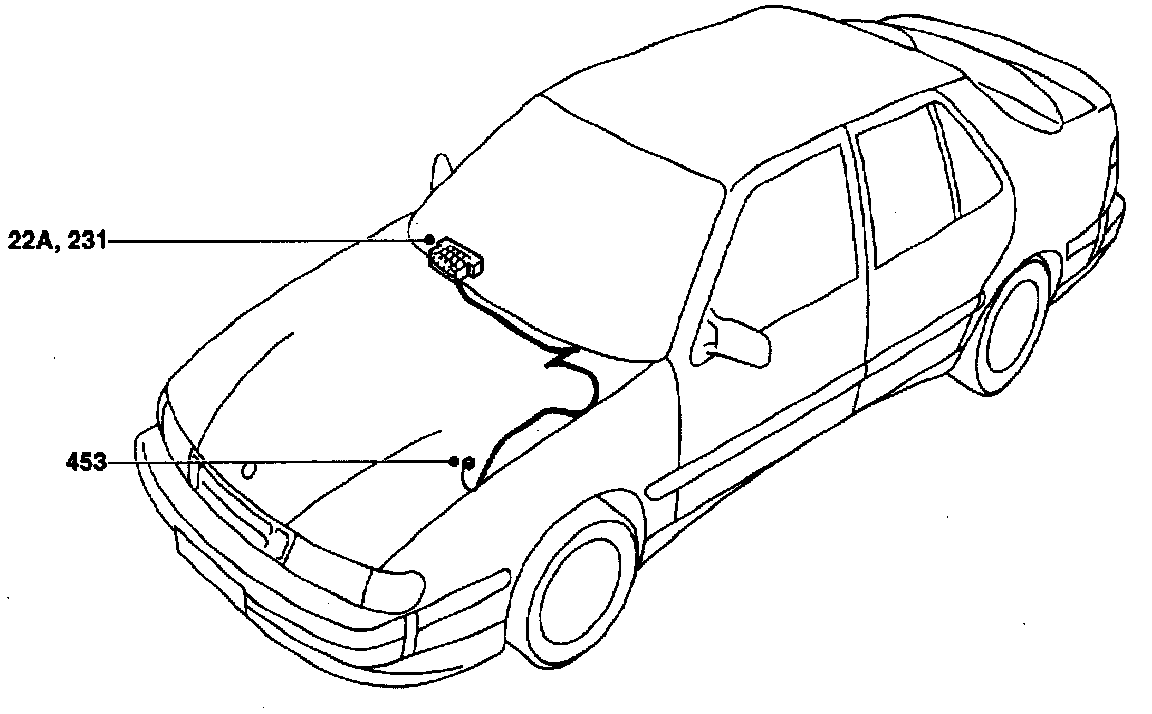

Circulation Pump: Component Location:

COMPONENT LOCATION VIEW

Circulation Pump: Component ID:

COMPONENT ID
22a Fuse board behind the access panel in the glove box.
231 Distribution terminal (+54 circuit) in main fuse box behind the glove box.

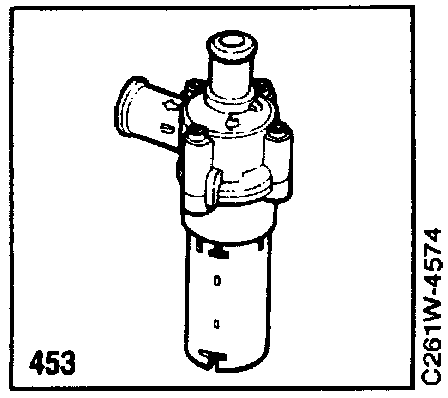

453 Circulation pump beside the battery tray.

Grounding Point
G2 Grounding point, battery tray, behind the battery on the left-hand wheel housing.
