Cruise Control Indicator Lamp: Description and Operation

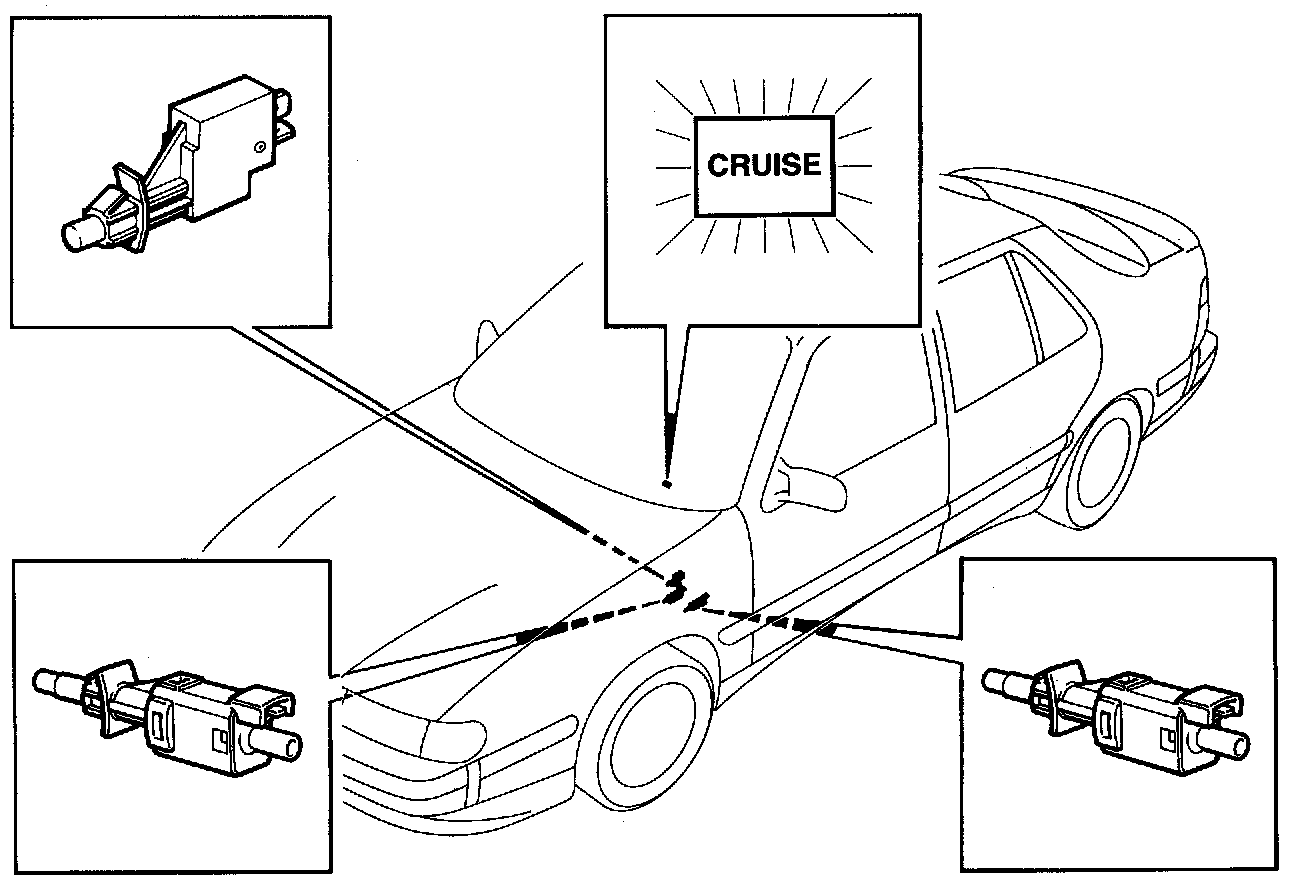

The main instrument display panel contains a CRUISE indicator lamp which lights up when the Cruise Control system is engaged.

This lamp is supplied with current from terminal H of the control module.

In the TIP position, however, the lamp goes out to indicate that the TIP position has been selected. The CRUISE lamp is also used in connection with fault diagnosis to provide information about the system, see the "Fault diagnosis". Testing and Inspection
