Dismantling the Main Instrument Display Panel

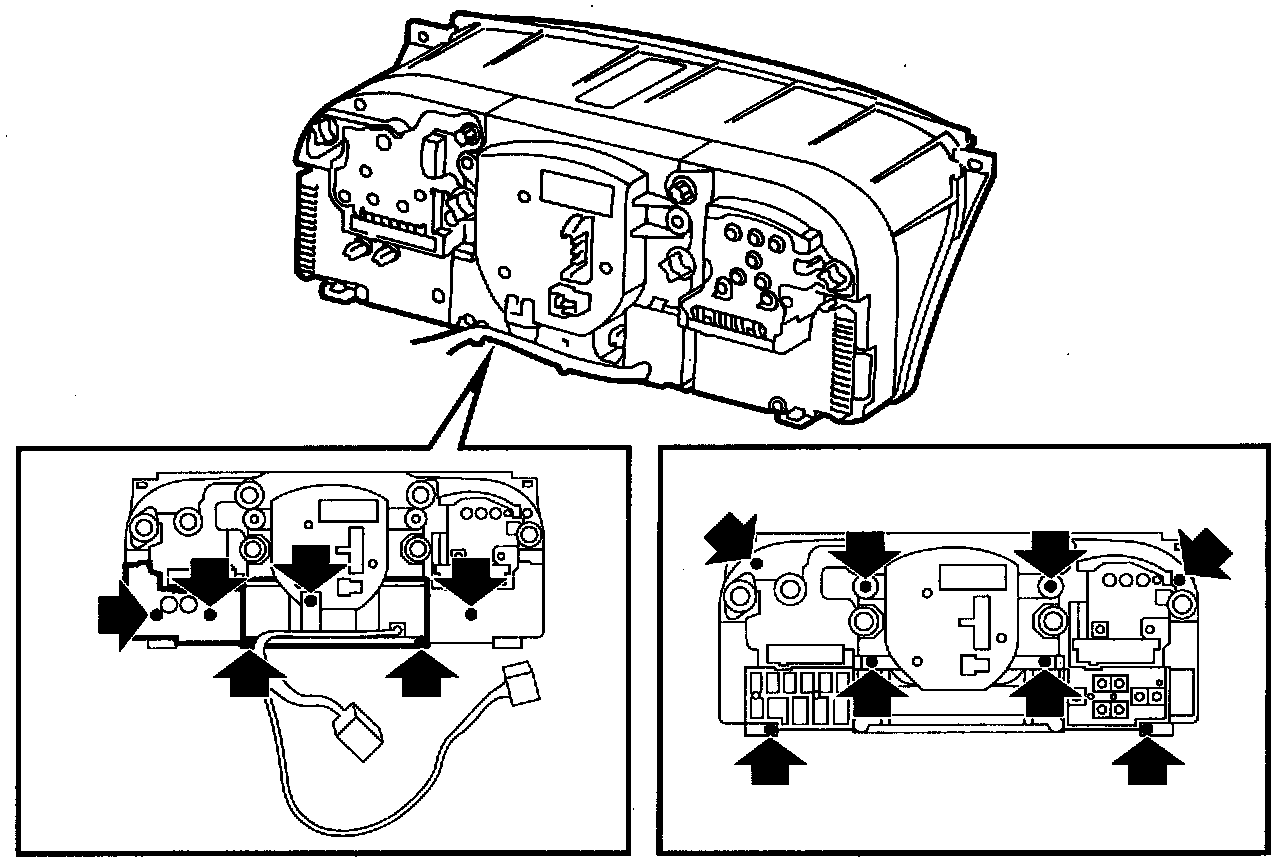

1 Remove the pictogram and warning panel circuit boards complete with bulb holders.
2 Remove the screws securing the electronic display and lift it away.
3 Remove the instrument display panel retaining screws.
4 Remove the speedometer. The other instruments can now be removed.
Assembly
Assemble in reverse order.

Important : Since the screws are of different lengths, be careful not to mix them up.
