Courtesy Lights

Courtesy Lights: Component Location:

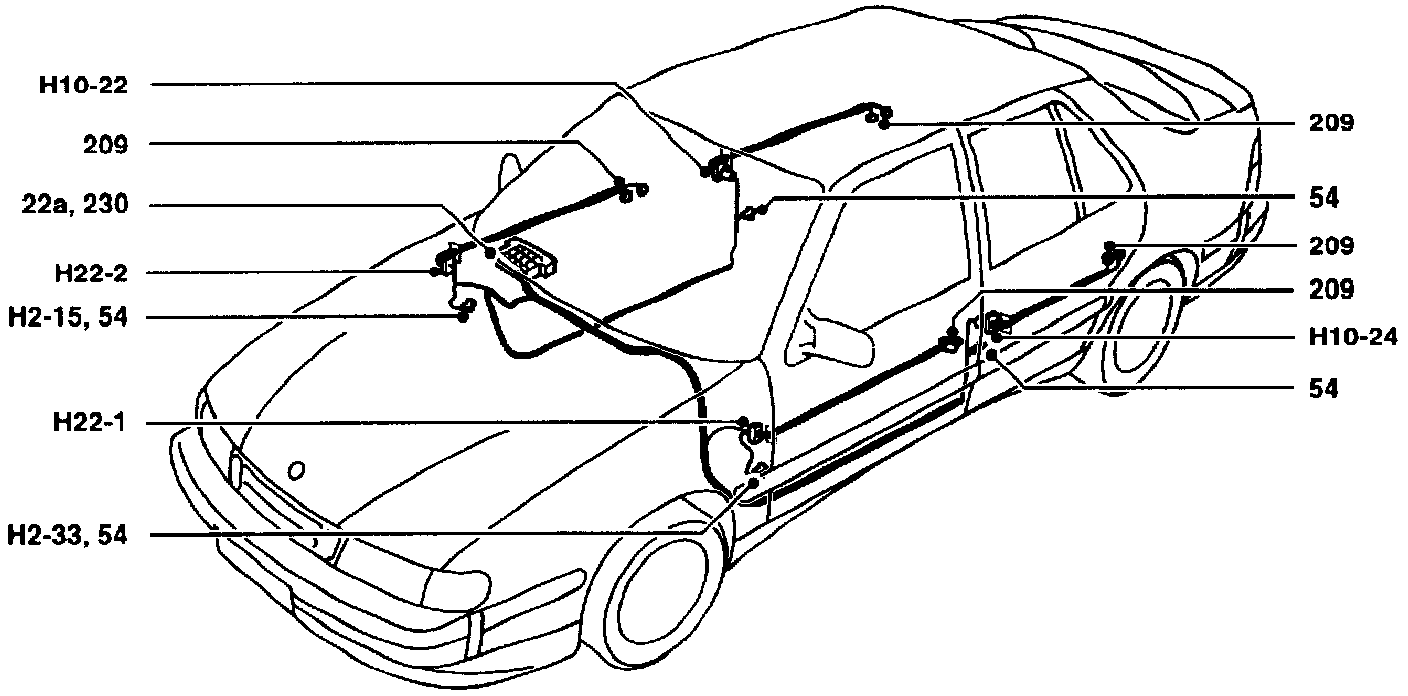

COMPONENT LOCATION VIEW

Courtesy Lights: Component ID:

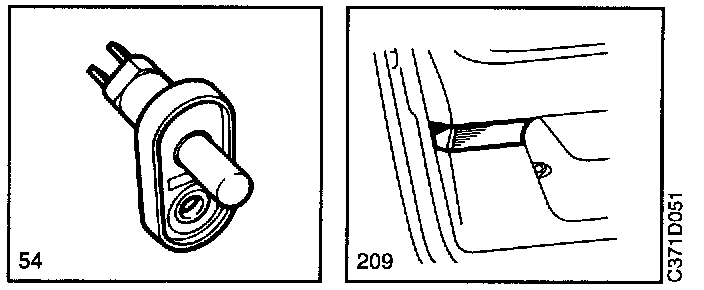

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
54D Door switch in driver's door pillar.
54P Door switch in passenger's door pillar.
54RL Door switch in left-hand rear door pillar.
54RR Door switch in right-hand rear door pillar.
209D Courtesy light in driver's door.
209P Courtesy light in passenger's door.
209RL Courtesy light in left-hand rear door.
209RR Courtesy light in right-hand rear door.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.

2-Pin Connectors
H2-15 In the right-hand A pillar
H2-33 In the left-hand A pillar.

10-Pin Connectors
H10-22 In the right-hand B pillar.
H10-24 In the left-hand B pillar.

22-Pin Connectors
H22-1 Behind the cable entry in the left-hand A pillar.
H22-2 Behind the cable entry in the right-hand A pillar.
