Interior Lighting

Interior Lighting: Component Location:

COMPONENT LOCATION VIEW

Interior Lighting: Component ID:

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.

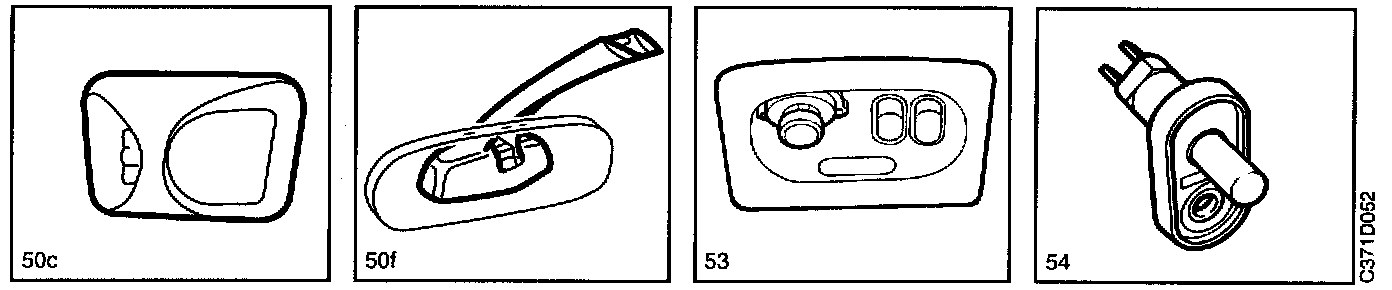

50C Roof lamp, centre.
510F Front roof lamp.
53 Switch, interior lighting, in centre console by the gear lever.
54D Door switch in driver's door pillar.
54P Door switch in passenger's door pillar.
54RL Door switch in left-hand rear door pillar.
54RR Door switch in right-hand rear door pillar.
82 Relay, seat-belt/key reminder, in main fuse box behind the glove box.
151 Time-delay relay, delayed interior lighting, in main fuse box behind the glove box.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
451 Glass breakage sensor in centre roof lamp.

2-Pin Connectors
H2-15 In the right-hand A pillar.
H2-24 Under the roof console beside the interior rear-view mirror.
H2-33 In the left-hand A pillar.

10-Pin Connector
H10-11 On the far left under the dashboard, behind the knee shield.

Grounding Points
G6 Grounding point, negative distribution terminal, in the main fuse box (22B) behind the glove box.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
