Luggage Compartment Light

Luggage Compartment Light: Component Location:

COMPONENT LOCATION VIEW

Luggage Compartment Light: Component ID:

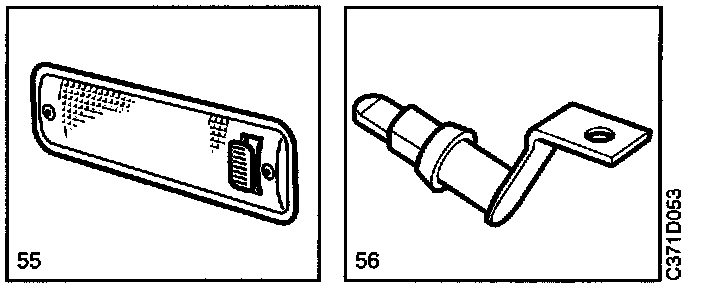

COMPONENT ID
22a Main fuse board behind the access panel in the glove box.
55 Luggage compartment lamp, on the right-hand side in the luggage compartment.
56 Luggage compartment lighting switch, on the tailgate.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.

2-Pin Connector
H2-62 In the tailgate on the left-hand side.

6-Pin Connector
H6-4 In the tailgate on the left-hand side adjacent to the rear window.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

10-Pin Connector
H10-14 In the luggage compartment on the left-hand side, adjacent to the filament monitor

Grounding Points
G5 Grounding point, rear seat, left-hand side.
