Rear Fog Lights

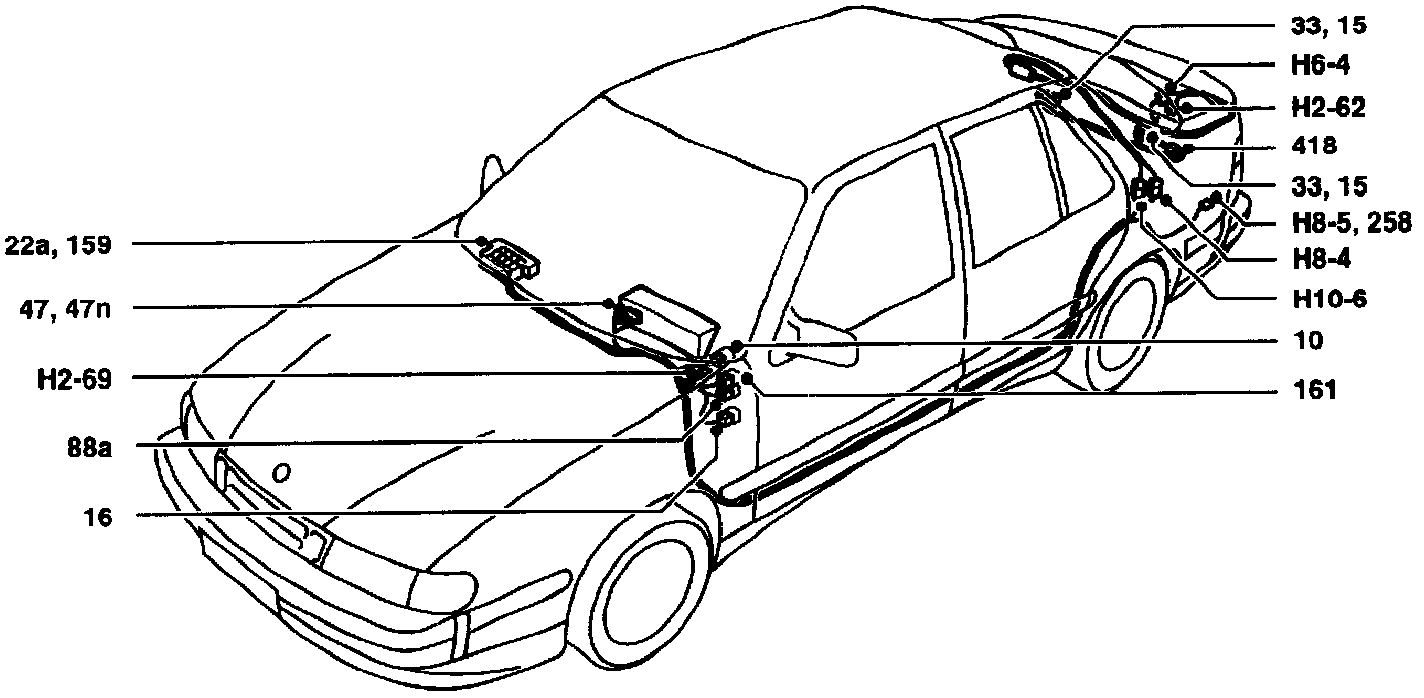

Rear Fog Lights: Component Location:

COMPONENT LOCATION VIEW

Rear Fog Lights: Component ID:

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
15 Number plate lighting in the tailgate.
16 Rheostat, lighting for instruments and controls, on dashboard between the steering wheel and driver's door.
22a Fuse board behind the access panel in the glove box.
32 Reversing light bulbs CD: in the rear light clusters. CS: in the tailgate.
33 Rear fog light(s) CD: in the rear light clusters. CS: on the tailgate.
47n Indicator lamp, rear fog lights, in main instrument display panel.
88a Switch, extra fog lights, on dashboard between steering wheel and driver's door.
161 Switch, rear fog lights, on dashboard between the steering wheel and driver's door.
246 Relay, rear fog lights, in main fuse box behind the access panel in the glove box.
258 (H8-5) Connection for trailer lighting, in luggage compartment below the left-hand rear light cluster.
418 Rear light fitting, OS, on the tailgate.

2-Pin Connectors
H2-62 In the tailgate on the left-hand side.
H2-69 Behind the extra fog light switch.

6-Pin Connector
H6-4 In the tailgate on the left-hand side adjacent to the rear window.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.

10-Pin Connectors
H10-6 By the left-hand rear wheel housing.
H10-14 In the luggage compartment on the left-hand side, adjacent to the filament monitor.

Grounding Points
G5 Grounding point, rear seat, on left-hand side.
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
