Headlamps

Headlamps: Component Location:

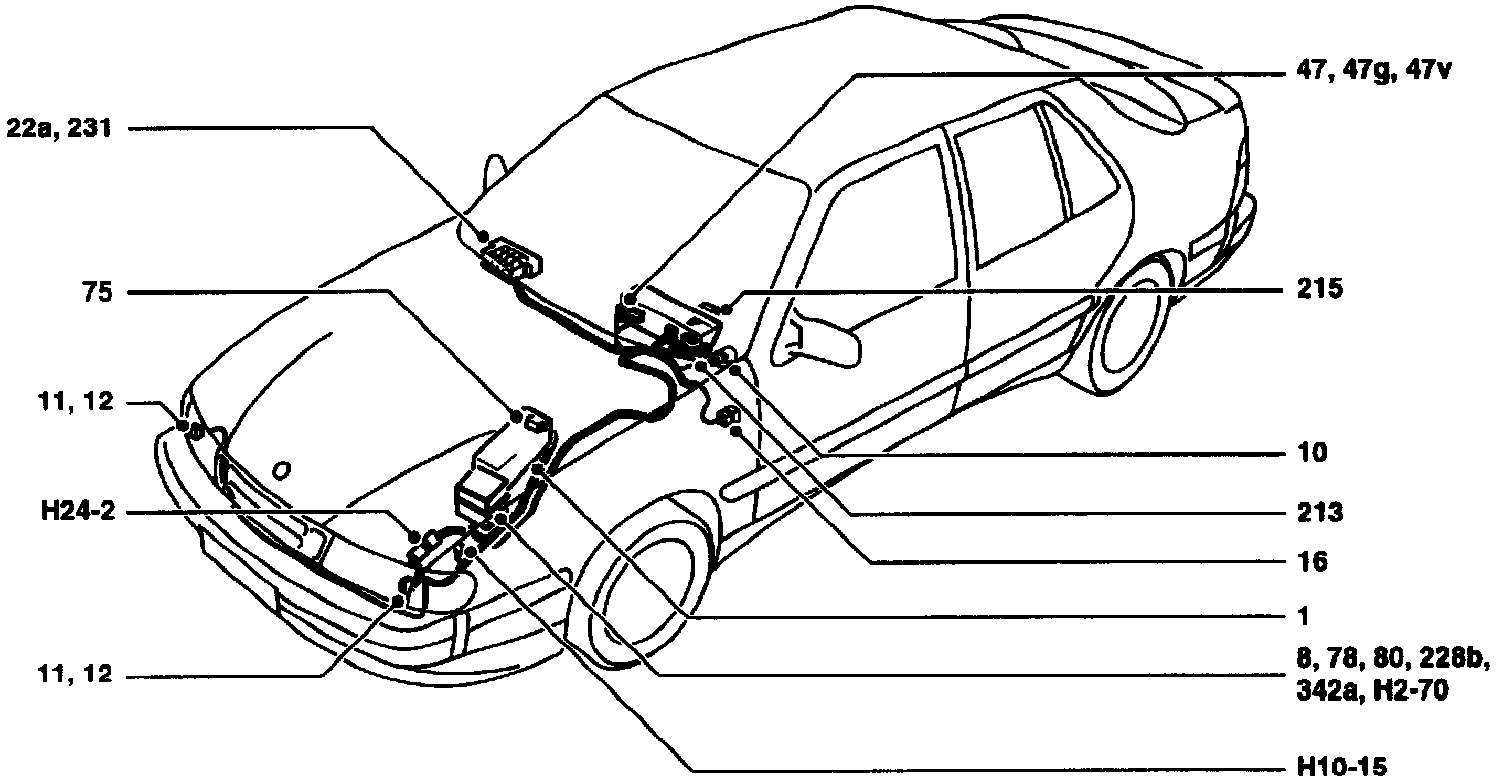

COMPONENT LOCATION VIEW

Headlamps: Component ID:

COMPONENT ID
1 Battery in the engine bay
8 Lighting relay, in main fuse box in front of the battery.
10 Lights switch on dashboard between steering wheel and driver's door.
11 Main beam, LH and RH headlamps.
12 Dipped beam, LH and RH headlamps.
16 Rheostat, lighting for instruments and controls, on dashboard between the steering wheel and driver's door,
22a Fuse board behind the access panel in the glove box.

In The Main Instrument Display Panel
47g Main beam indicator lamp
47v Lights-on indicator lamp
75 Distribution block, battery positive, on the battery tray.
78 Relay, dimmed dipped headlamps, in main fuse box in front of the battery.
213 Pictogram, in the main instrument display panel.
215 Dipswitch, on the left-hand side of the steering column.
228b Filament monitor, headlamps, in main fuse box in front of the battery.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
342a Fuse board in main fuse box in front of battery.

2-Pin Connector
H2-70 Beside the wiring harness, under front main fuse box 342.

10-Pin Connector
H10-16 Behind the left-hand headlamp.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G30 Grounding point, left-hand structural member, behind the left-hand headlamp.
G31 Grounding point, right-hand structural member, behind the right-hand headlamp.
