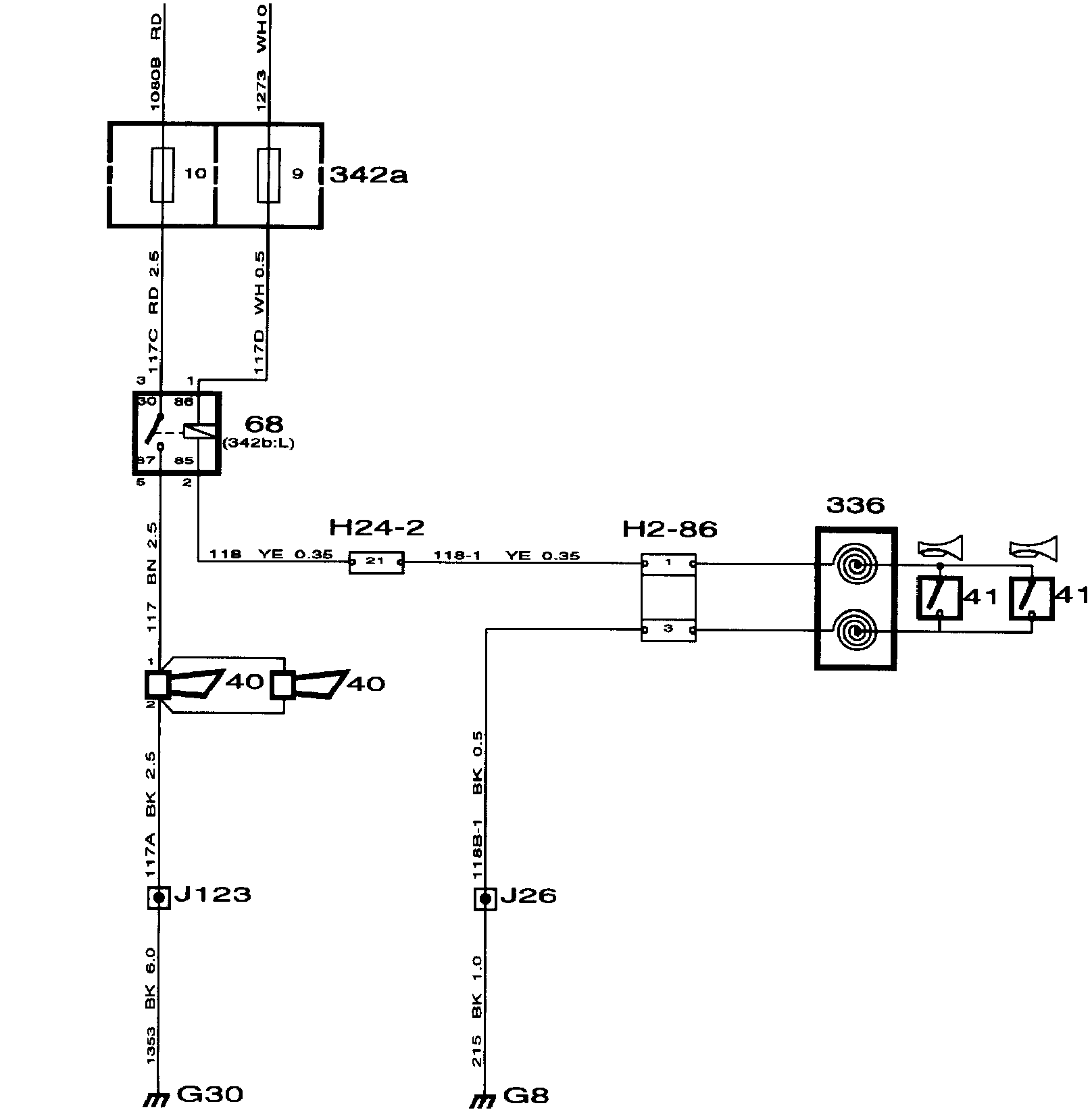

WIRING DIAGRAM

Horn: Component Location:

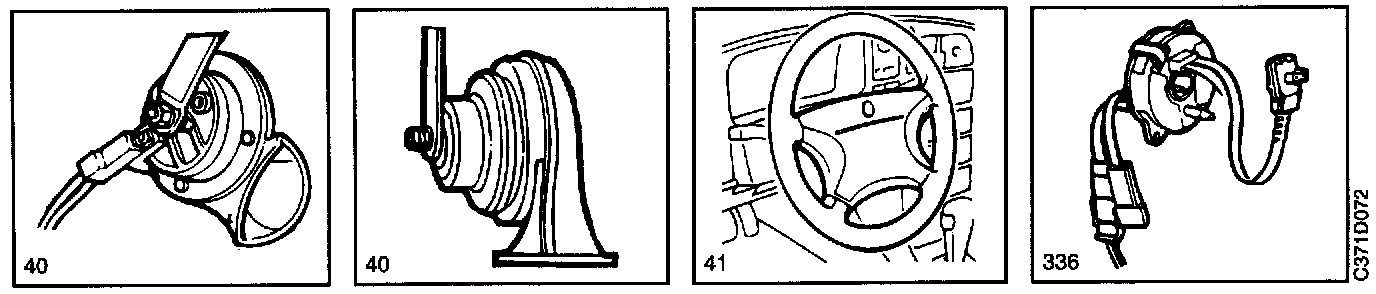

COMPONENT LOCATION VIEW

Horn: Component ID:

COMPONENT ID
1 Battery
40 Horns CD: one is located behind the front grille and one behind the bumper on the left-hand side. CS: one is located behind the bumper on the right-hand side and one behind the front grille.
41 Horn switch behind the steering wheel centre pad.
68 Horn relay, in main fuse box in front of the battery.
75 Distribution block, battery positive, on the battery tray.
231 Distribution terminal (+54 circuit), in main fuse box behind the glove box.
336 Slip ring contact (coil spring), airbag, on the steering gear under the steering wheel.
342a Main fuse box in the engine bay in front of the battery.

2-Pin Connector
H2-86 In the steering wheel, for the horn button.

10-Pin Connector
H10-15 Behind the left-hand headlamp.

24-Pin Connector
H24-2 Behind the left-hand headlamp.

Grounding Points
G8 Grounding point, dashboard, by the left-hand front loudspeaker socket.
G30 Grounding point, left-hand structural member, behind the left-hand headlamp.

DESCRIPTION OF OPERATION
The horn system includes two tuned horns of loud-tone type. One has a high pitch and the other a low pitch.

Positive current is supplied from fuse 9 in the main fuse box via the actuating coil in horn relay 68 to the horn switch on the steering wheel. When the horn switch is closed, the relay operates and horn 40 is supplied with current via fuse 10 and the relay contacts.

FAULT DIAGNOSIS HINTS
The horn is operative when the ignition switch is in the Drive position.
1. Check that fuses 9 and 10 are intact and supplied with current.
2. Ground pin 2 (85) of the relay to check that it is in working order. If it is the horn should sound.
3. Check the connectors, wiring harness and ground connections.
